Airbag Restraint System - Electrical Diagnostics
›
DTC Troubleshooting
›
Driver Airbag Squib Circuit
›
Notes
Driver Airbag Squib Circuit: Notes

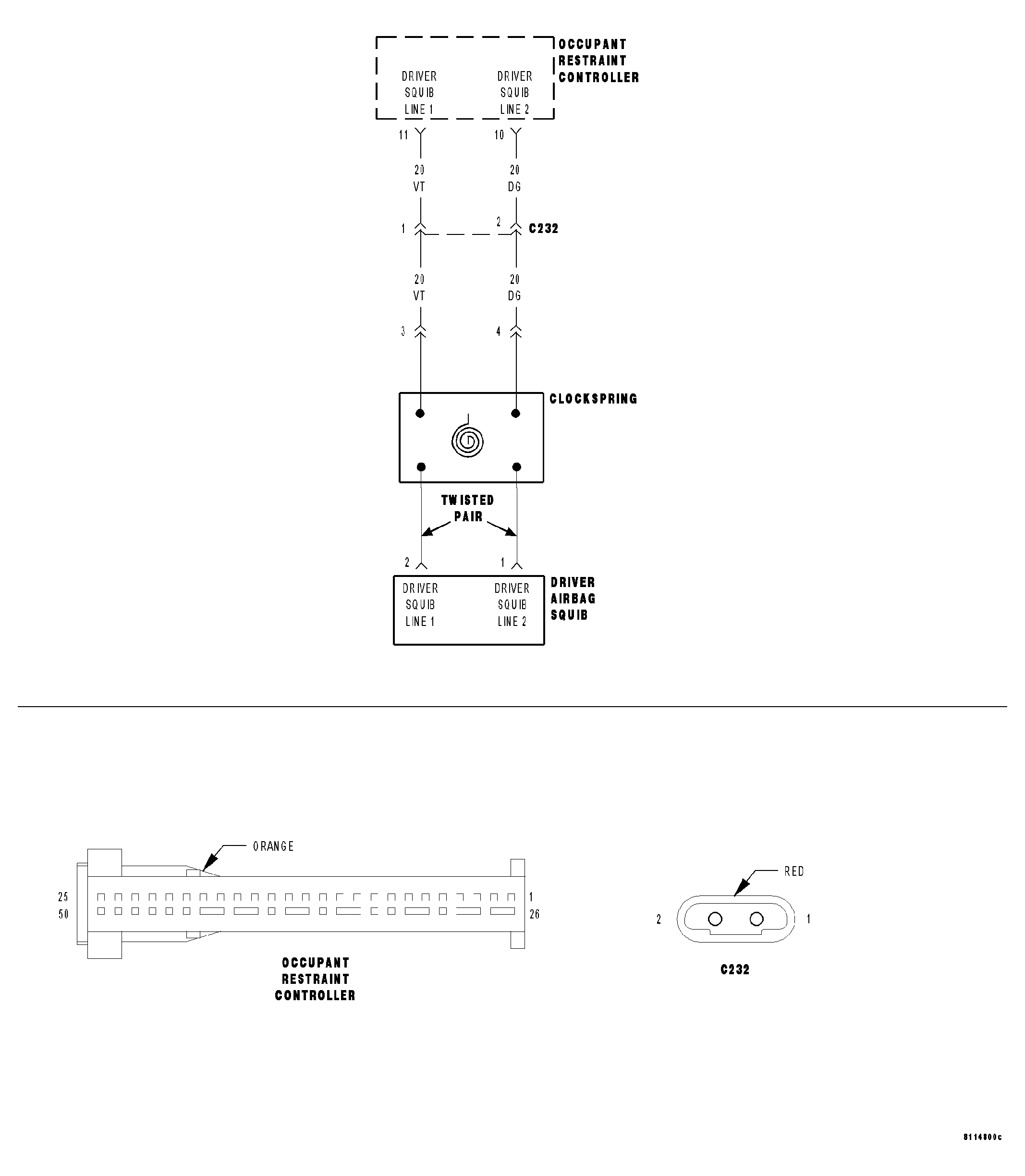

Fig 1: Driver Airbag Squib Circuit Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
