Driver Seat Belt Switch Circuit: Notes

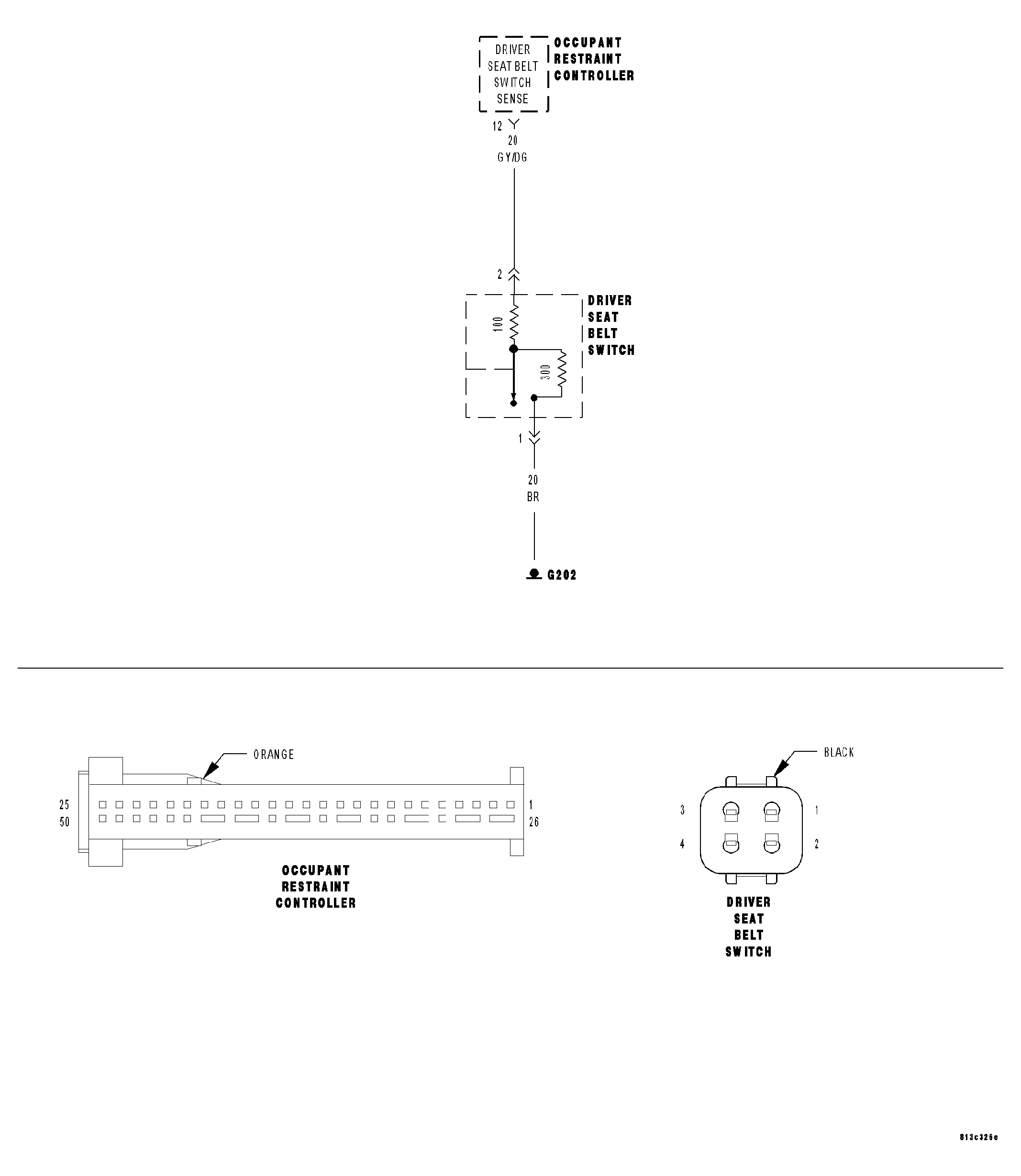

Fig 1: Driver Seat Belt Switch Circuit Diagram
GC0035639Courtesy of DAIMLERCHRYSLER CORP.
