Passenger Airbag On/Off Switch Signal Circuit: Notes

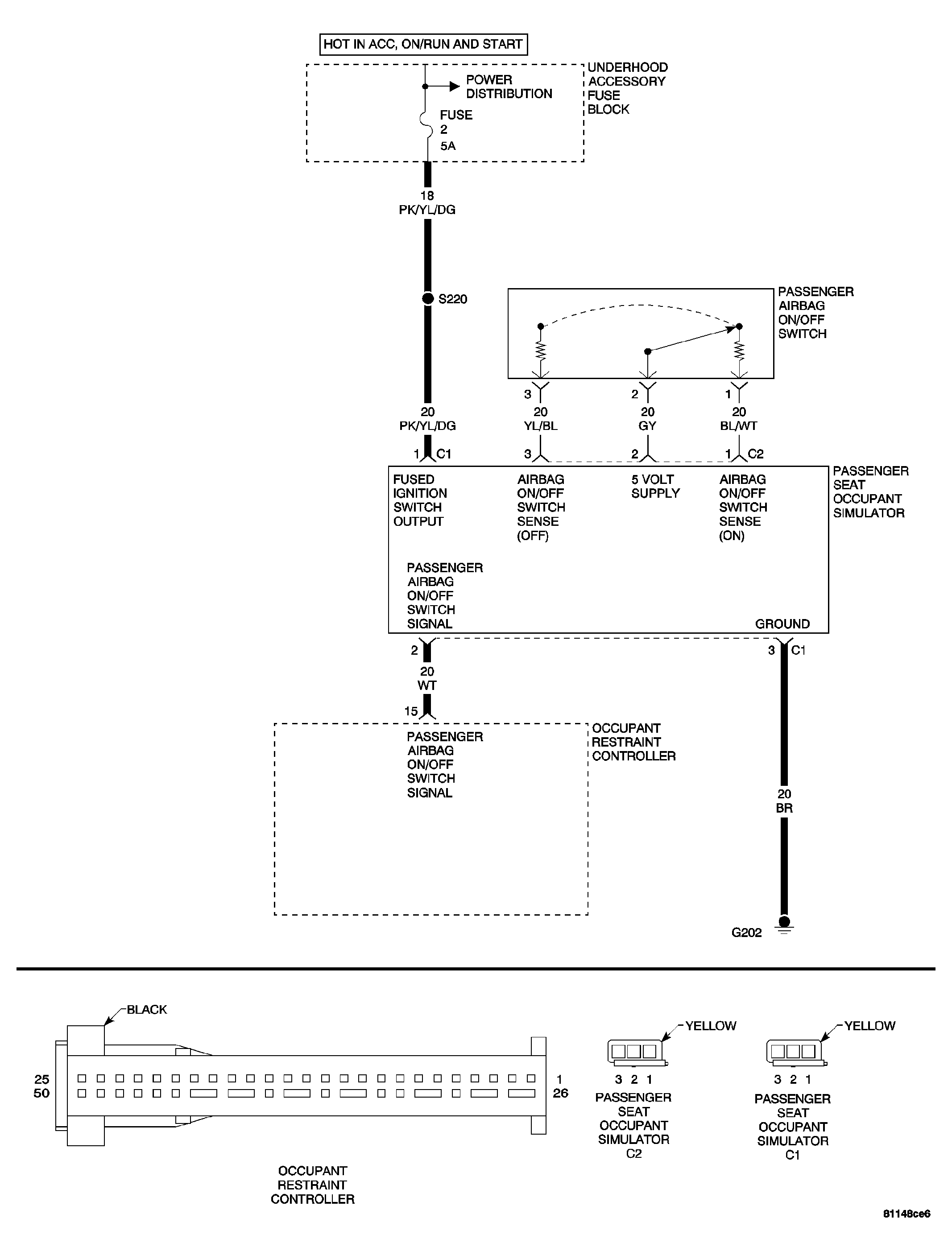

Fig 1: Passenger Airbag On/Off Switch Signal Circuit Diagram
GC0035630Courtesy of DAIMLERCHRYSLER CORP.
