Schematics And Diagrams

NOTE: For Figures 2 through 9 which are not included in this article, refer to SCHEMATICS AND DIAGRAMS .

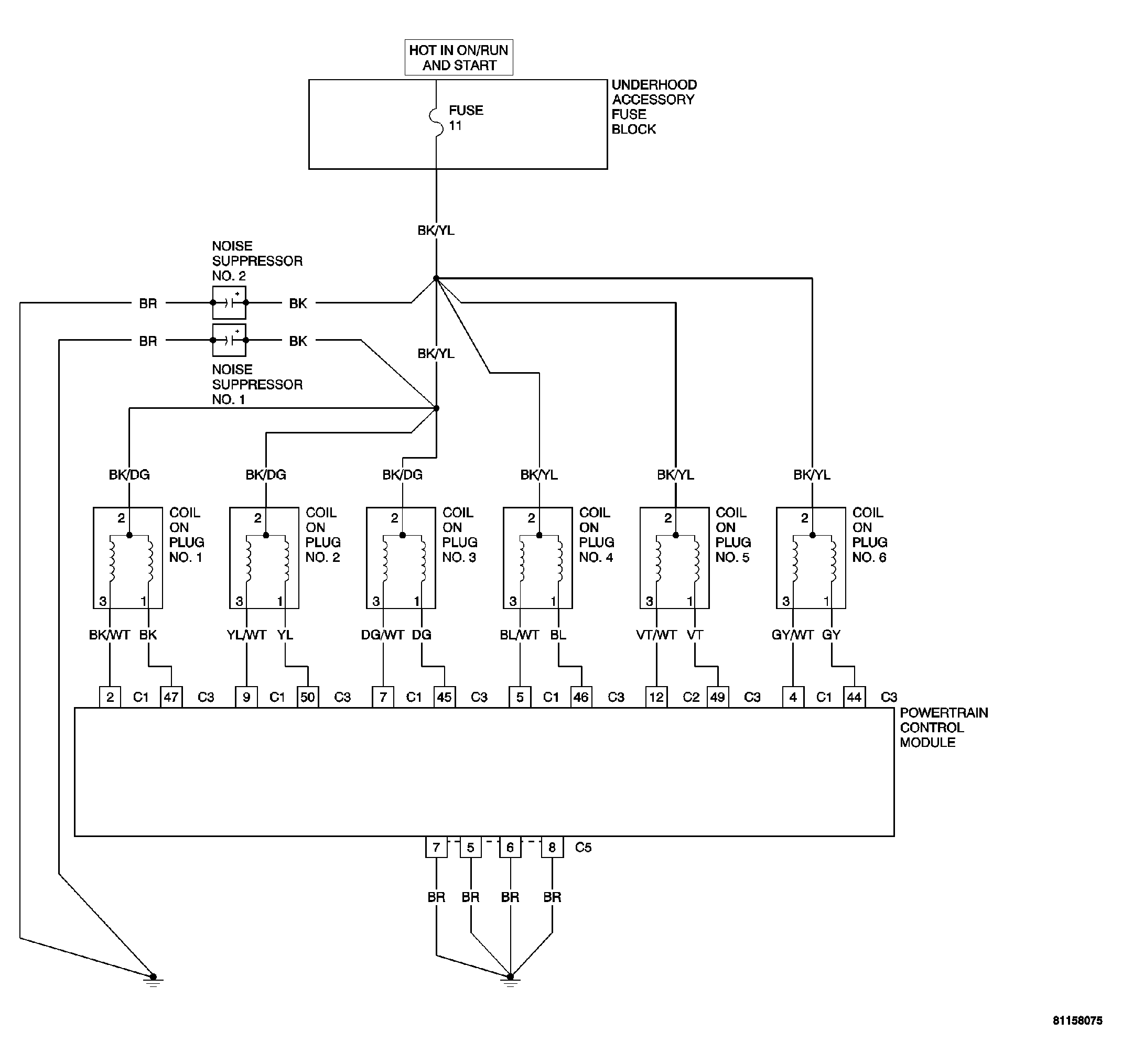

Fig 1: POWERTRAIN CONTROL MODULE (IGNITION SYSTEM) CIRCUIT DIAGRAM (1 OF 9)
GC0034023Courtesy of DAIMLERCHRYSLER CORP.
