Schematics And Diagrams

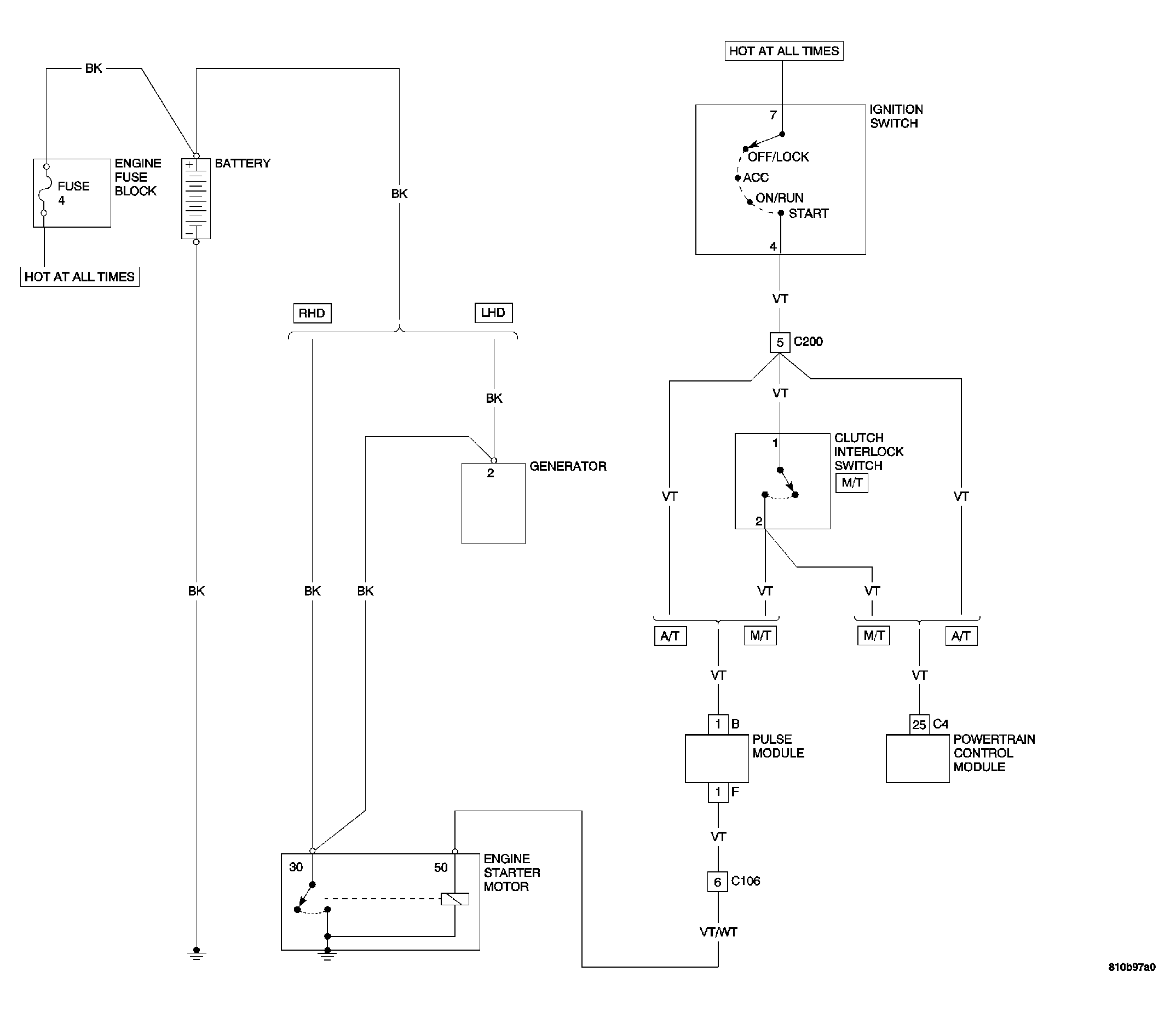

Fig 1: STARTING SYSTEM CIRCUIT DIAGRAM
GC0034881Courtesy of DAIMLERCHRYSLER CORP.
