Remote Keyless Entry Module - Black 26 Way
Remote Keyless Entry Module - Black 26 Way

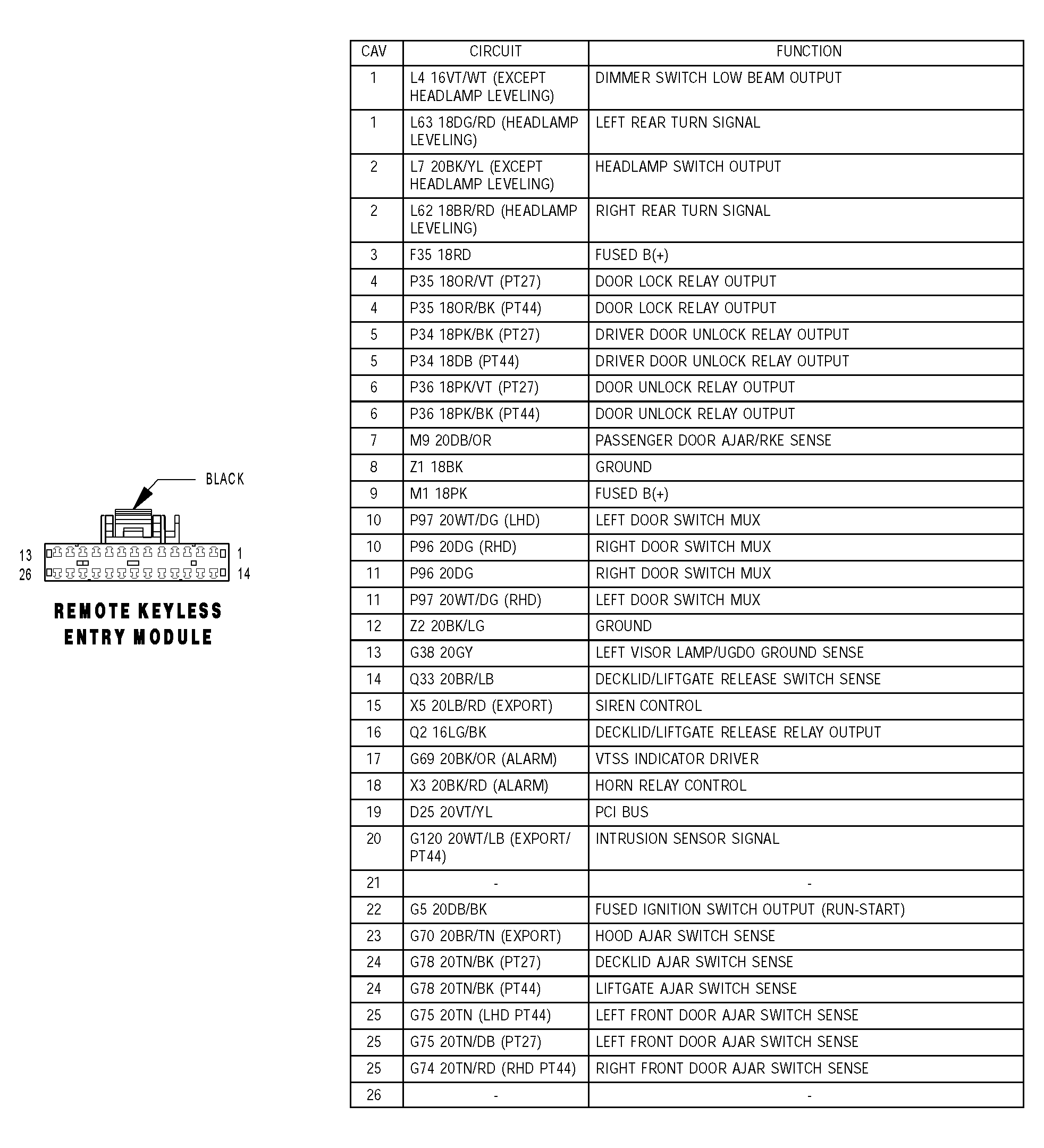

Fig 1: Identifying Remote Keyless Entry Module - Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
