Schematic Diagrams: Communication

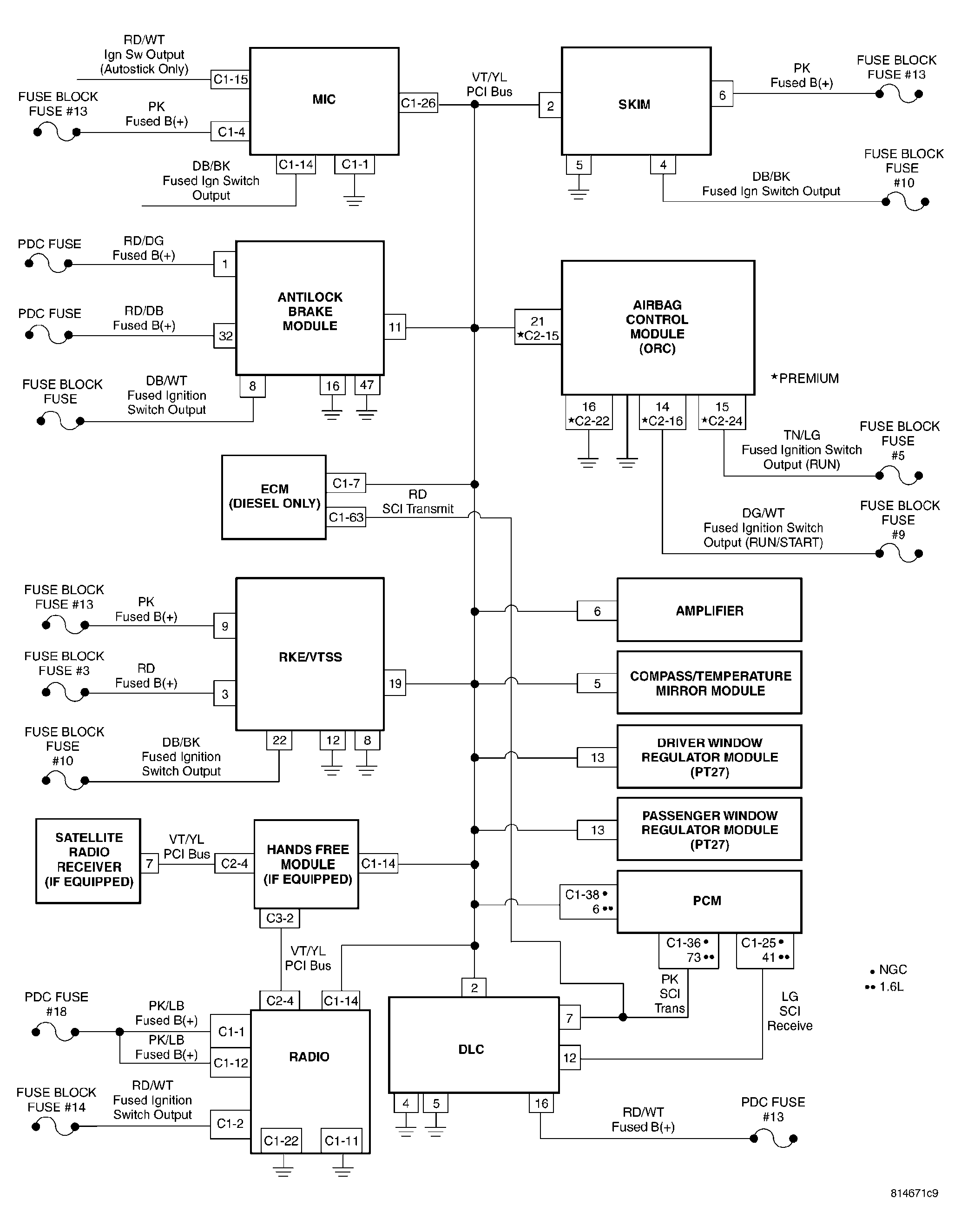

Fig 1: Communication - Schematic Diagrams
G04549121Courtesy of DAIMLERCHRYSLER CORP.
