10.4.1 Compass/Temperature Mirror Module (Pt27)

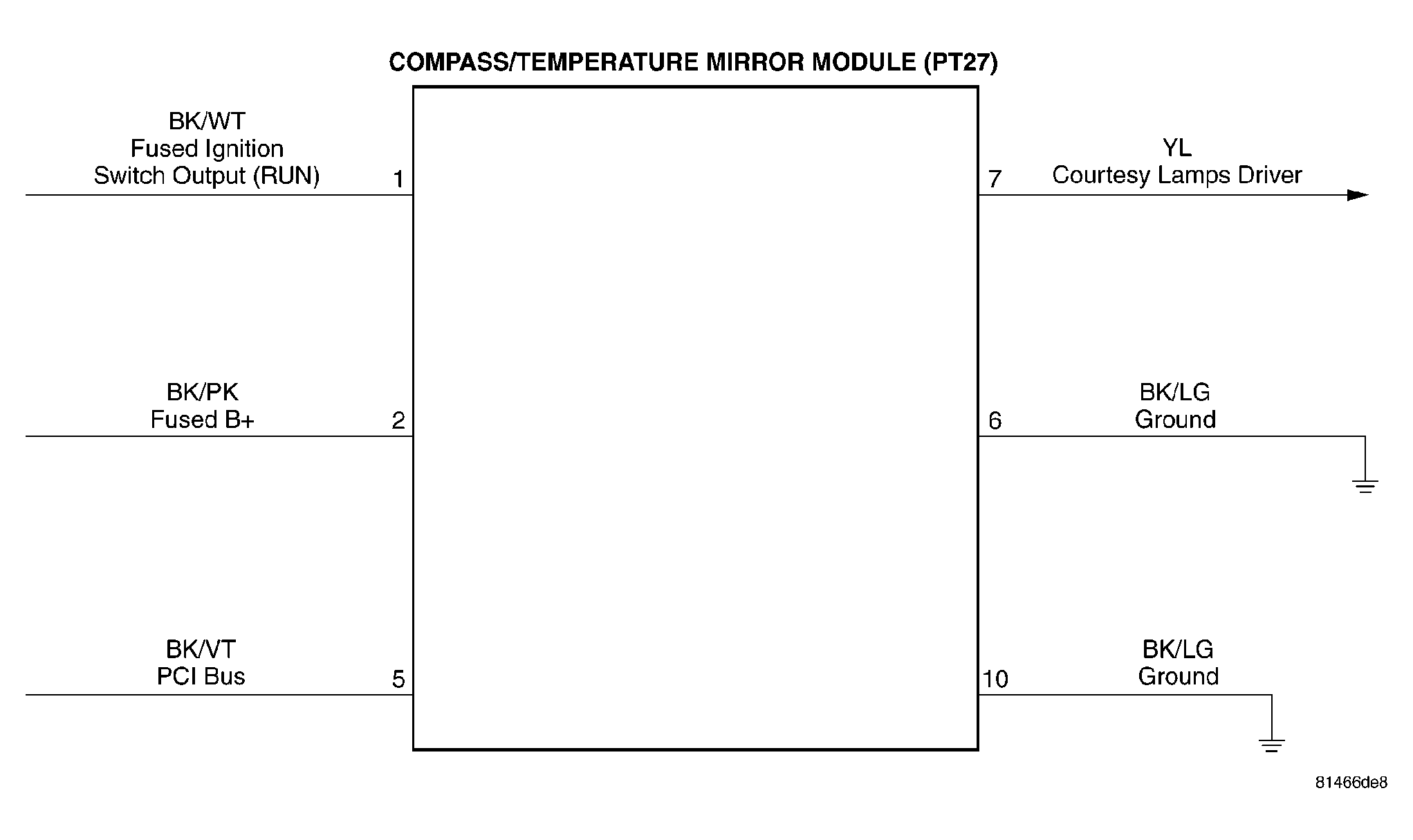

Fig 1: Compass/Temperature Mirror Module (PT27) - Schematic Diagrams
G04549123Courtesy of DAIMLERCHRYSLER CORP.
