Compass/Temperature Module: Notes

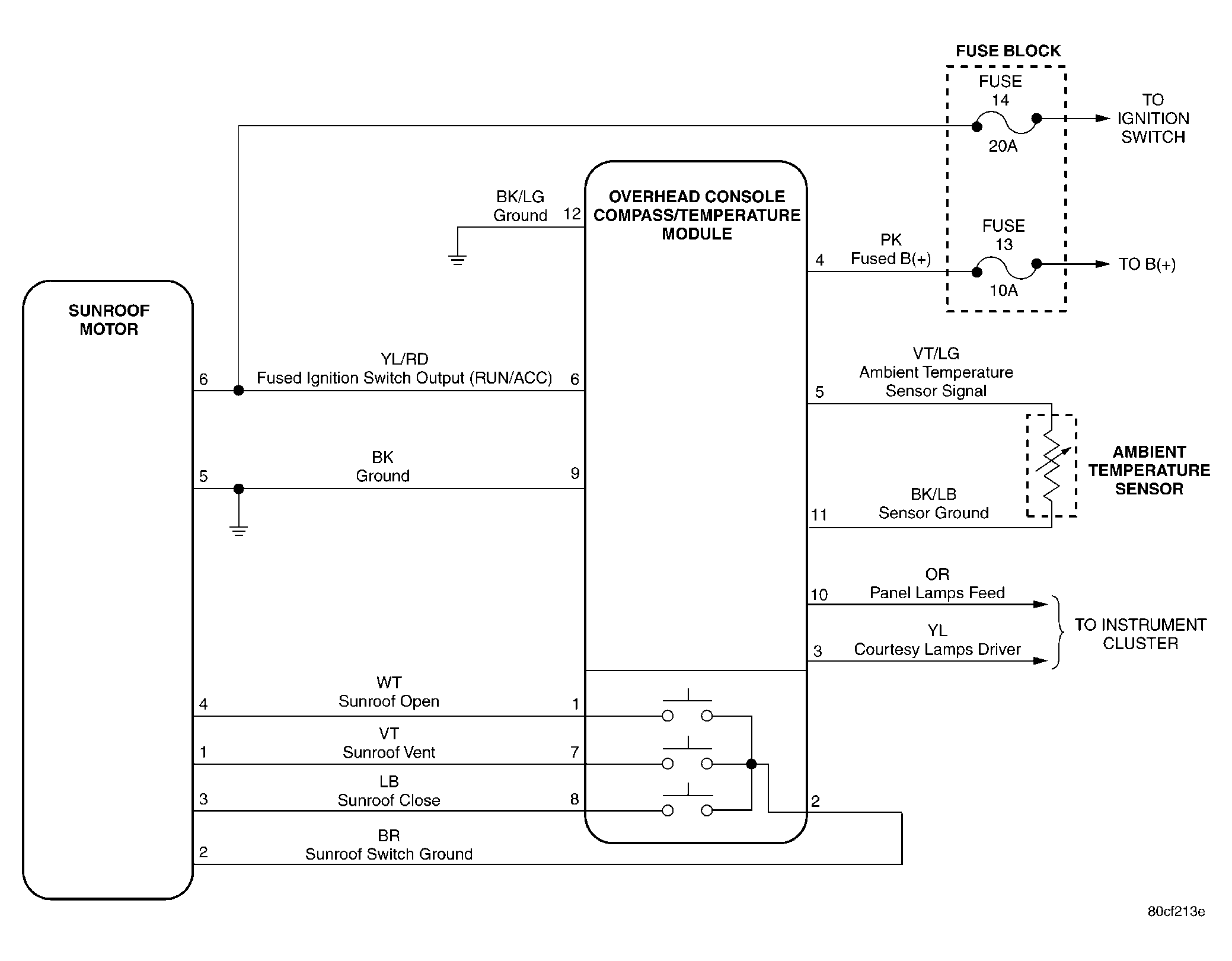

Fig 1: Compass/Temperature Module - Schematic Diagrams
G04549122Courtesy of DAIMLERCHRYSLER CORP.
