Power Window Switch: Removal: Front

1. Disconnect and isolate the battery negative cable.
2. Using a trim stick (special tool #C-4755) or equivalent, gently pry at the top of the switch. See Fig 1.

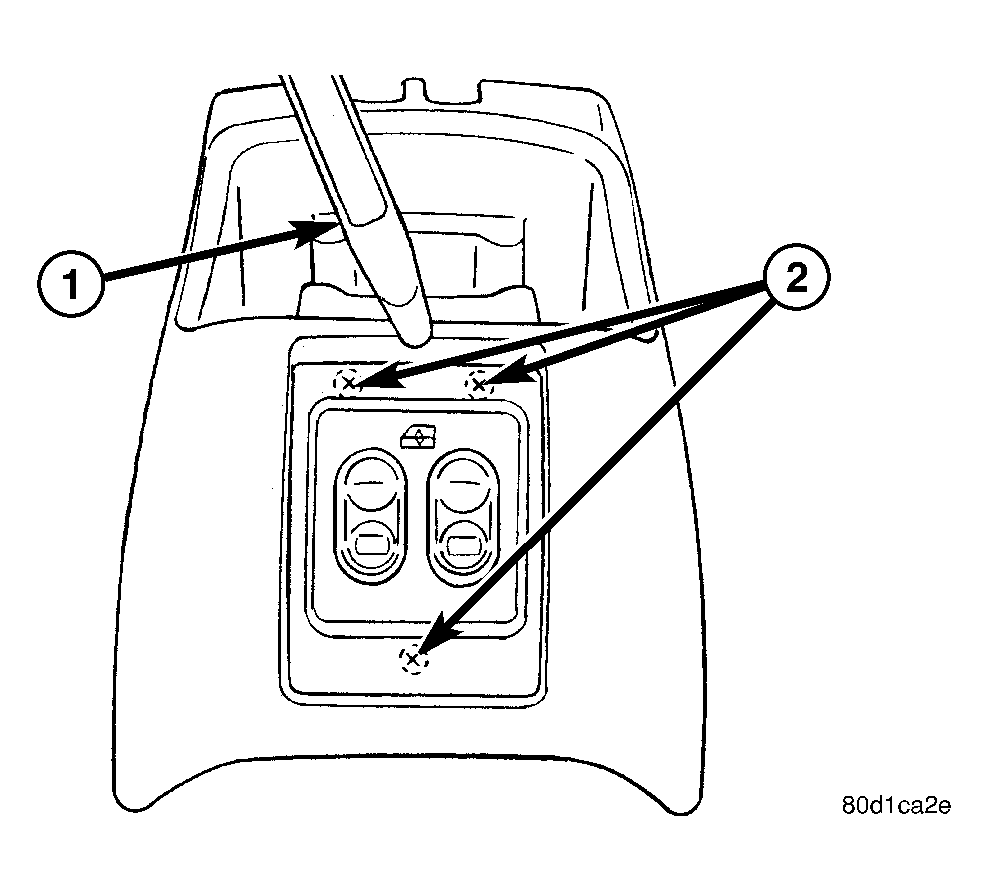

   Fig 1: WINDOW SWITCH REMOVAL (REAR SHOWN - FRONT SIMILAR)

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - TRIM STICK

   2 - RETAINING CLIP LOCATION

3. Remove switch and disconnect electrical harness connector. See Fig 2.

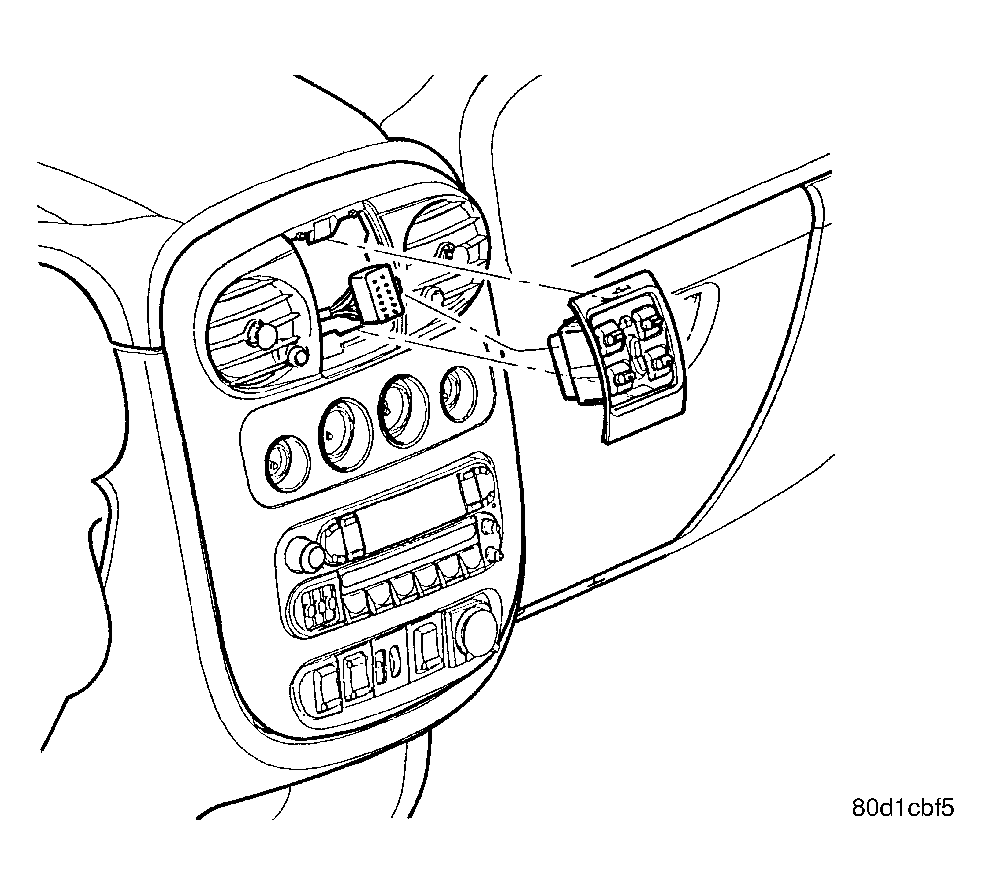

Fig 2: FRONT WINDOW SWITCH

Courtesy of DAIMLERCHRYSLER CORP.
