Powertrain Diagnostic Procedures - Component Testing
›
Charts And Graphs
›
Turbocharger System Circuit Diagrams
Turbocharger System Circuit Diagrams

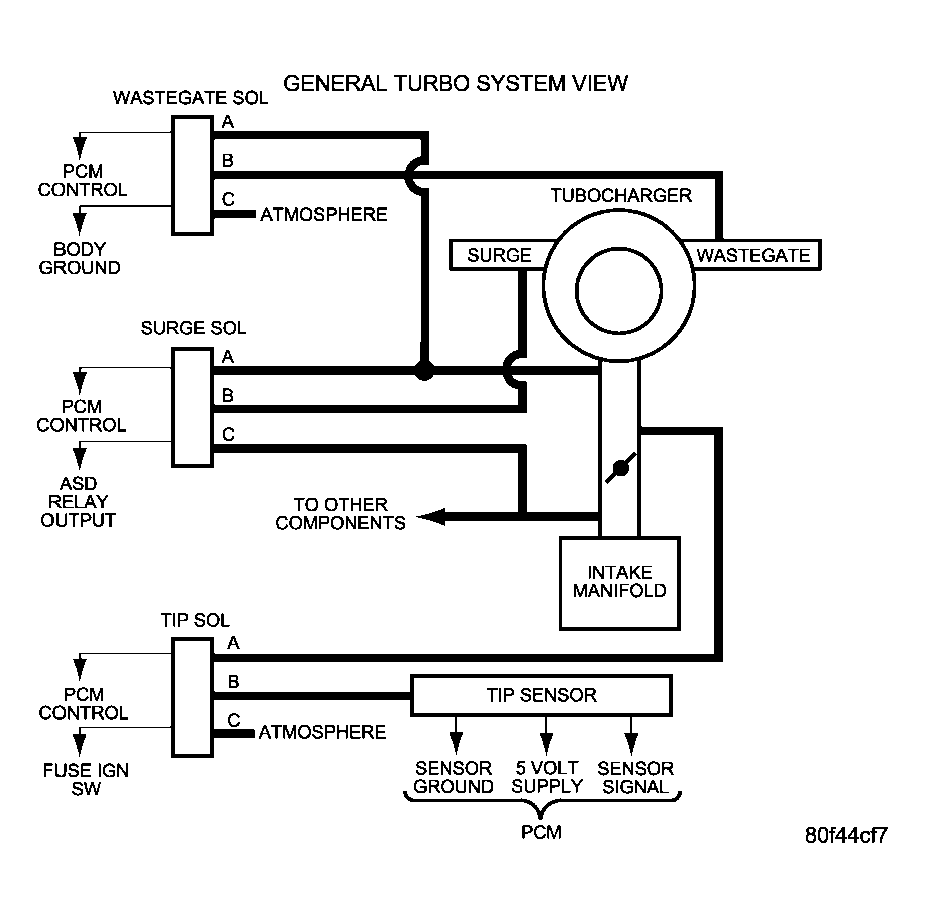

Fig 1: Identifying Turbo System Circuits
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
