PT Cruiser Base, 2D Convertible, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Powertrain Diagnostic Procedures - Component Testing
›
Component Locations
›
Relays
›
PDC Relay Locations
PDC Relay Locations

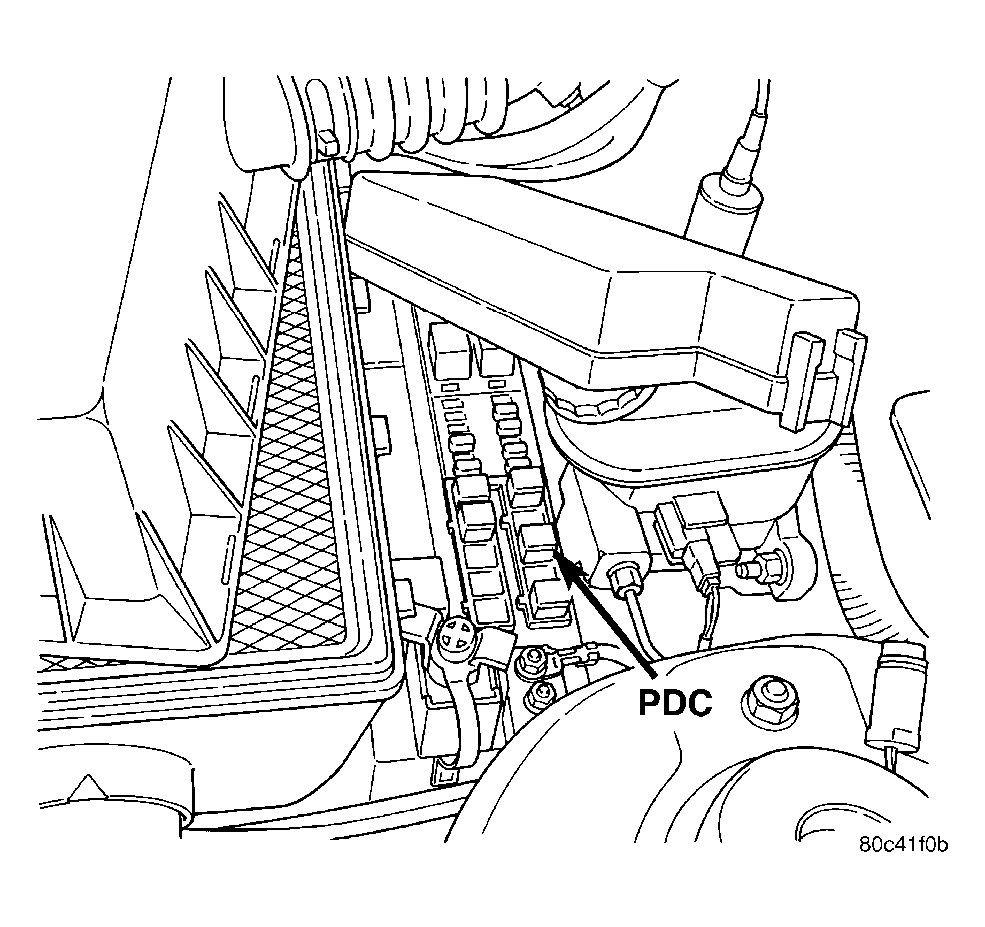

Fig 1: Identifying PDC Relays
Courtesy of DAIMLERCHRYSLER CORP.

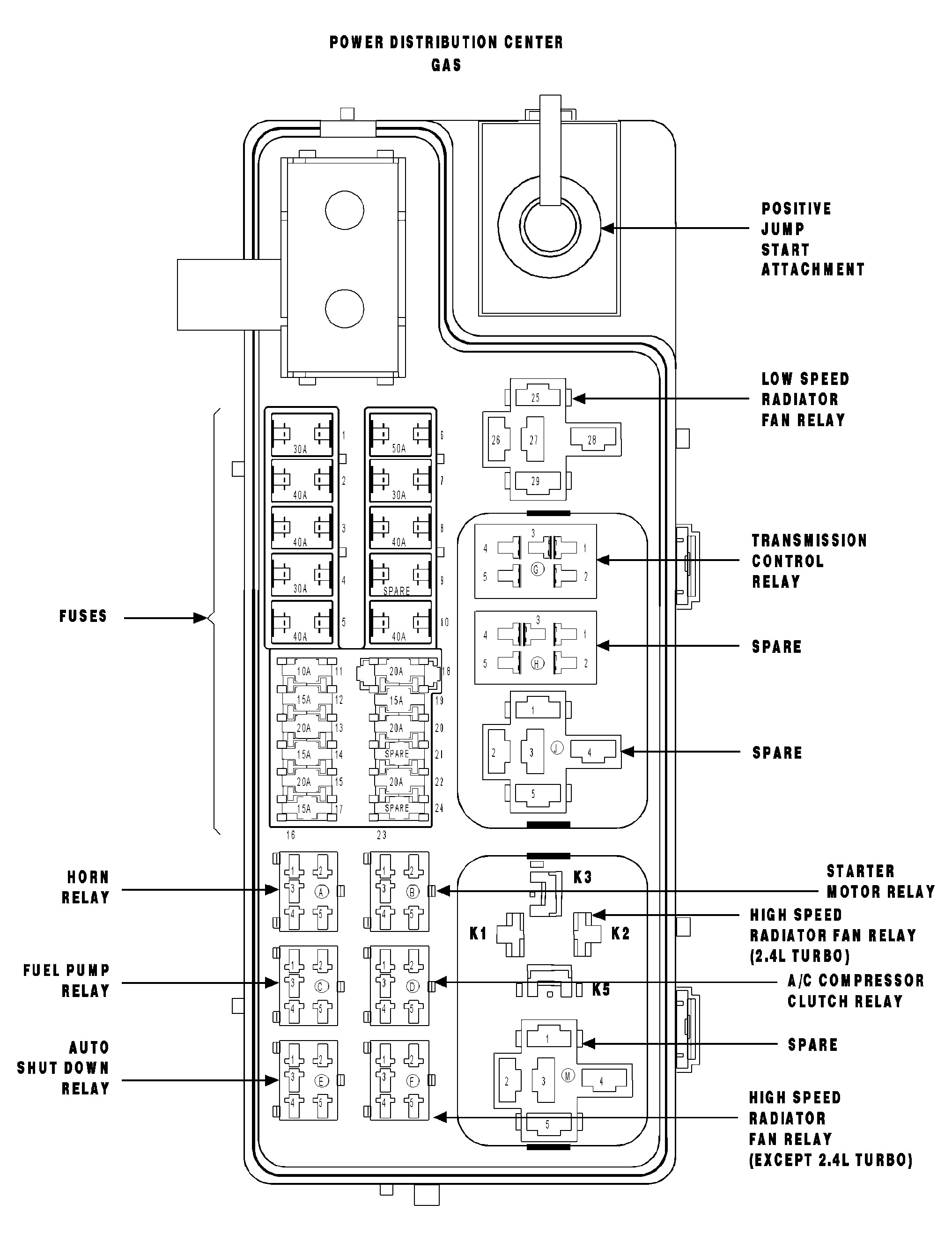

Fig 2: Identifying Power Distribution Center
Courtesy of DAIMLERCHRYSLER CORP.

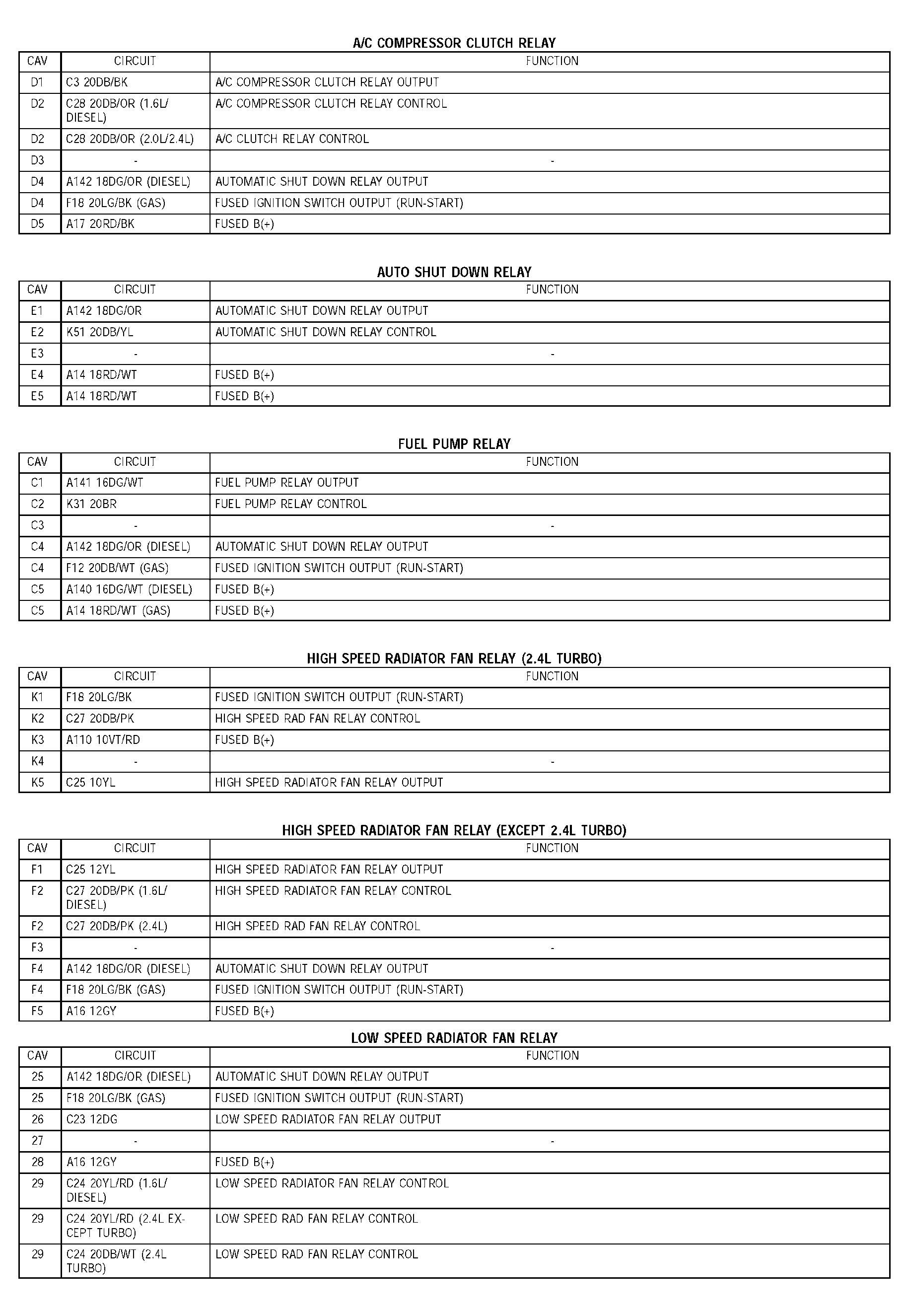

Fig 3: Identifying Power Distribution Center Circuit Functions
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
