PT Cruiser Base, 2D Convertible, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Powertrain Diagnostic Procedures - Component Testing
›
Connector PINOUTS
›
Data Link Connector - Black 16 Way
Data Link Connector - Black 16 Way

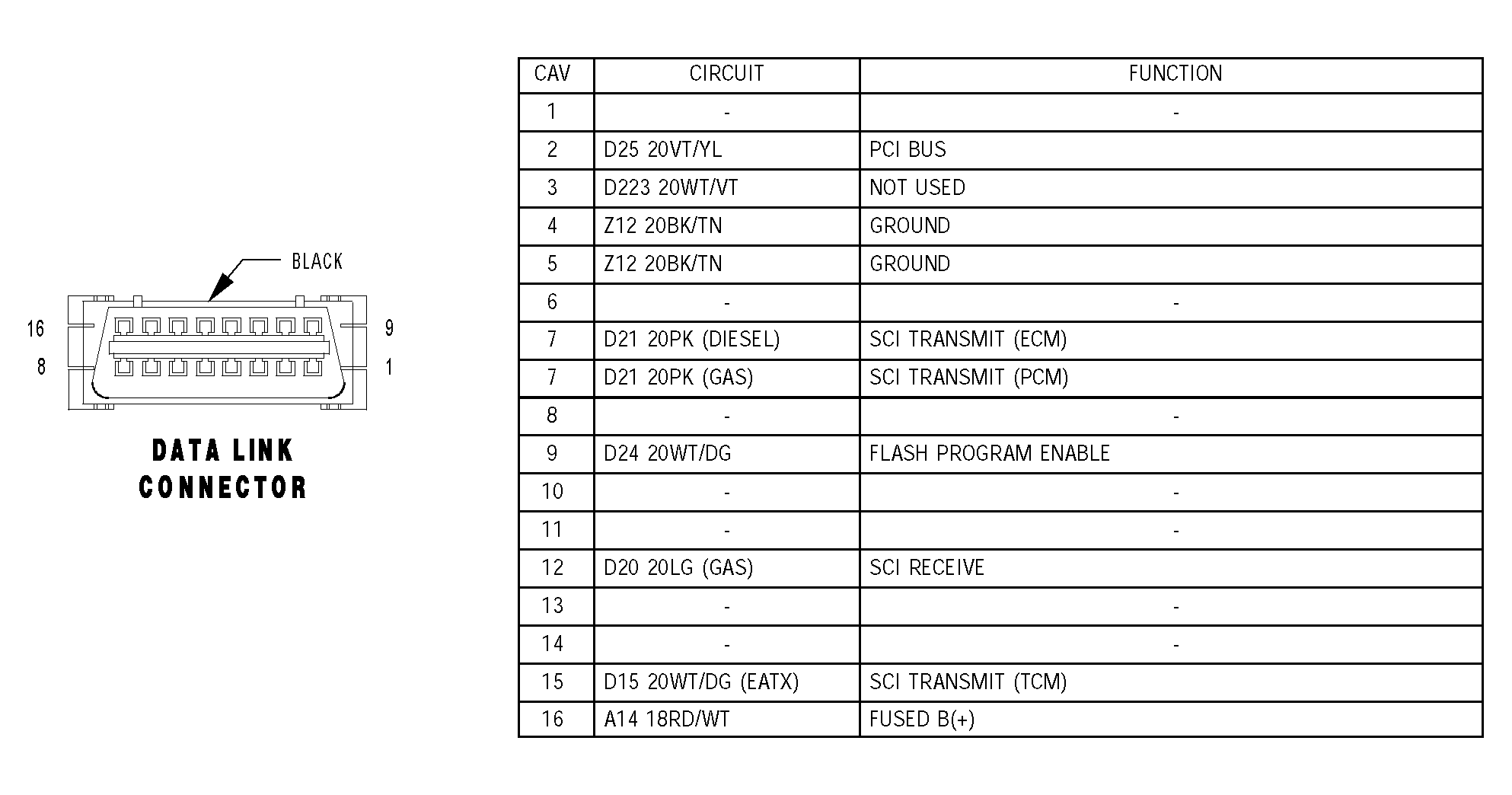

Fig 1: Data Link Connector - Black 16 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
