Connector PINOUTS
›
Powertrain Control Module C1 (NGC) - Black/Black 38 Way
Powertrain Control Module C1 (NGC) - Black/Black 38 Way

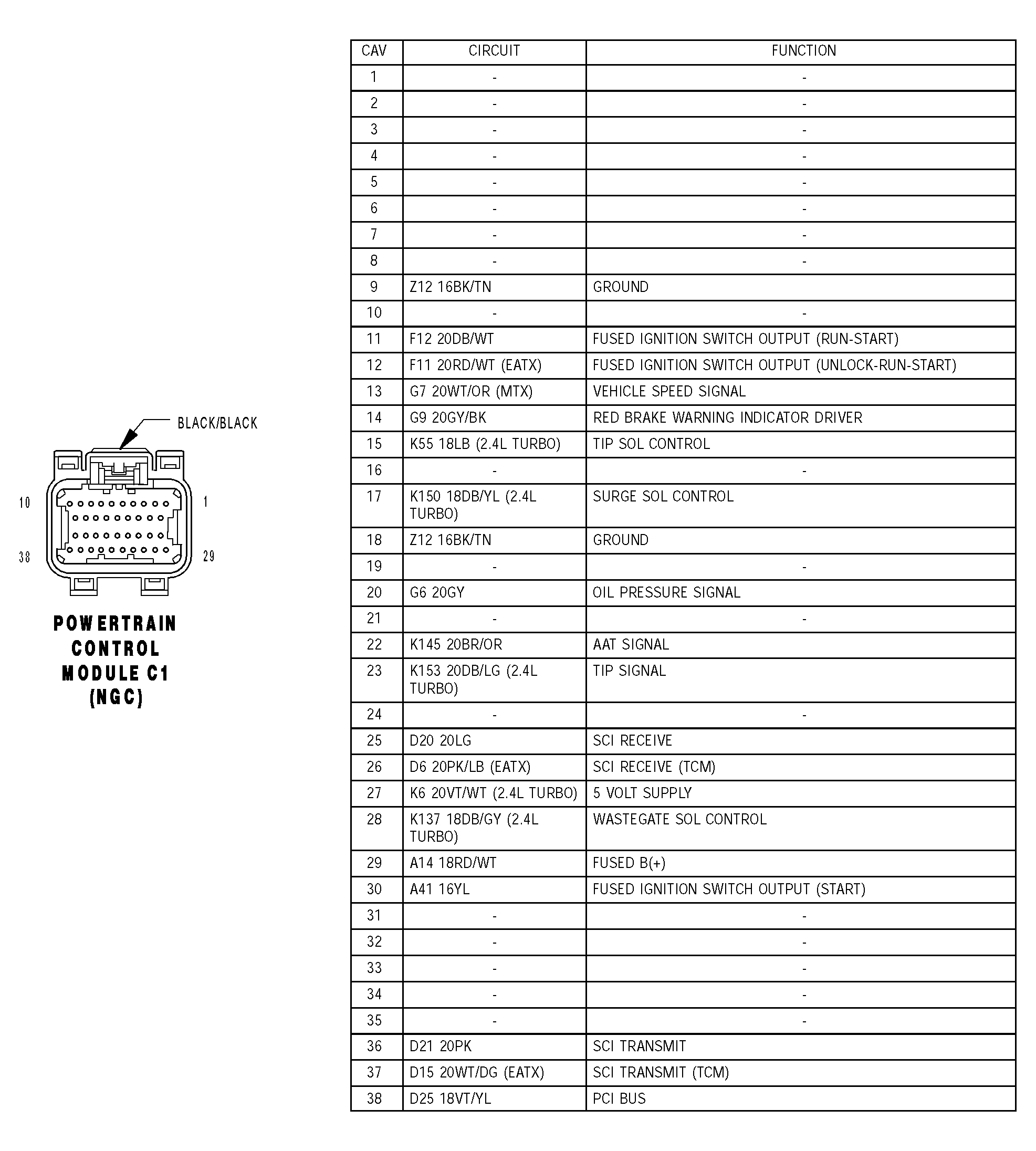

Fig 1: Powertrain Control Module C1 (NGC) - Black/Black 38 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
