Connector PINOUTS
›
Powertrain Control Module C2 (NGC) - Black/Orange 38 Way
Powertrain Control Module C2 (NGC) - Black/Orange 38 Way

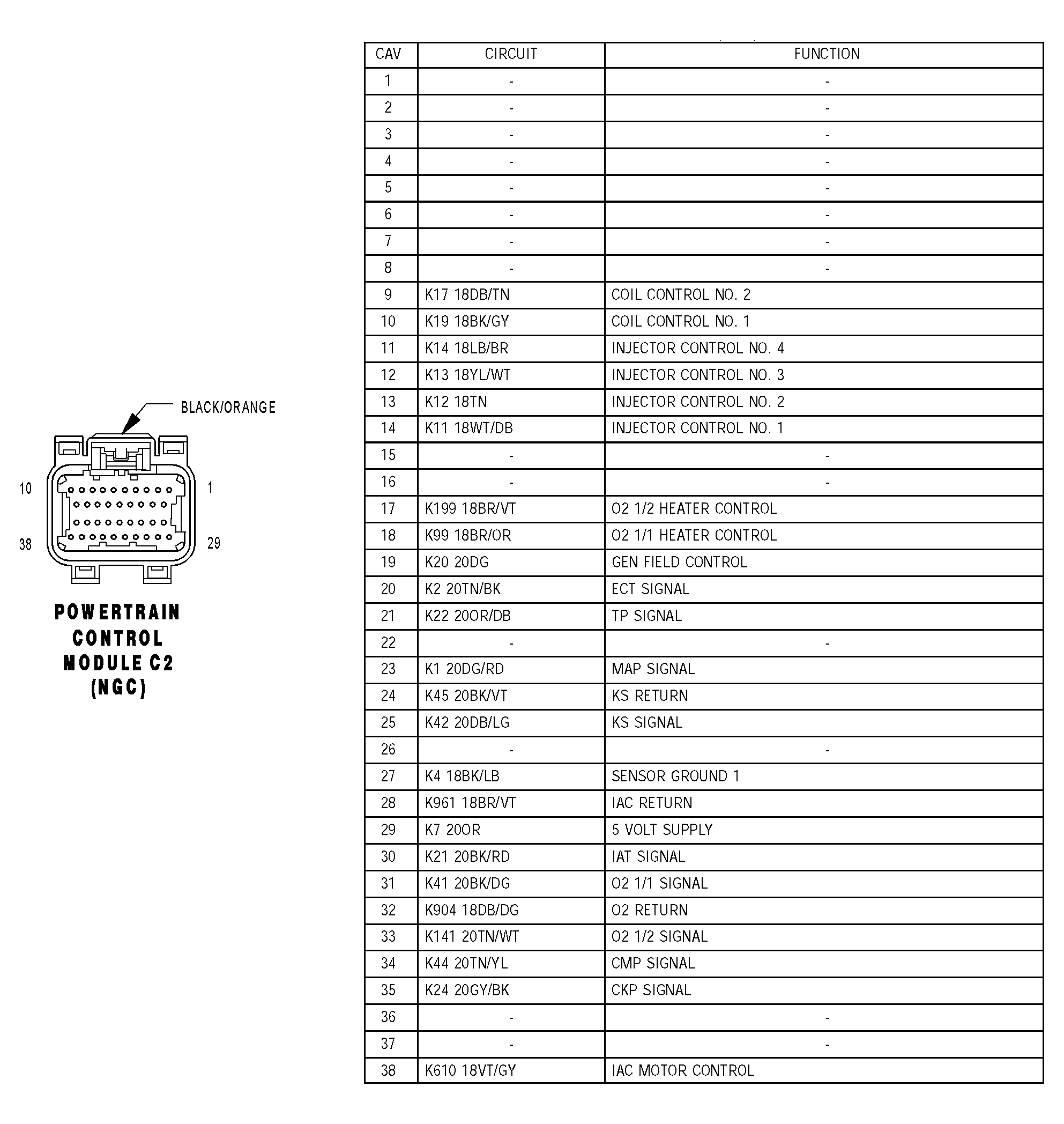

Fig 1: Powertrain Control Module C2 (NGC) - Black/Orange 38 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
