Connector PINOUTS
›
Sentry Key Immobilizer Module - Black 6 Way
Sentry Key Immobilizer Module - Black 6 Way

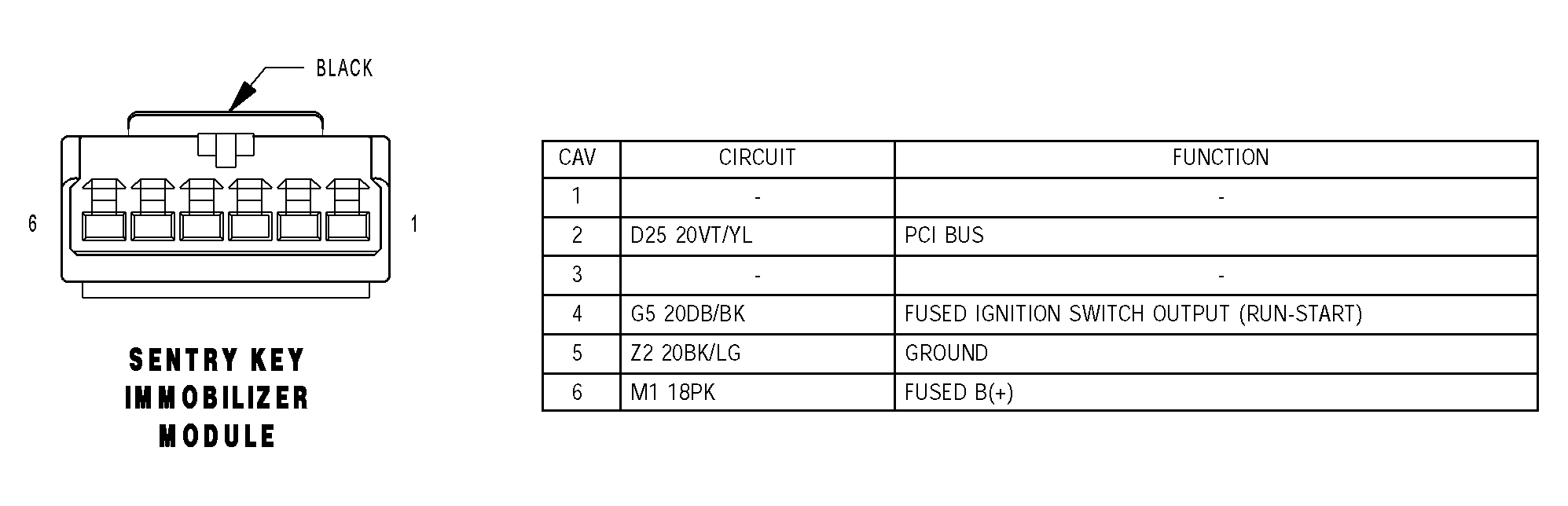

Fig 1: Sentry Key Immobilizer Module - Black 6 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
