Installation - 1.6L

WARNING: This page is about a different car, the 2005 Dodge SX, 2005 Dodge SRT-4, and 2005 Dodge Neon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the PCM to bracket.

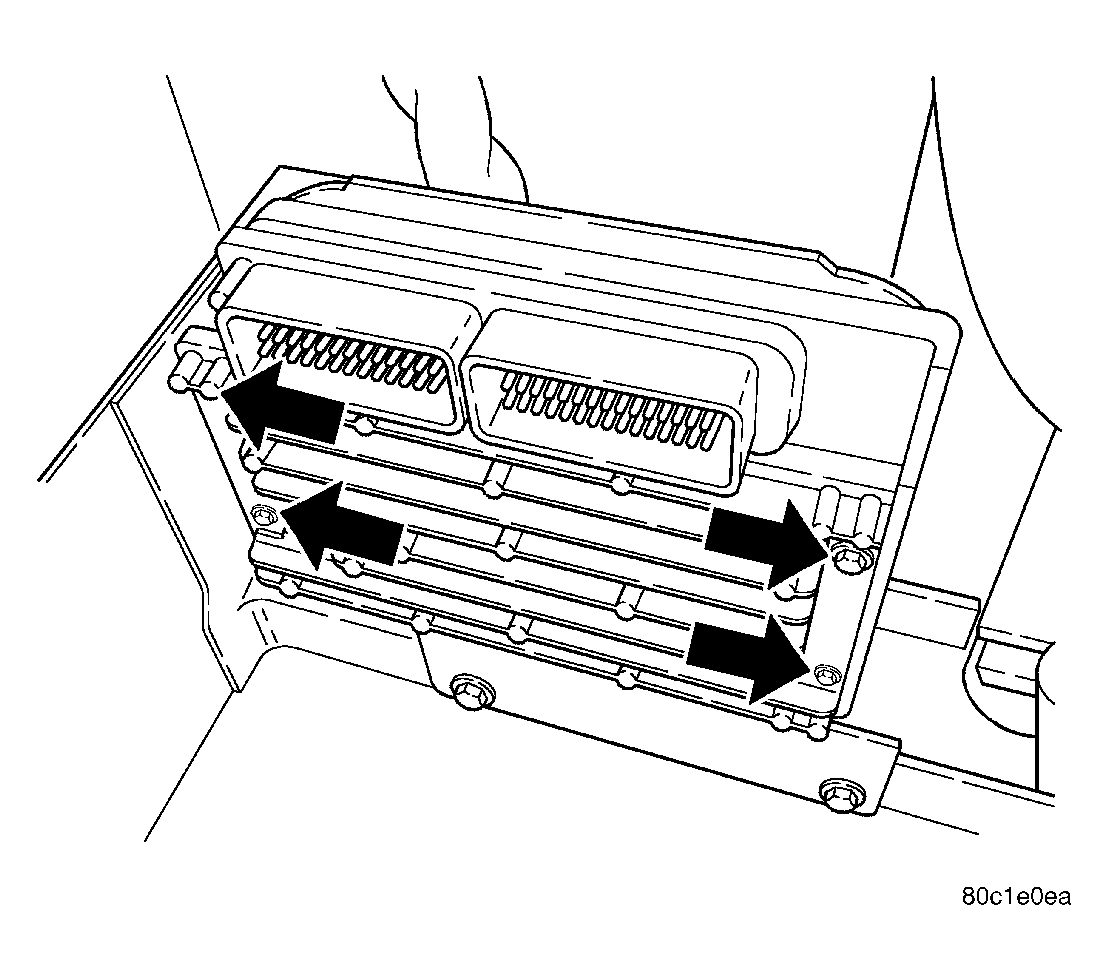

  2. Install the 4 bolts. See Figure.
  3. Connect the Powertrain Control Module electrical connector.

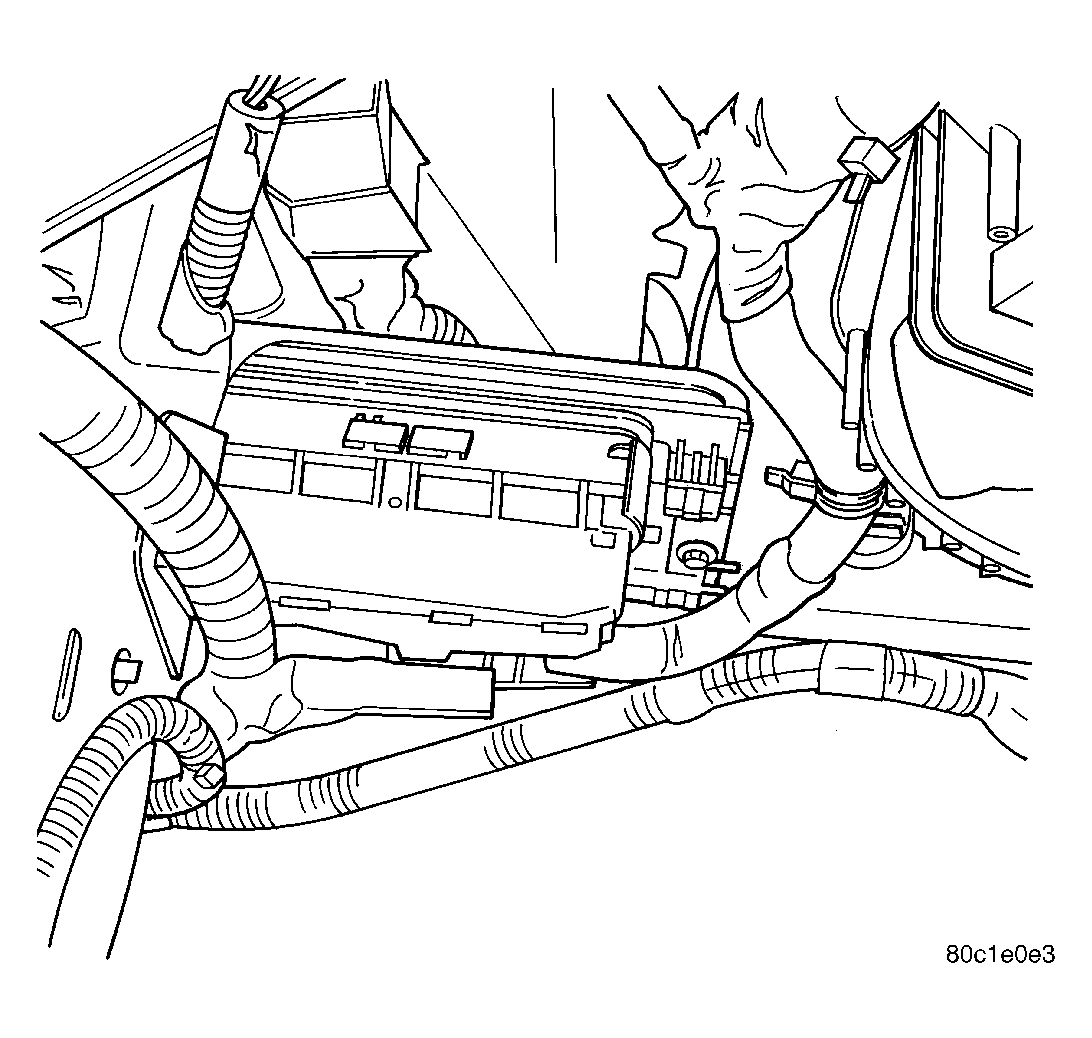

  4. Install the air cleaner box, refer to the air cleaner box installation. See Figure.
  5. Connect the negative battery cable.
