Section 125 (Speed Control): Cable: Removal

WARNING: This page is about a different car, the 2005 Dodge SX, 2005 Dodge SRT-4, and 2005 Dodge Neon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the throttle cable cover.
  3. Remove speed control cable from throttle lever by sliding clasp out of the hole. See Fig 1.

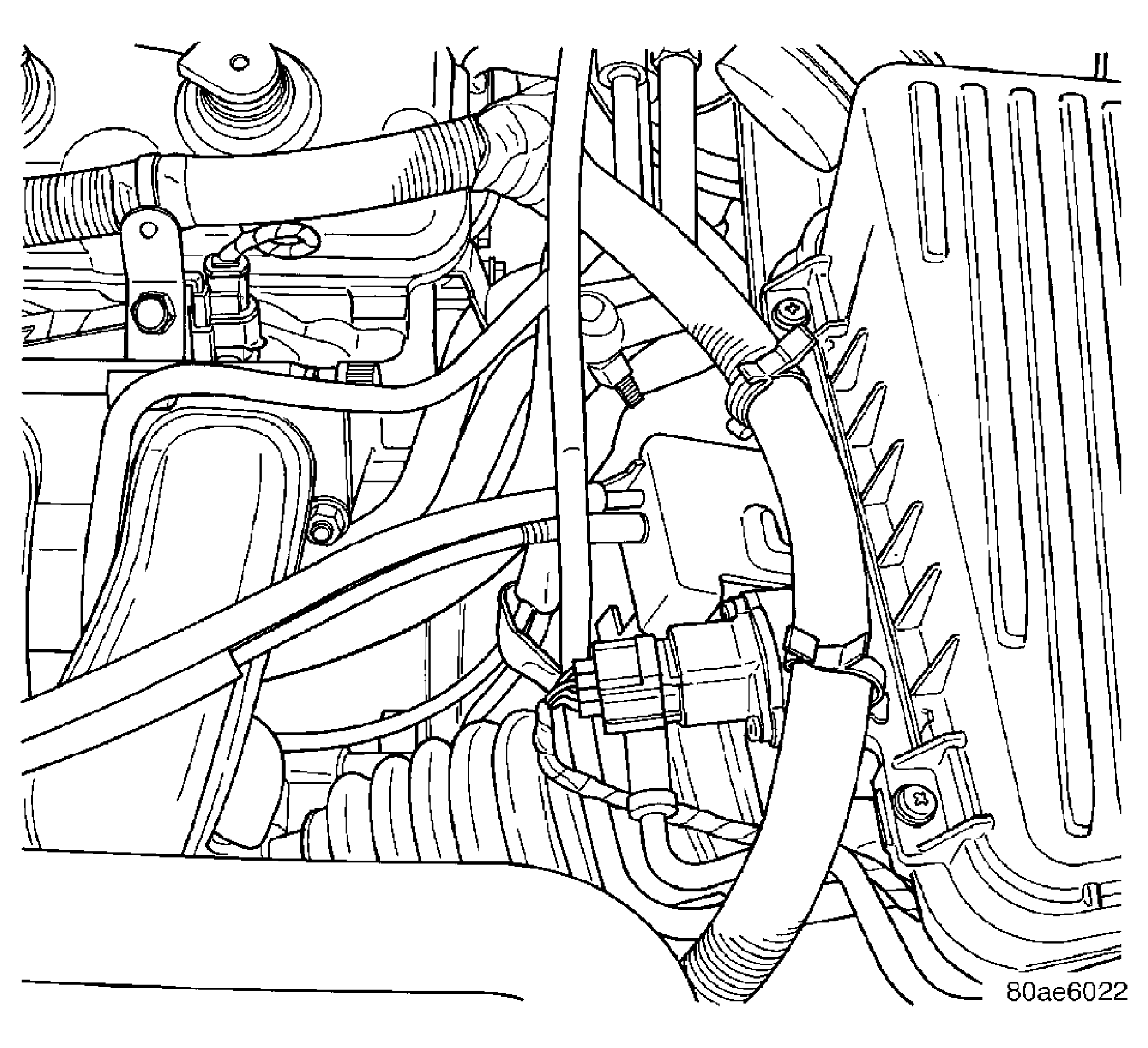

    Fig 1: Disconnecting Throttle Cable
    GC0019442Courtesy of DAIMLERCHRYSLER CORP.
  4. Lift the retaining tab on the throttle cable and slide cable out of bracket. Lift the retaining tab on the speed control cable and slide cable out of bracket.
  5. Disconnect electrical connector from servo.
  6. Disconnect vacuum hose from servo
  7. Remove 2 nuts retaining bracket to servo. See Fig 2.

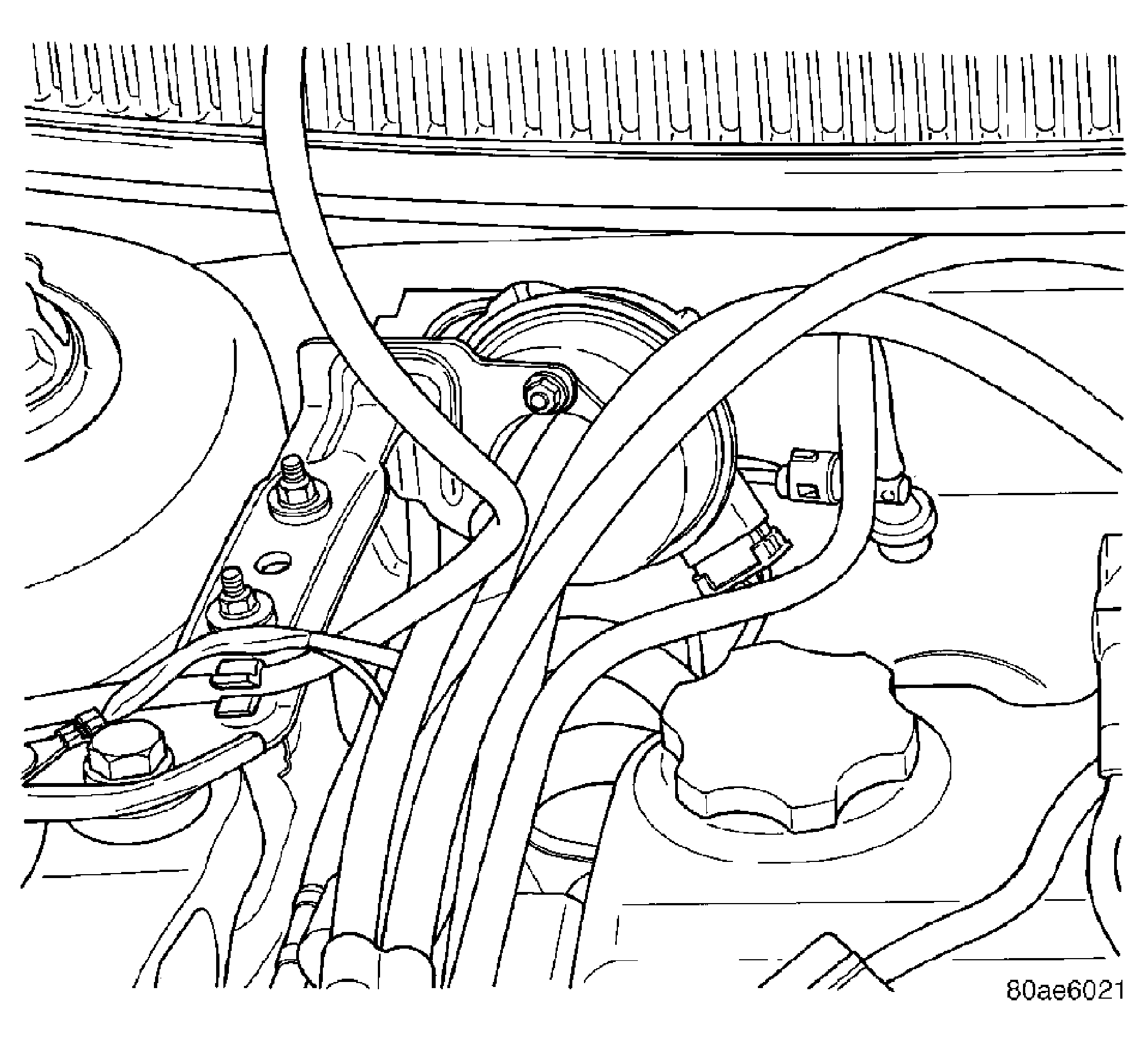

    Fig 2: Speed Control Servo
    GC0020016Courtesy of DAIMLERCHRYSLER CORP.
  8. Remove push nuts holding cable housing to servo.
  9. Remove retaining clip holding cable to servo. See Fig 3.
Fig 3: Speed Control Cable
GC0020017Courtesy of DAIMLERCHRYSLER CORP.
