Controller Antilock Brake (MK20E): Installation

WARNING: This page is about a different car, the 2005 Dodge Grand Caravan, 2005 Dodge Caravan, and 2005 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the CAB onto the HCU. See Figure.

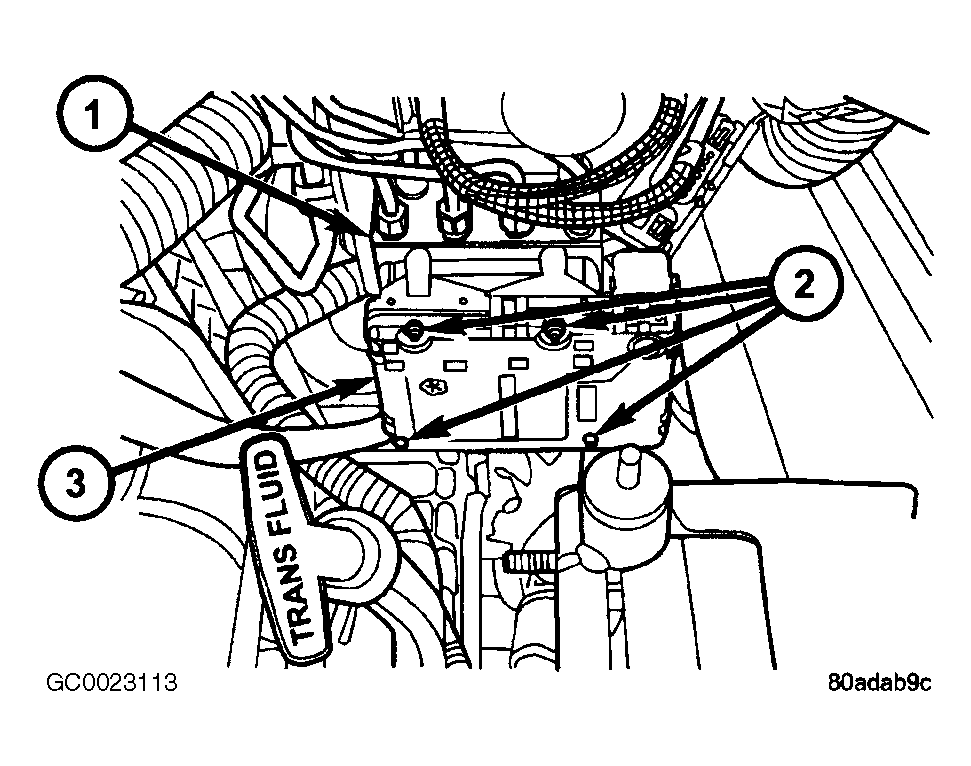

  2. Install screws securing the CAB to the HCU Tighten the mounting screws to 2 N.m (17 in lbs). See Figure.

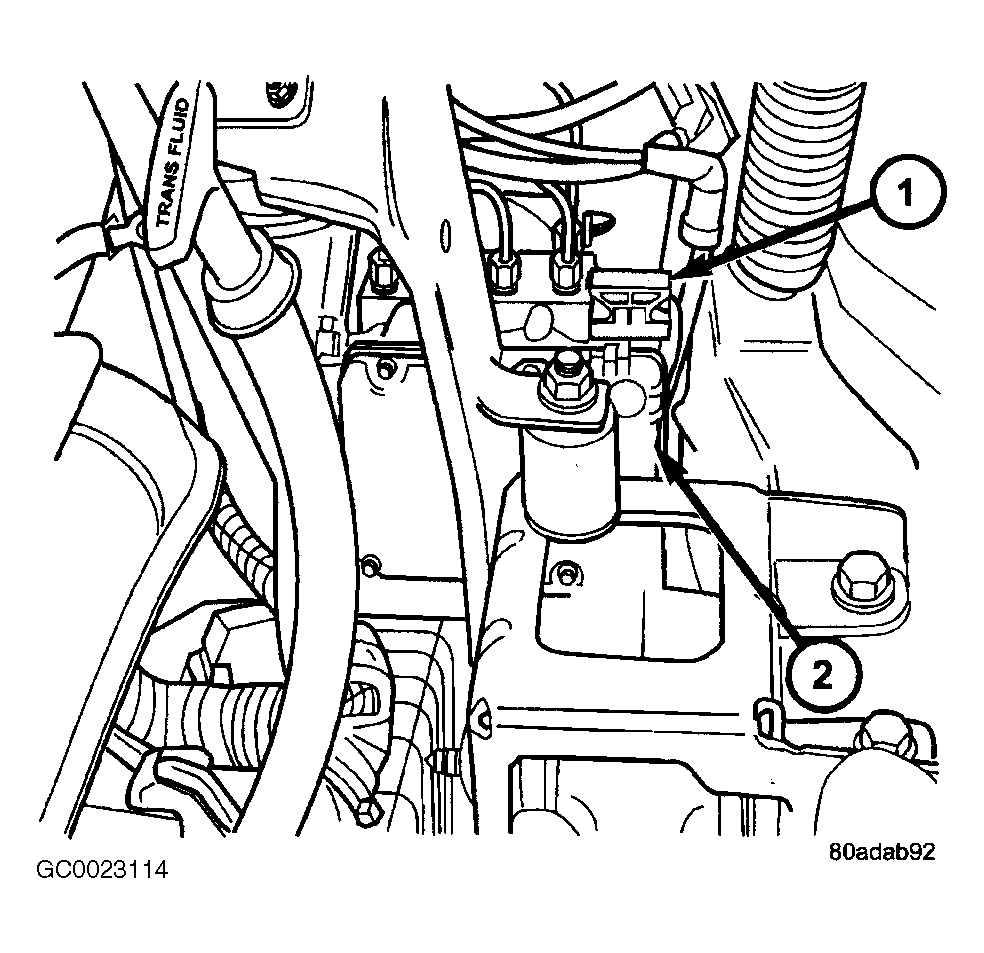

  3. Reconnect the 24-way wiring connector and the pump/motor wiring connector. See Figure.
  4. Install the battery tray (Refer to ELECTRICAL/BATTERY SYSTEM/TRAY - INSTALLATION) .
  5. Install the screw securing the coolant filler neck to the battery tray.
  6. Reconnect the vacuum hose to the coolant tank built into the battery tray.
  7. Install the battery (Refer to ELECTRICAL/BATTERY SYSTEM/BATTERY - INSTALLATION) .
  8. Reconnect the battery cables.
  9. Connect a DRBIII® to the vehicle. Check and clear any faults, and initialize the system.
