Standard Procedure - Module Lamp Replacement
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the overhead console.

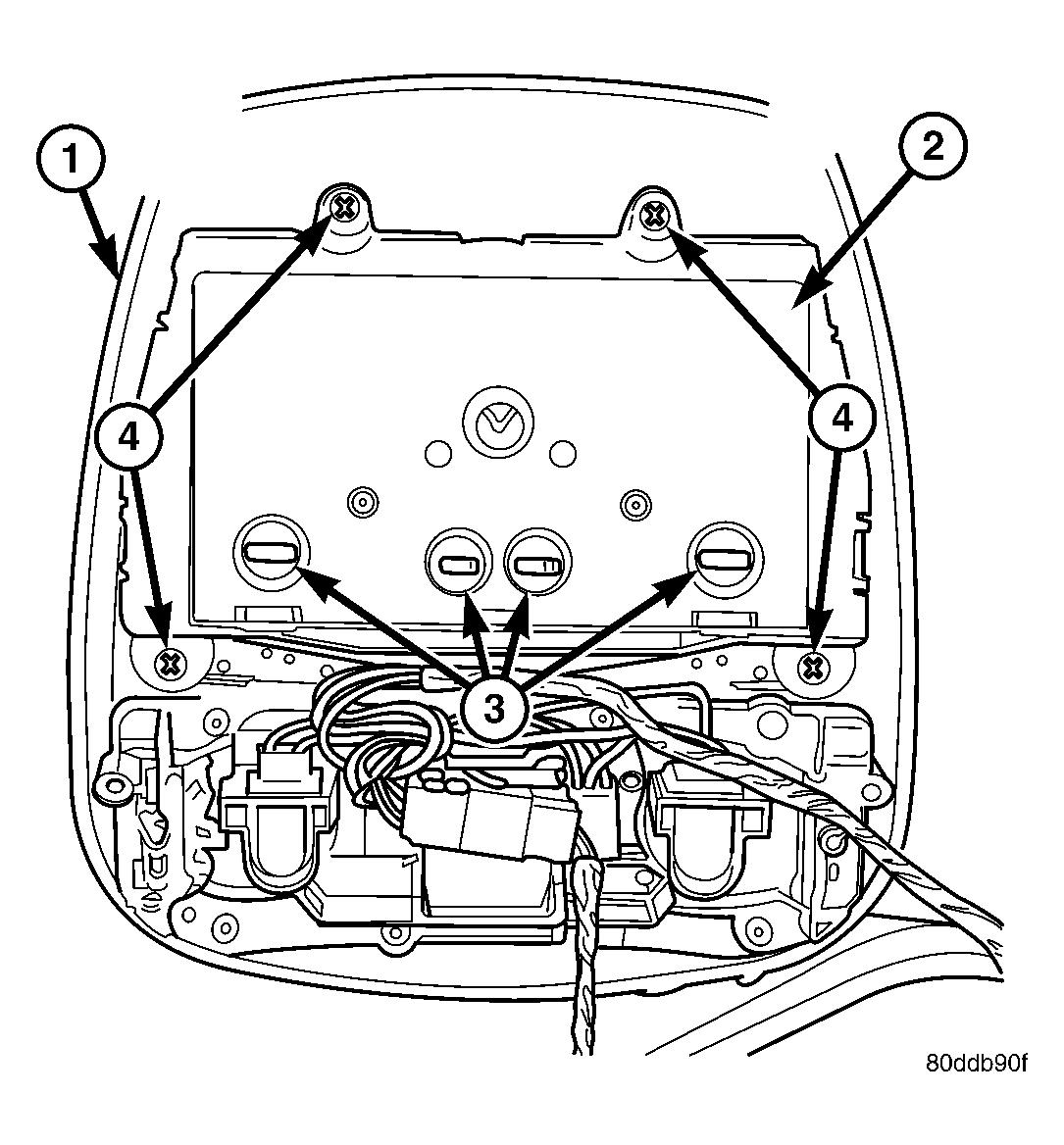

- Using a flat blade screwdriver twist out socket/lamp. See Fig 1.
- Replace lamp(s) as necessary.
| 1 - OVERHEAD CONSOLE HOUSING |
| 2 - EVIC/CMTC MODULE |
| 3 - ILLUMINATION LAMPS |
| 4 - MODULE RETAINING SCREWS |
