Fluid Level Inspection

WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

Raise vehicle on hoist.
Remove PTU inspection plug. See Fig 1.

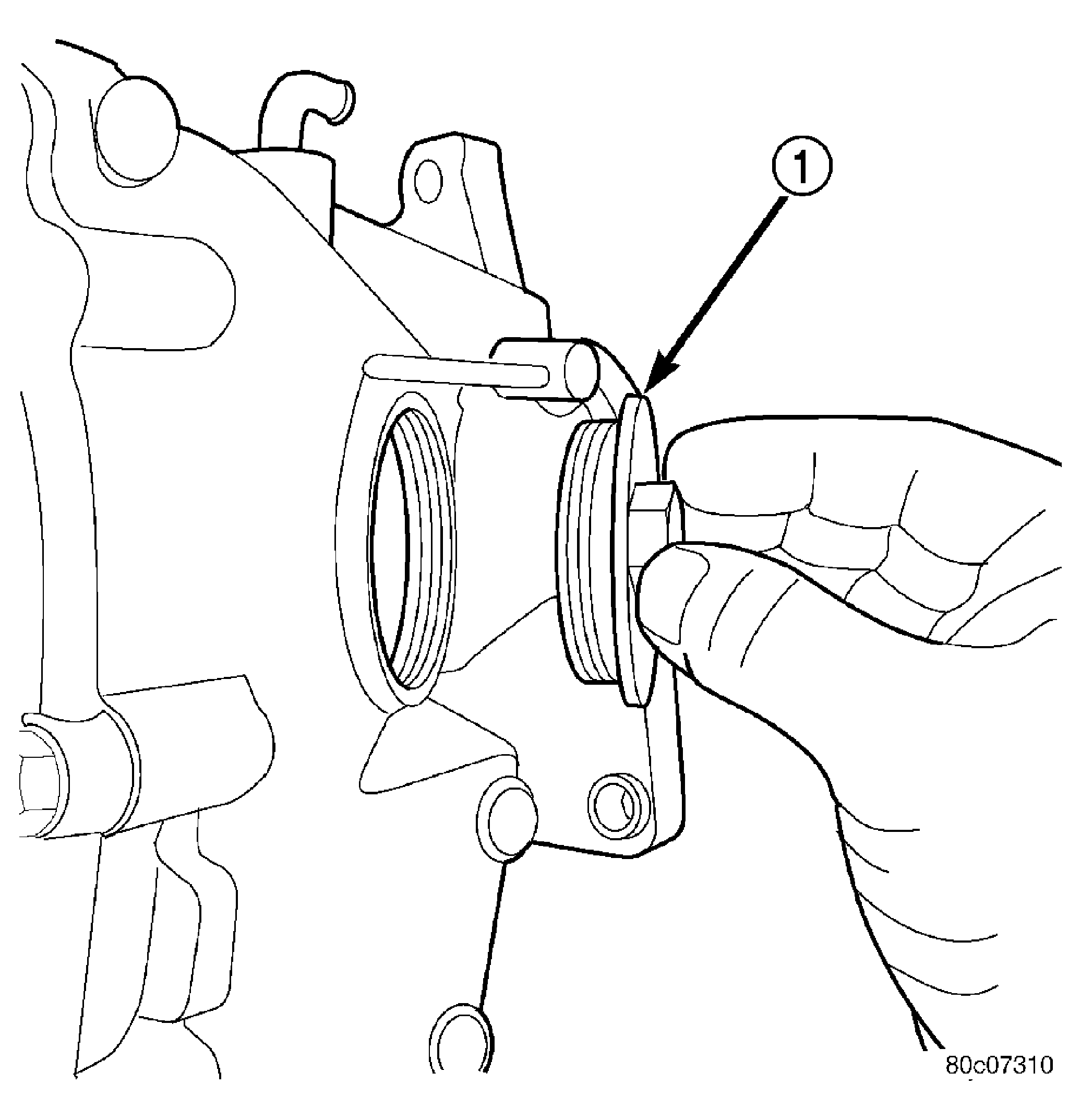

Fig 1: Inspection Plug
Courtesy of DAIMLERCHRYSLER CORP.

1 - INSPECTION PLUG
Fluid level should be within 3/16" from bottom of inspection hole. Add Mopar® Gear and Axle Lubricant 80W-90 as necessary with suitable suction gun. See Fig 2.

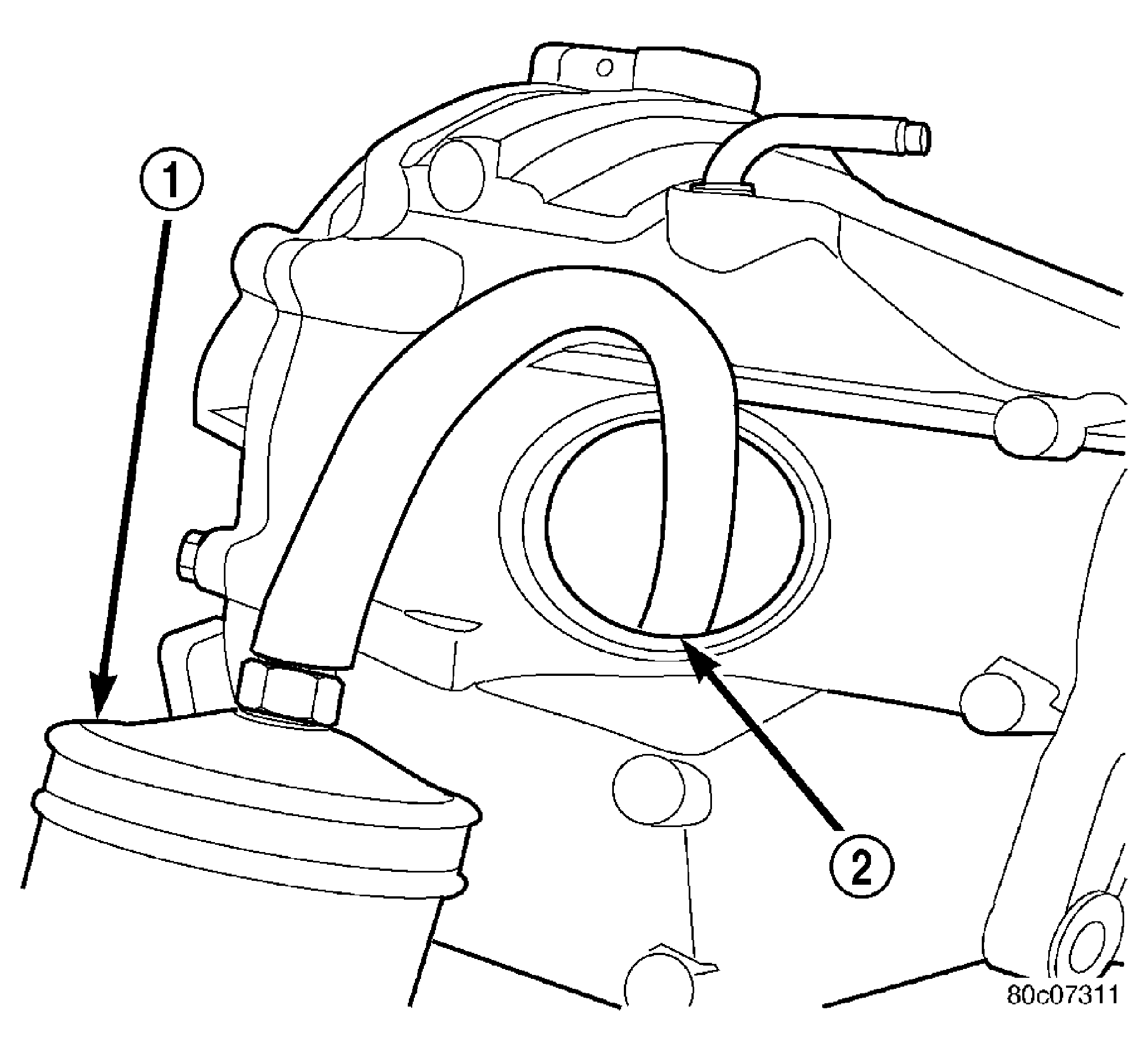

Fig 2: Adding Fluid To PTU
Courtesy of DAIMLERCHRYSLER CORP.

1 - SUCTION GUN

2 - INSPECTION HOLE
Install inspection plug and torque to 20 N.m (180 in. lbs.) torque.
Lower vehicle.
