PT Cruiser Base, 2D Convertible, Standard
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Body Diagnostic Procedures
›
Connector PINOUTS
›
Overhead Console Module - Black 12 Way
Overhead Console Module - Black 12 Way

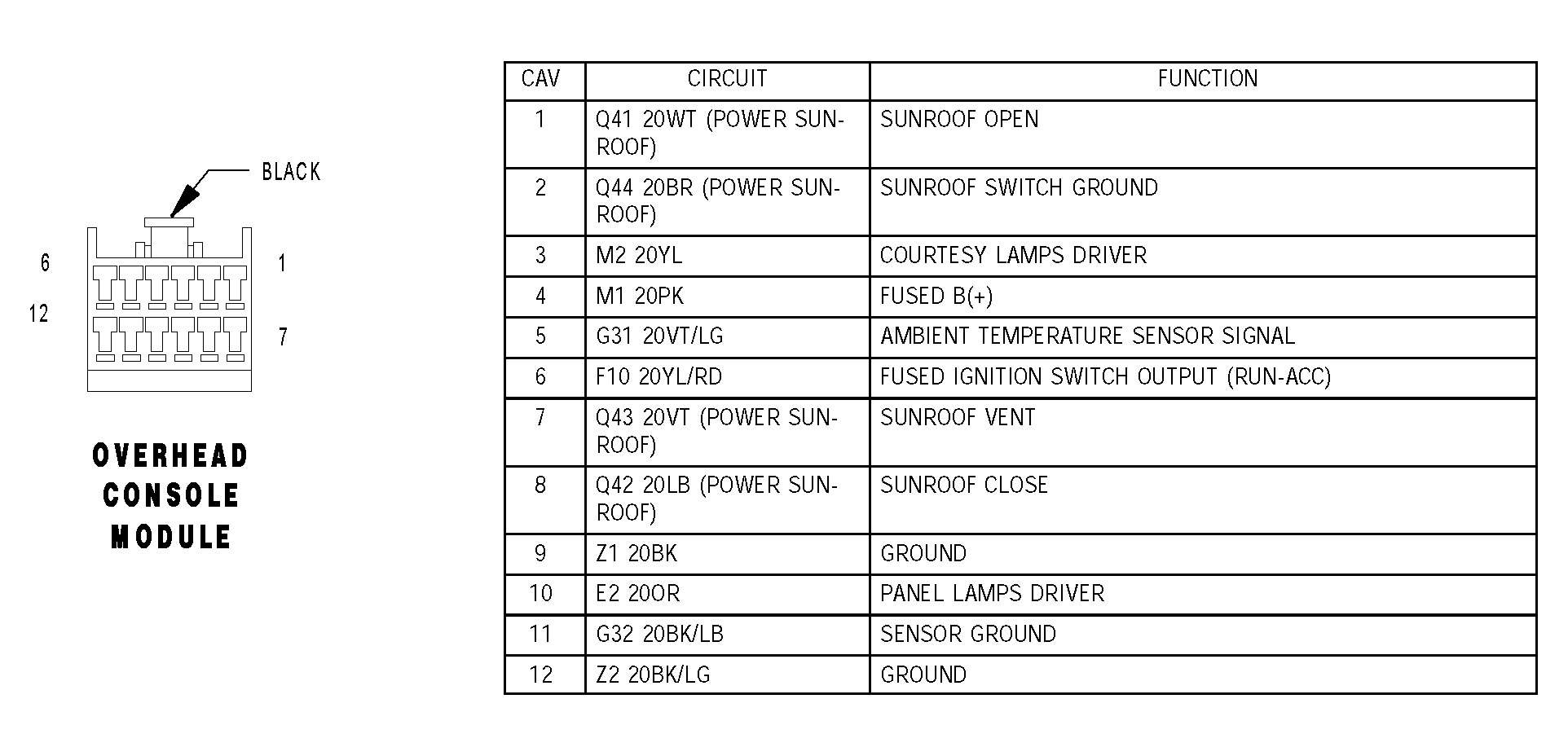

Fig 1: Identifying Overhead Console Module - Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
