Interior Lighting
Interior Lighting

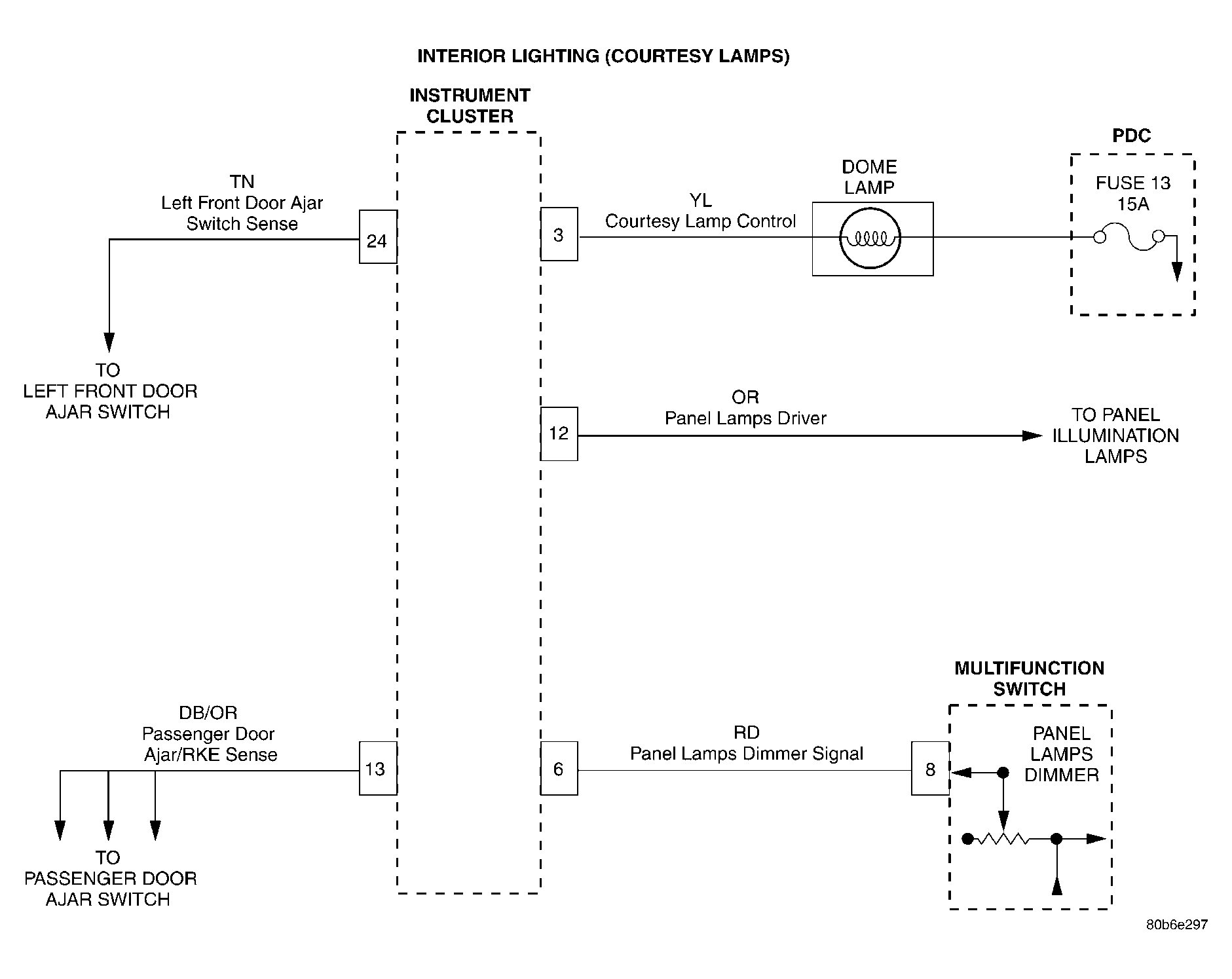

Fig 1: Interior Lighting - Schematic Diagrams
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
