Removal - 2.4L Turbo

  1. Disconnect the negative battery cable.
  2. Remove the electrical connector from the ignition coil capacitor. See Fig 1.

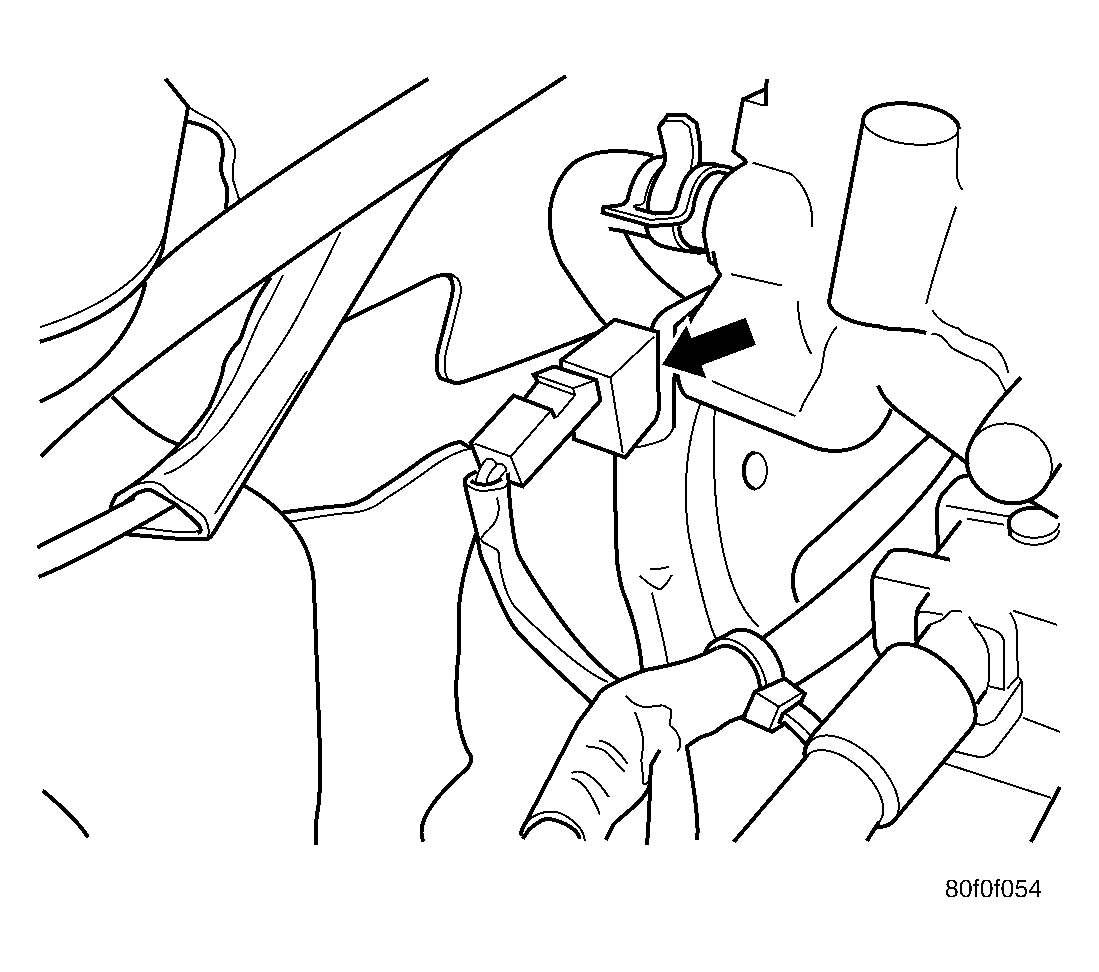

    Fig 1: COIL CAPACITOR - 2.4L TURBO
    GC0022913Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove mounting bolt and remove capacitor. See Fig 1.
