Powertrain Diagnostic Procedures - Component Testing
›
Charts And Graphs
›
Camshaft Sensor & Crankshaft Sensor Scope Pattern (Typical)
Camshaft Sensor & Crankshaft Sensor Scope Pattern (Typical)

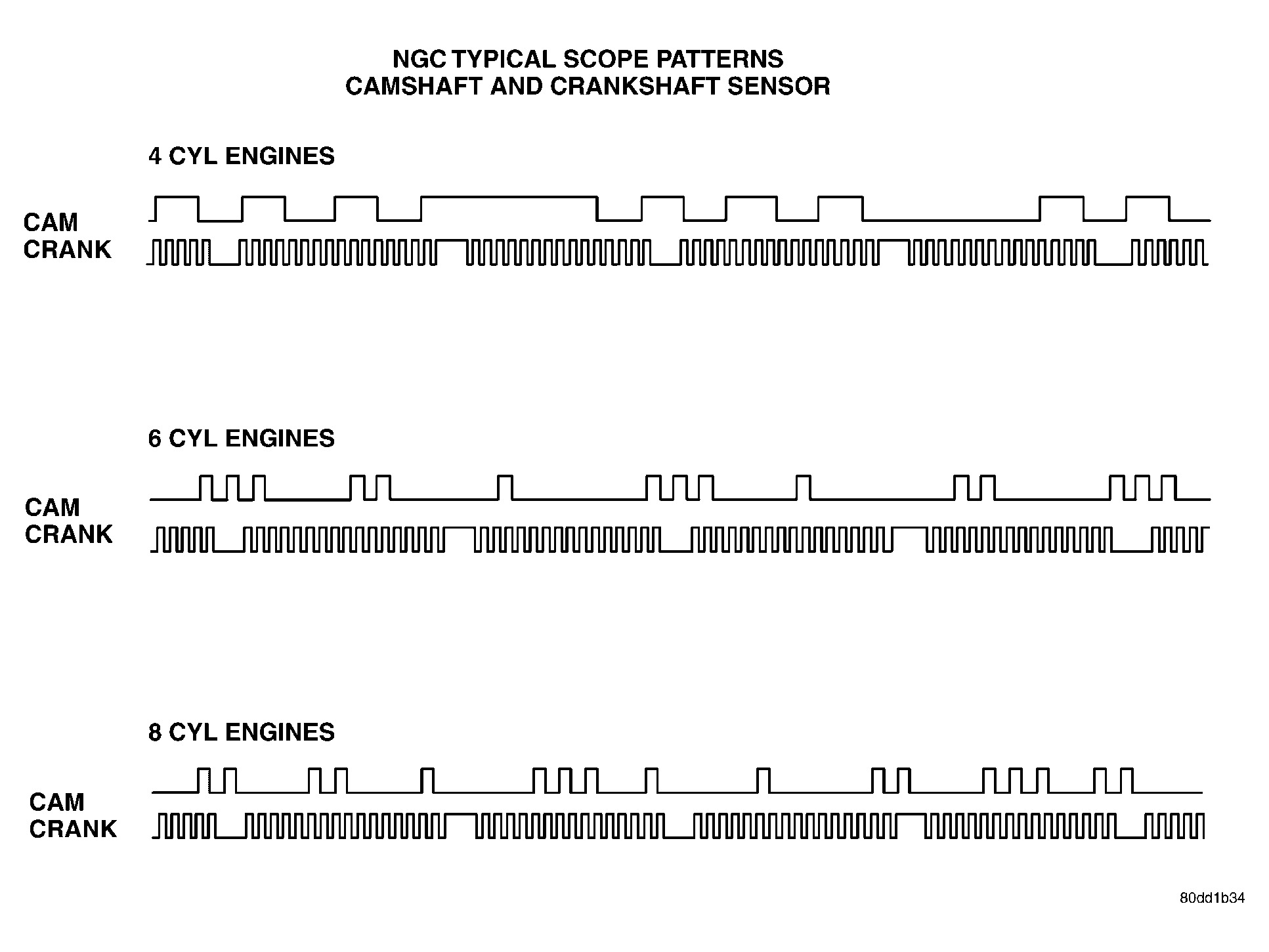

Fig 1: Camshaft And Crankshaft Sensor Scope Pattern Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
