Accelerator Pedal Position Sensor (1.6L/Diesel) - 10 Way

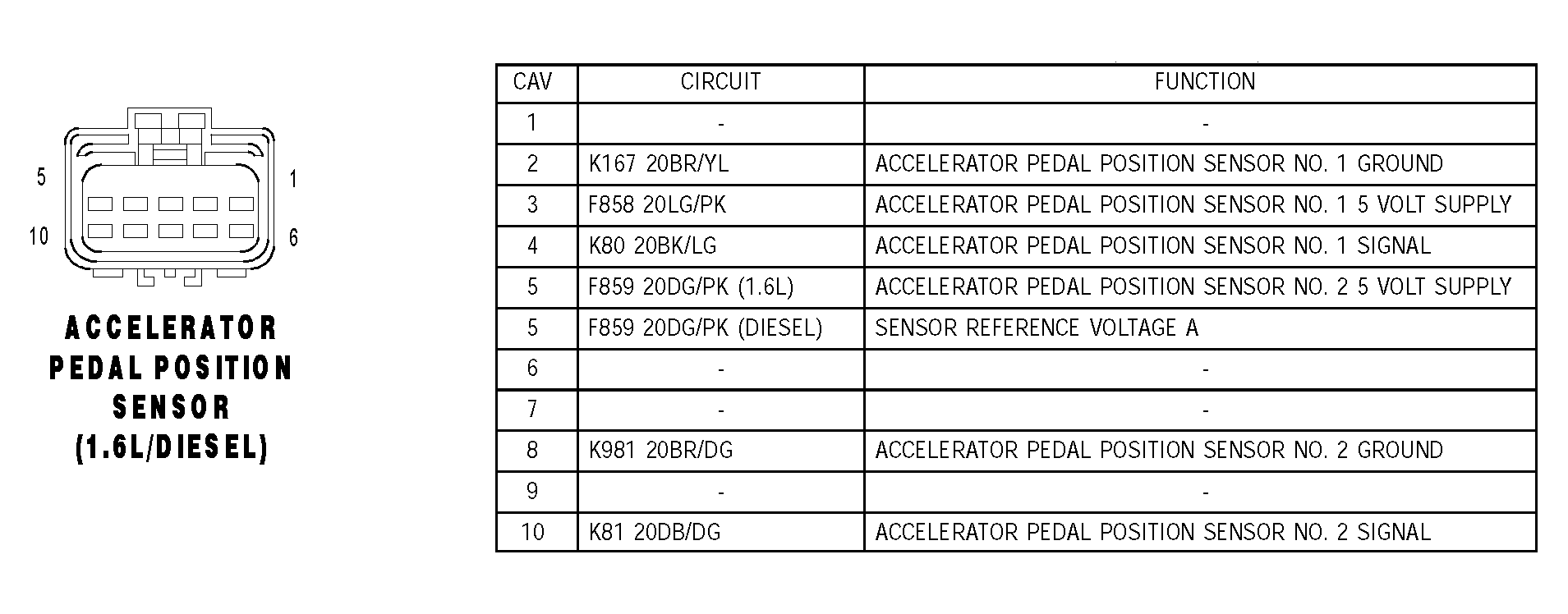

Fig 1: Accelerator Pedal Position Sensor (1.6L/Diesel) - 10 Way
G04548925Courtesy of DAIMLERCHRYSLER CORP.
