Component Location Graphics

WARNING: This page is about a different car, the 2005 Dodge Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

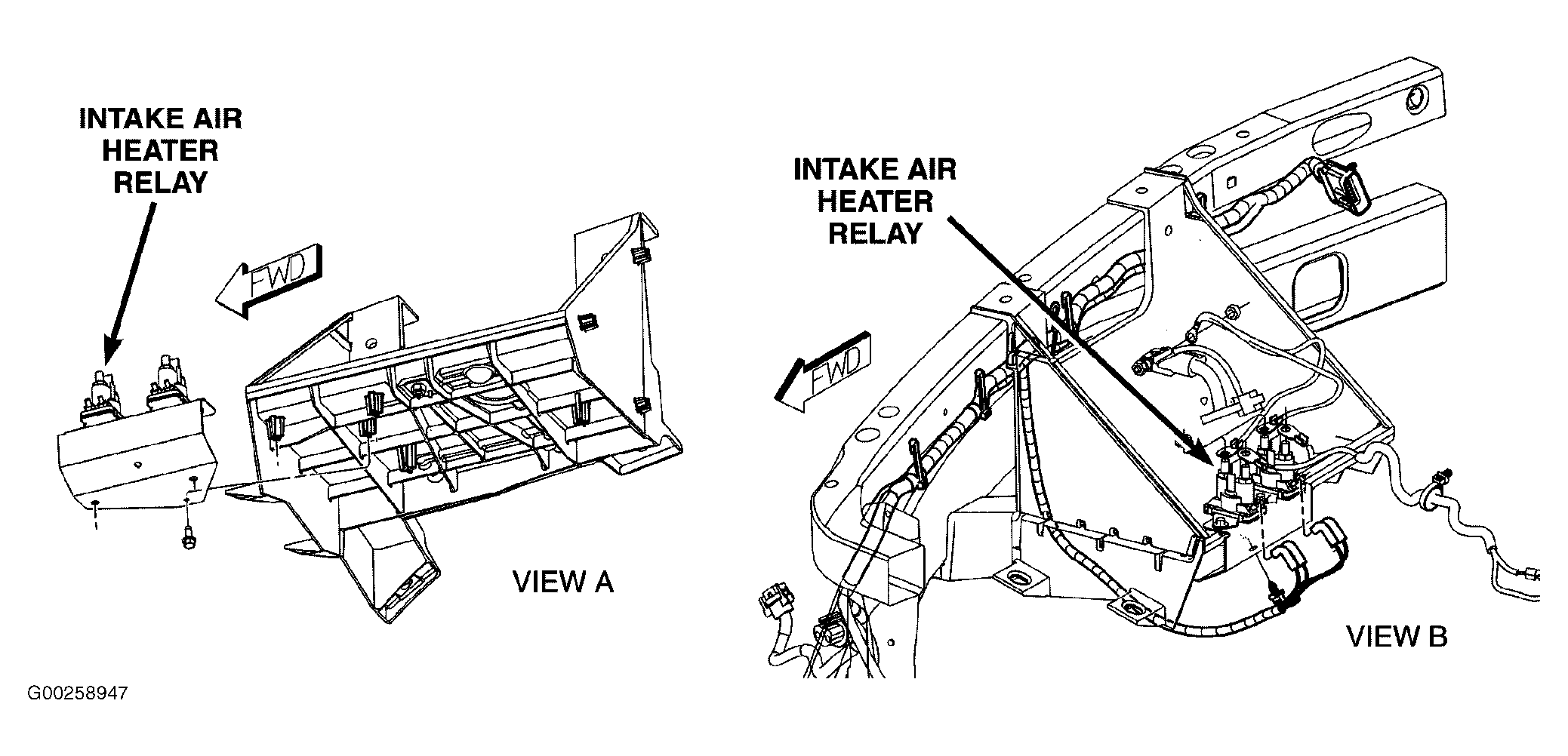

Fig 1: Right Front Bumper & Right Battery Tray

G00258947

Courtesy of DAIMLERCHRYSLER CORP.

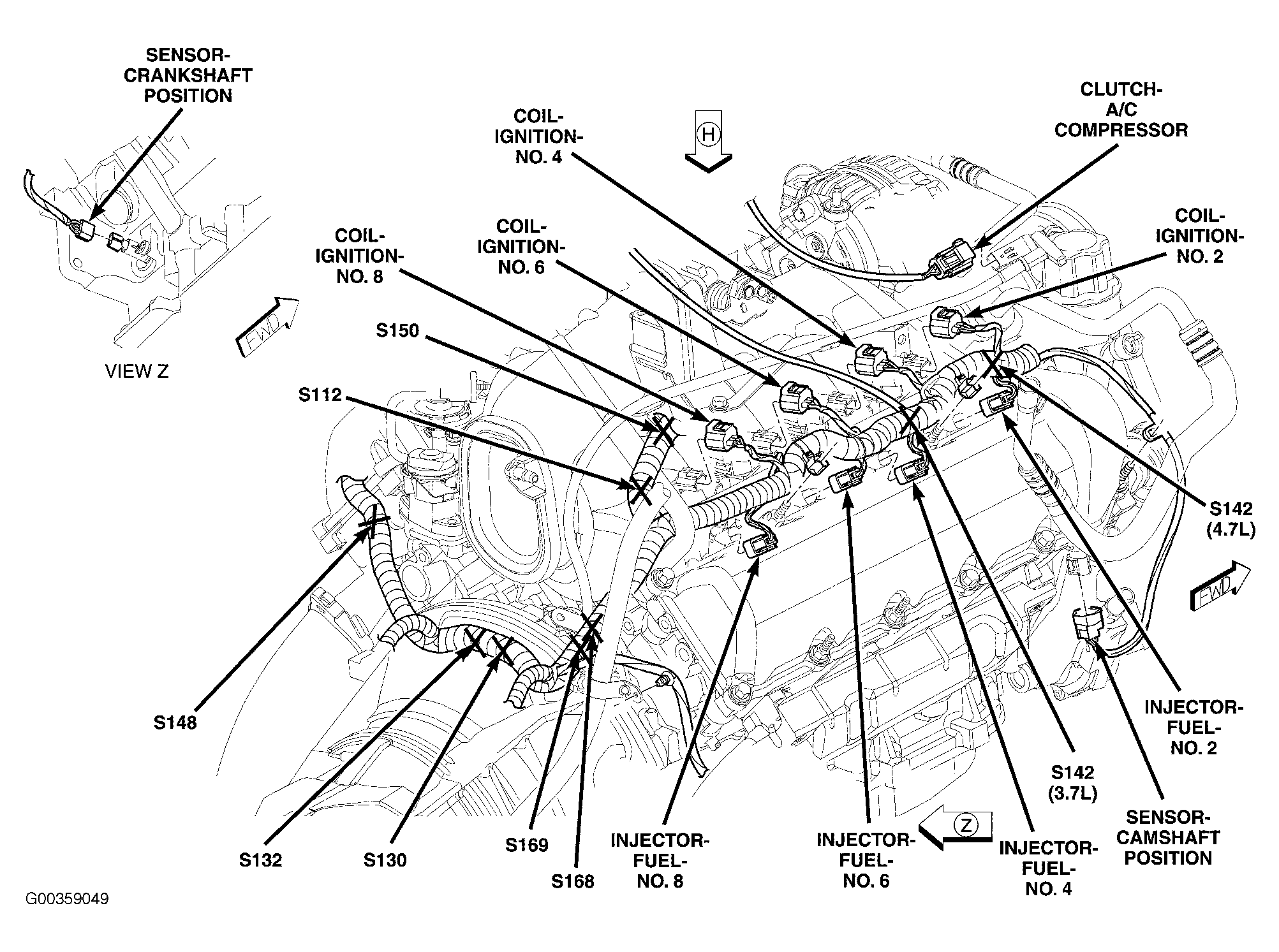

Fig 2: Right Side Of Engine (4.7L)

G00359049

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Right Rear Of Engine Compartment

G00359050

Courtesy of DAIMLERCHRYSLER CORP.

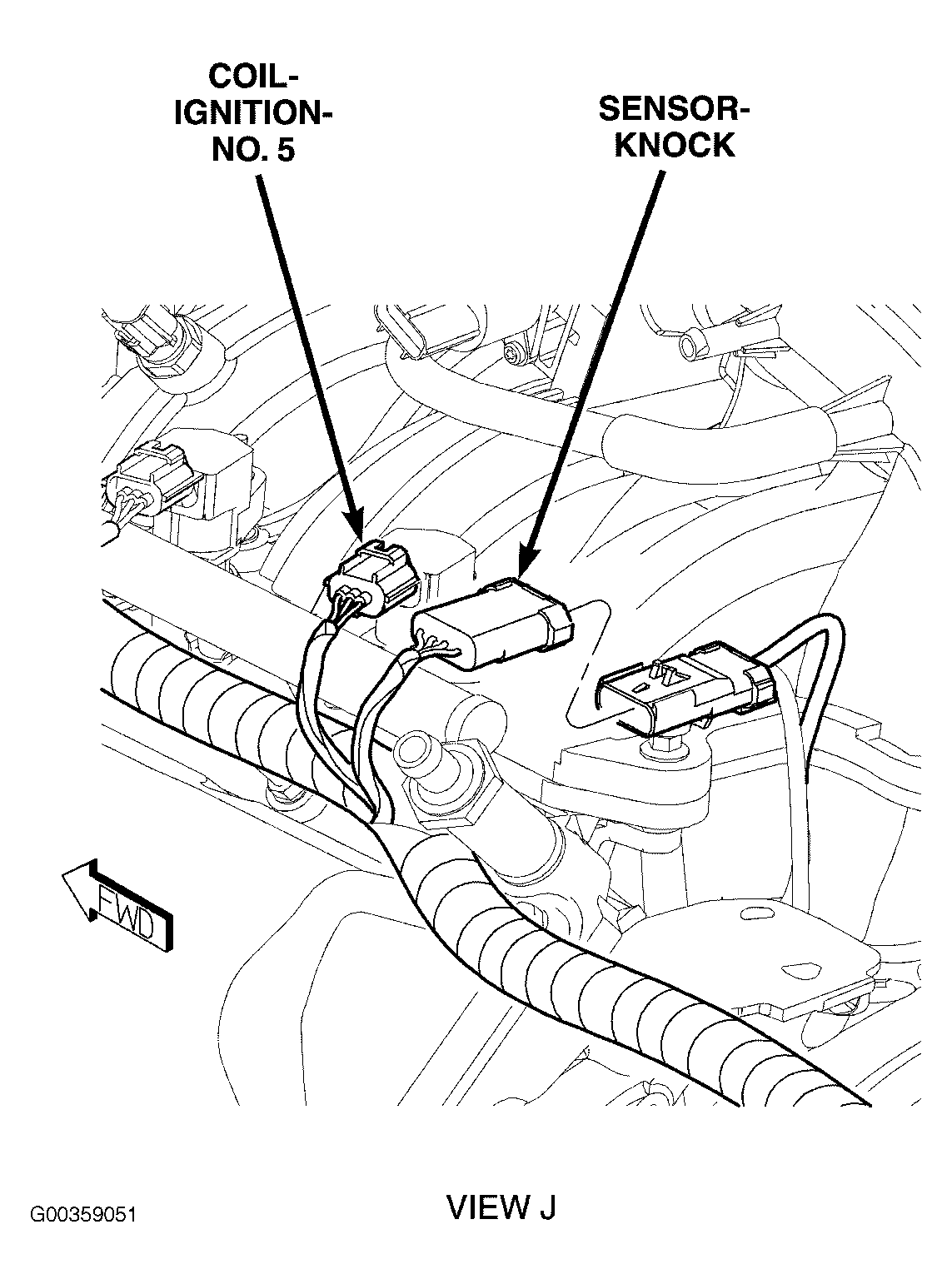

Fig 4: Top Left Rear Of Engine (3.7L & 5.7L)

G00359051

Courtesy of DAIMLERCHRYSLER CORP.

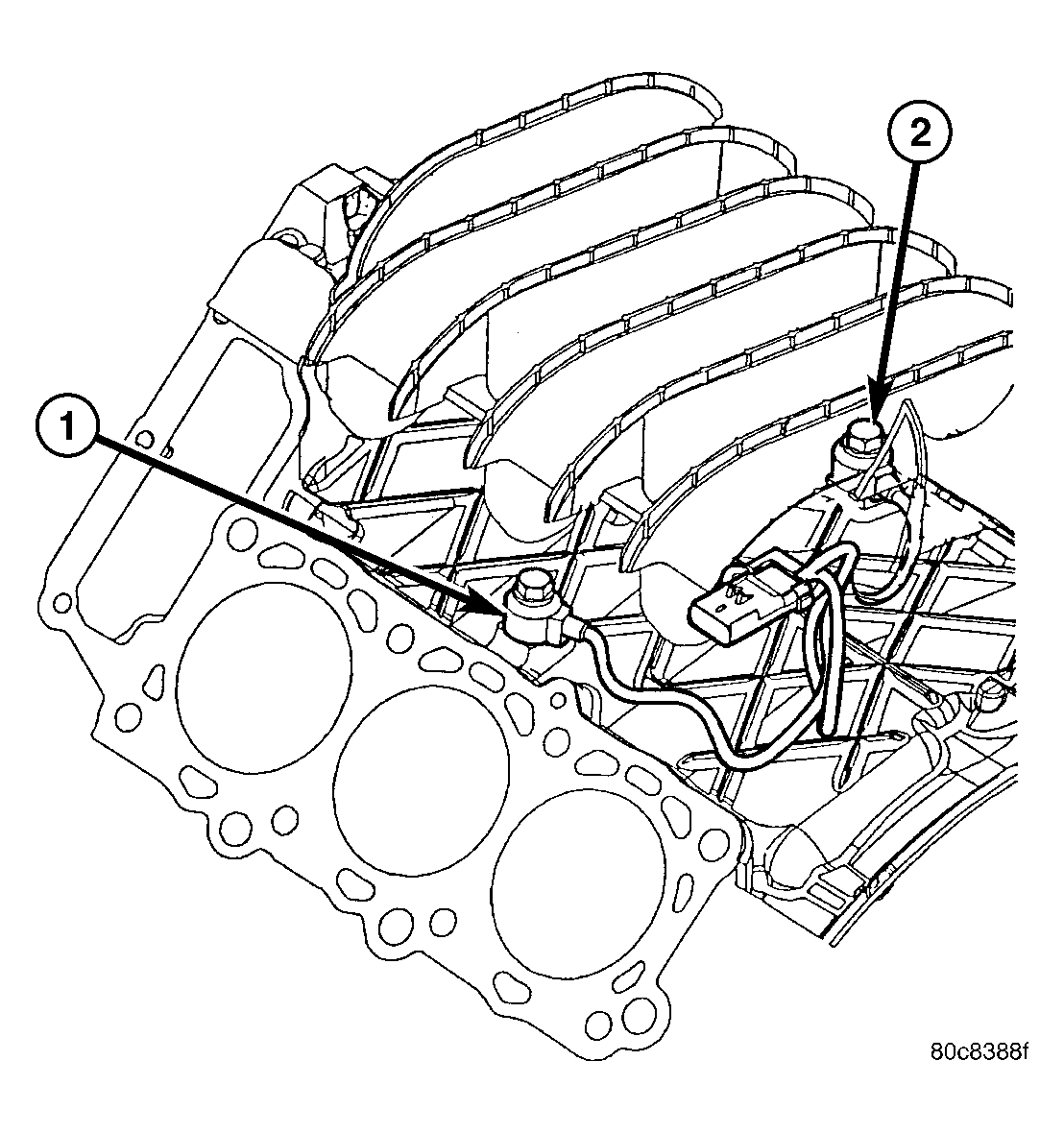

Fig 5: KNOCK SENSOR - 3.7L V-6

GC0006179

Courtesy of CHRYSLER LLC

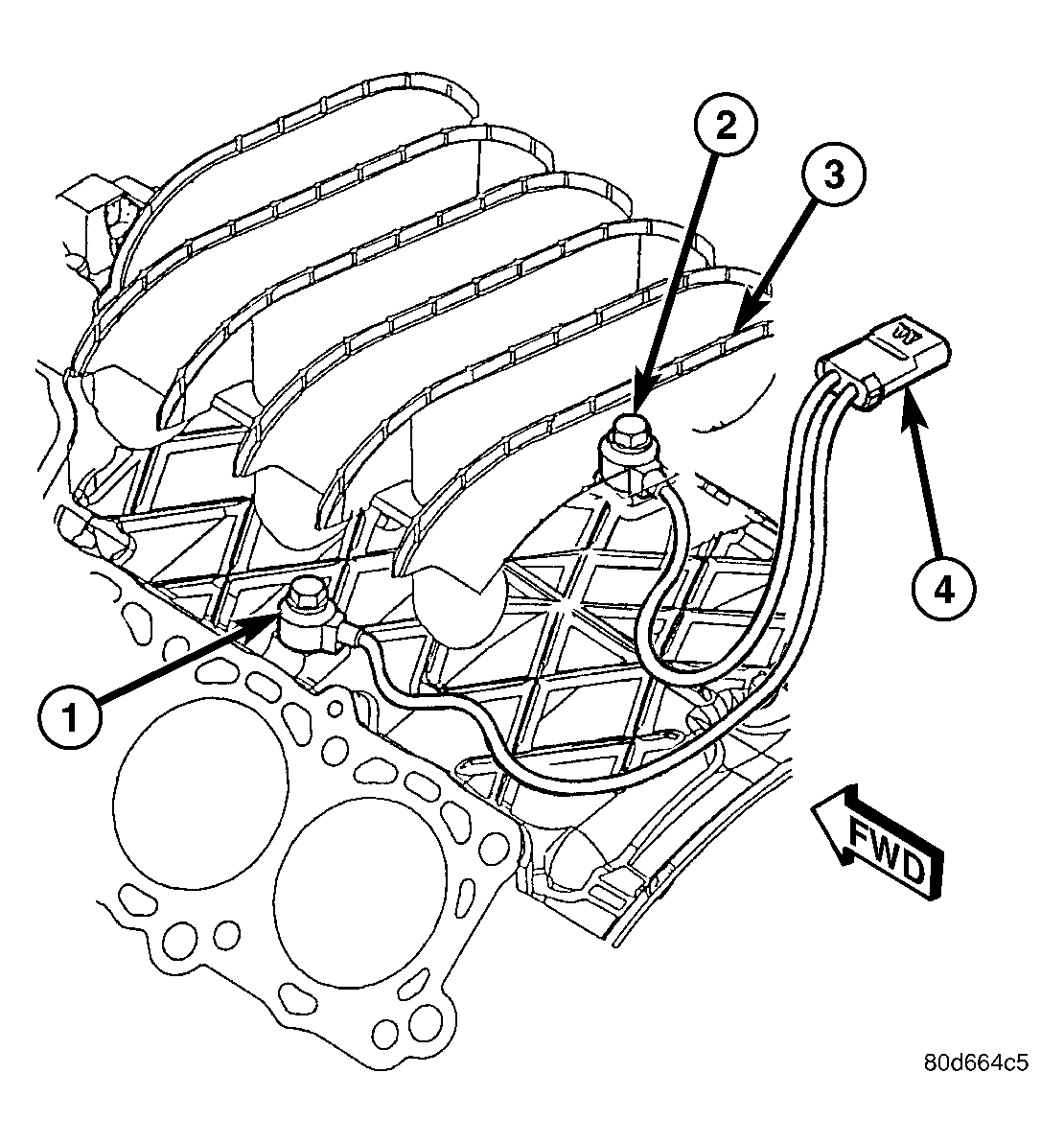

Fig 6: KNOCK SENSOR - 4.7L V-8

GC0006180

Courtesy of CHRYSLER LLC

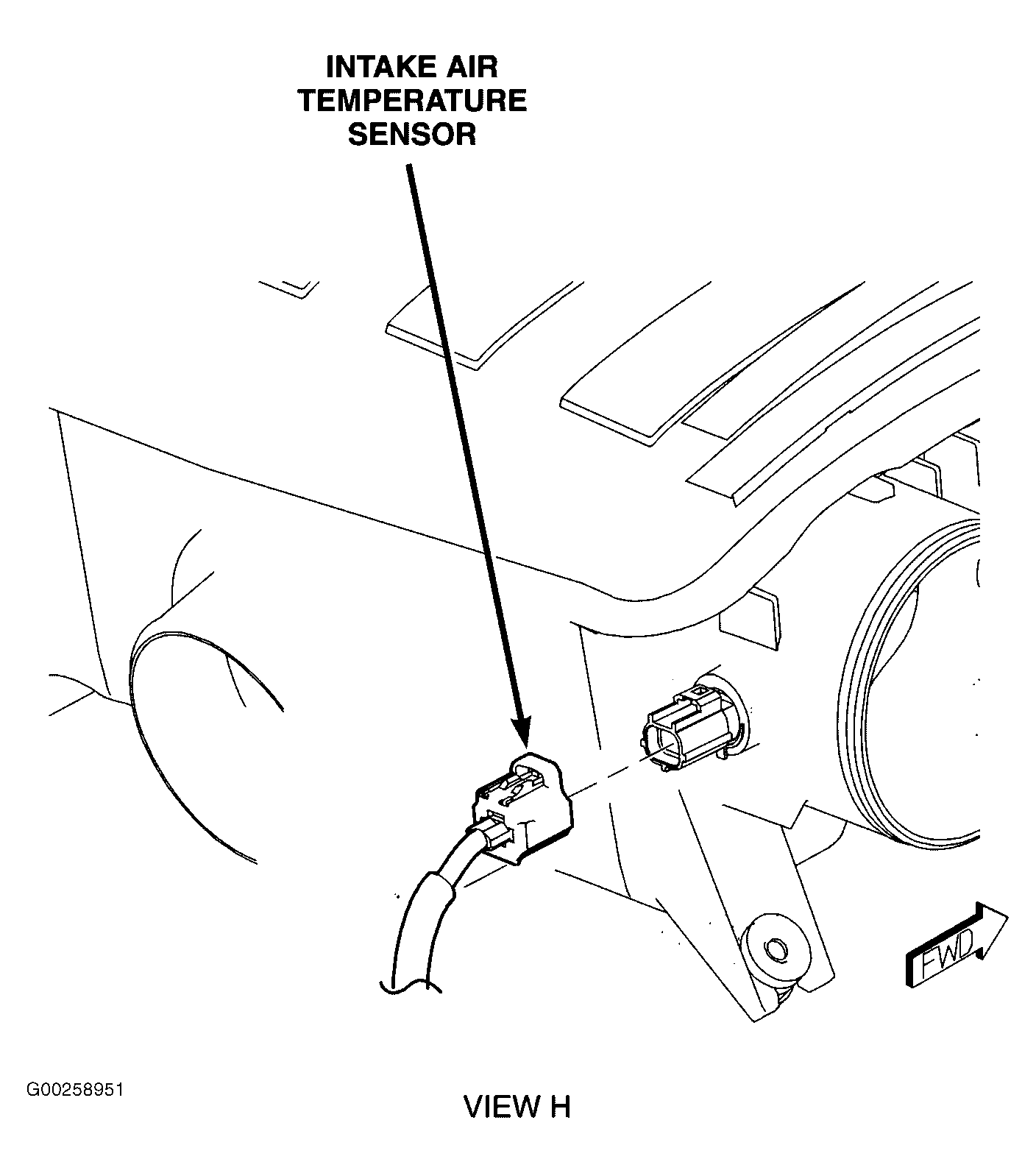

Fig 7: Right Top Of Engine (3.7L & 4.7L)

G00258951

Courtesy of DAIMLERCHRYSLER CORP.

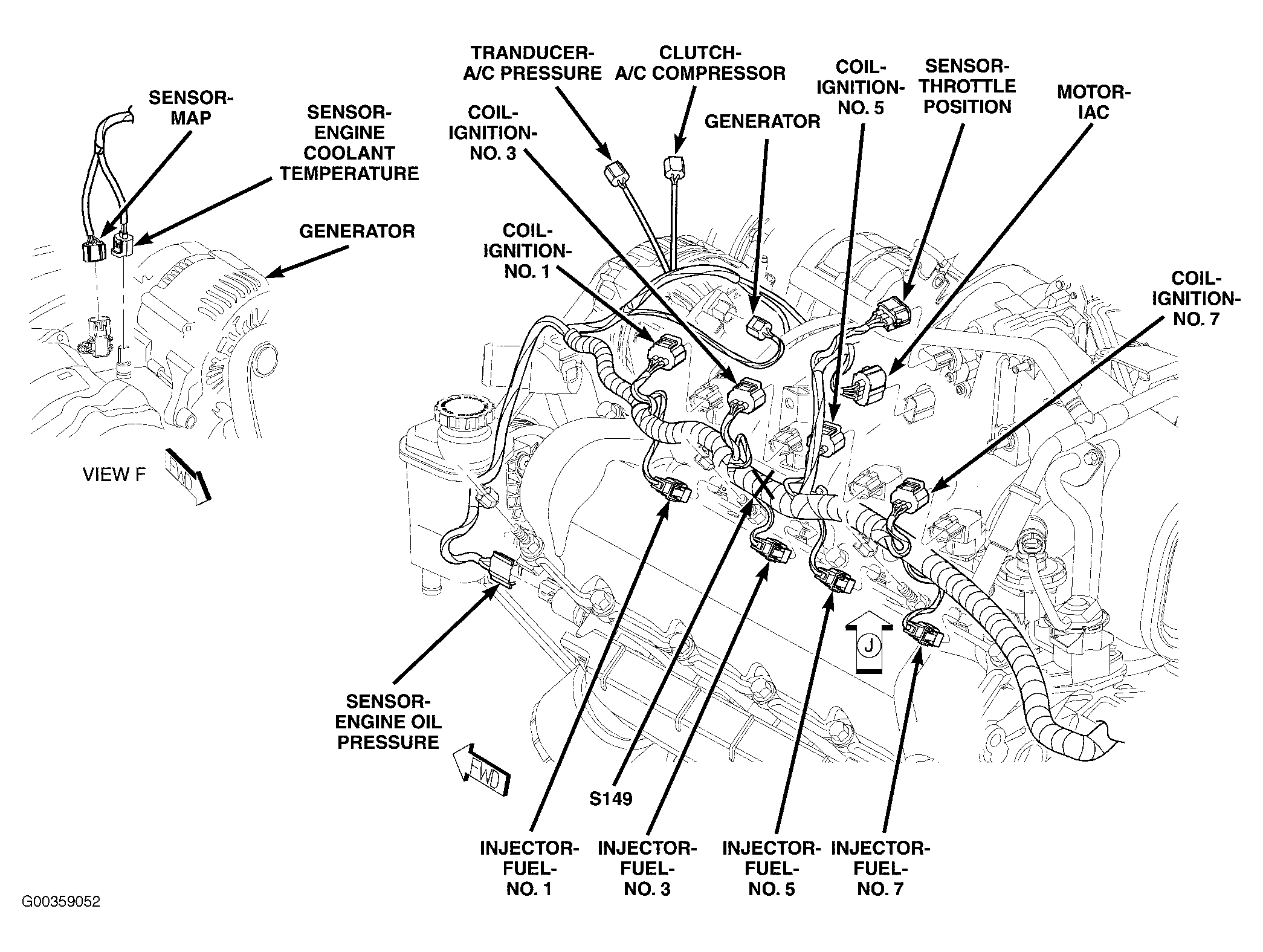

Fig 8: Left Side Of Engine (3.7L & 4.7L)

G00359052

Courtesy of DAIMLERCHRYSLER CORP.

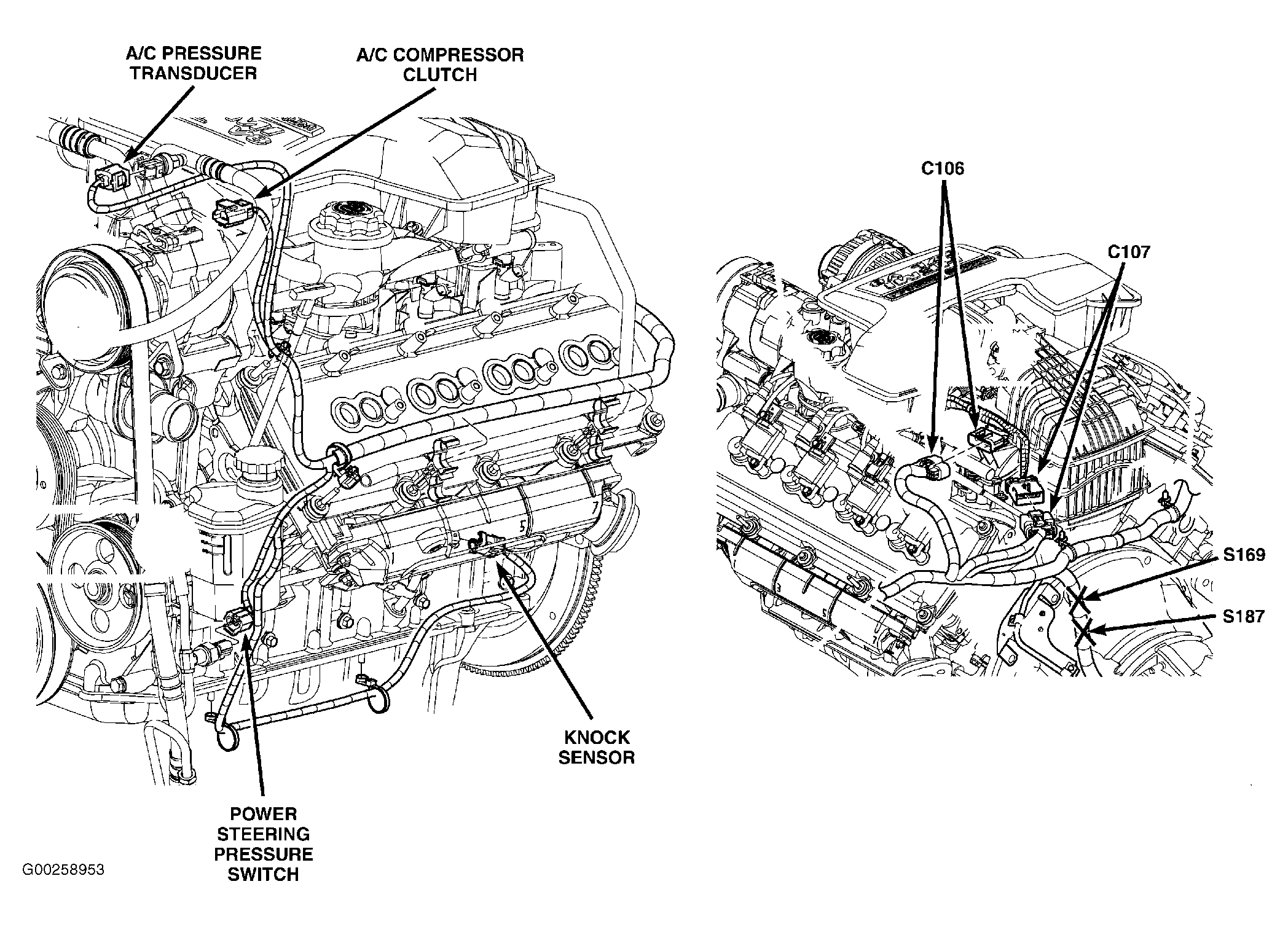

Fig 9: Left Side Of Engine (5.7L)

G00258953

Courtesy of DAIMLERCHRYSLER CORP.

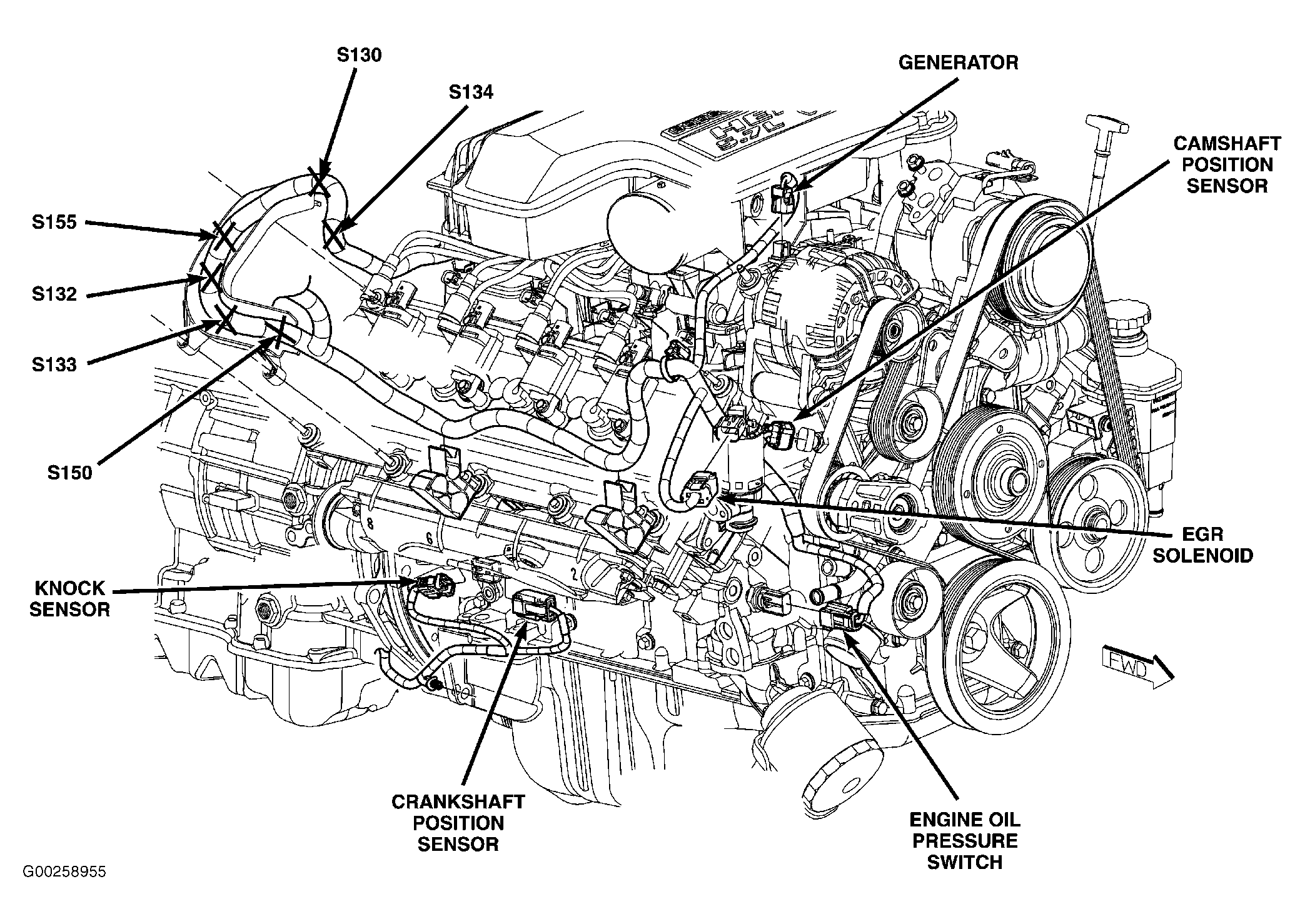

Fig 10: Right Side Of Engine (5.7L)

G00258955

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Engine (5.9L Diesel)

G00359056

Courtesy of DAIMLERCHRYSLER CORP.

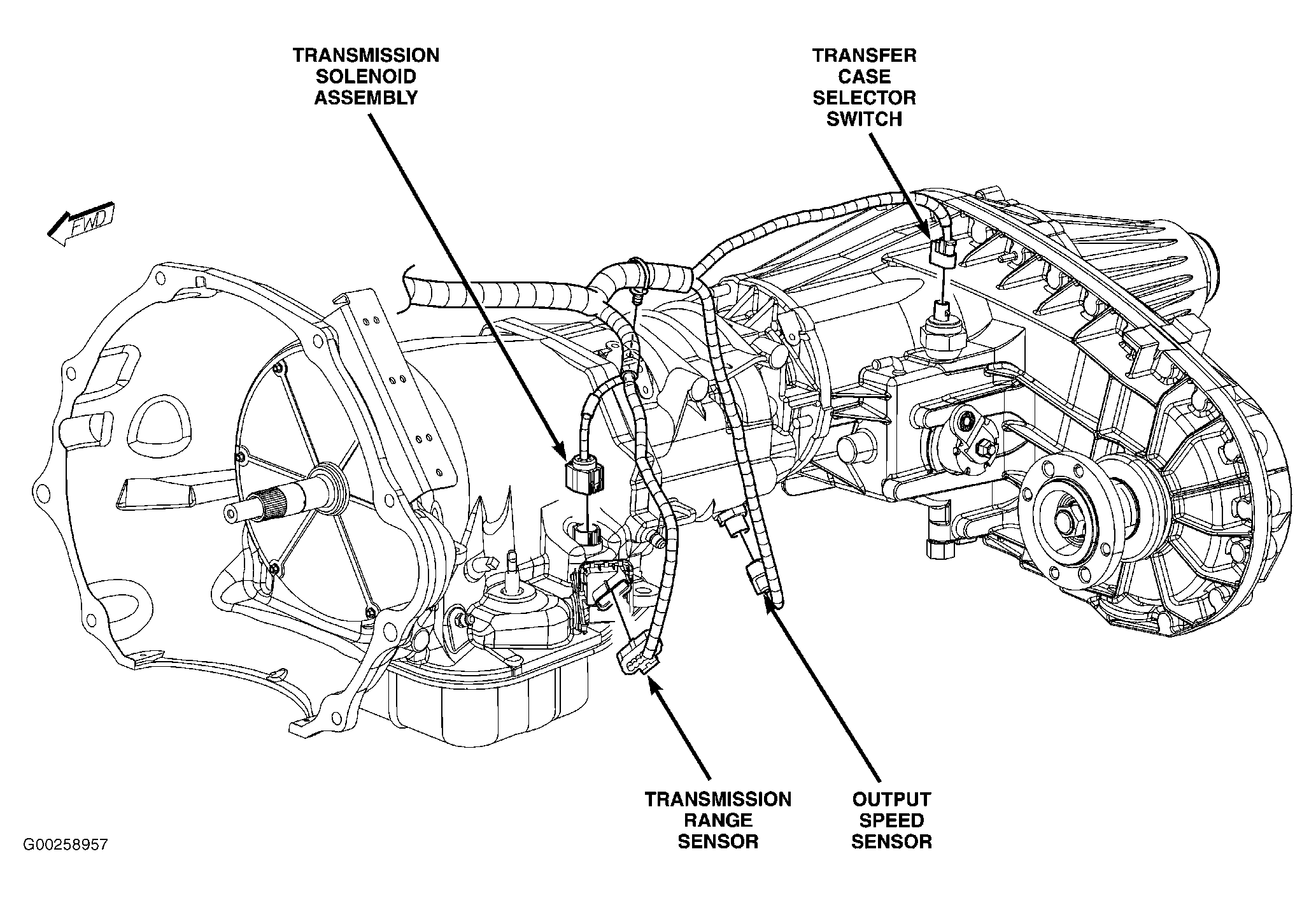

Fig 12: Automatic Transmission & Transfer Case (5.9L Diesel)

G00258957

Courtesy of DAIMLERCHRYSLER CORP.

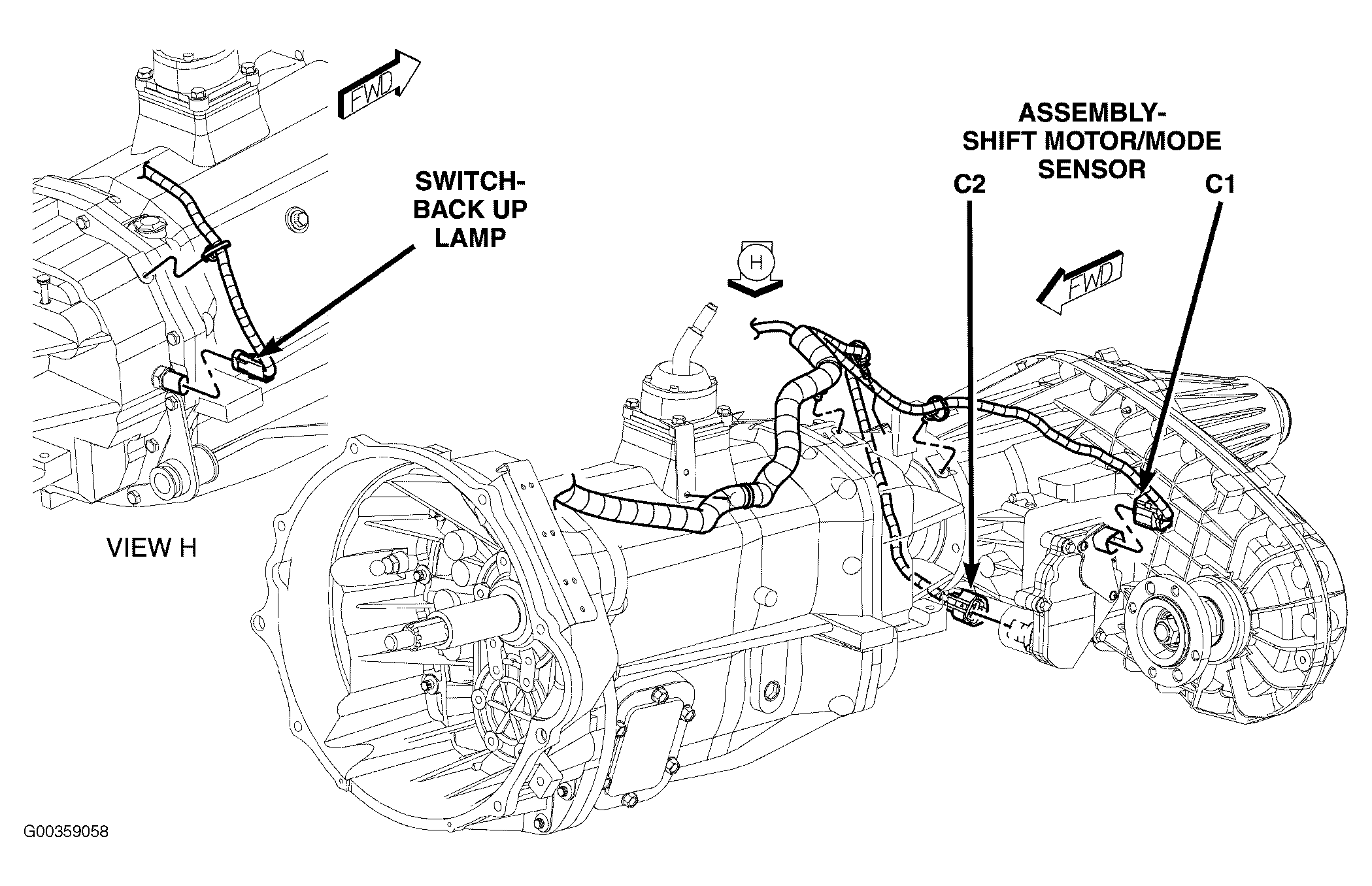

Fig 13: Front Of Manual Transmission & Transfer Case (5.9L Diesel)

G00359058

Courtesy of DAIMLERCHRYSLER CORP.

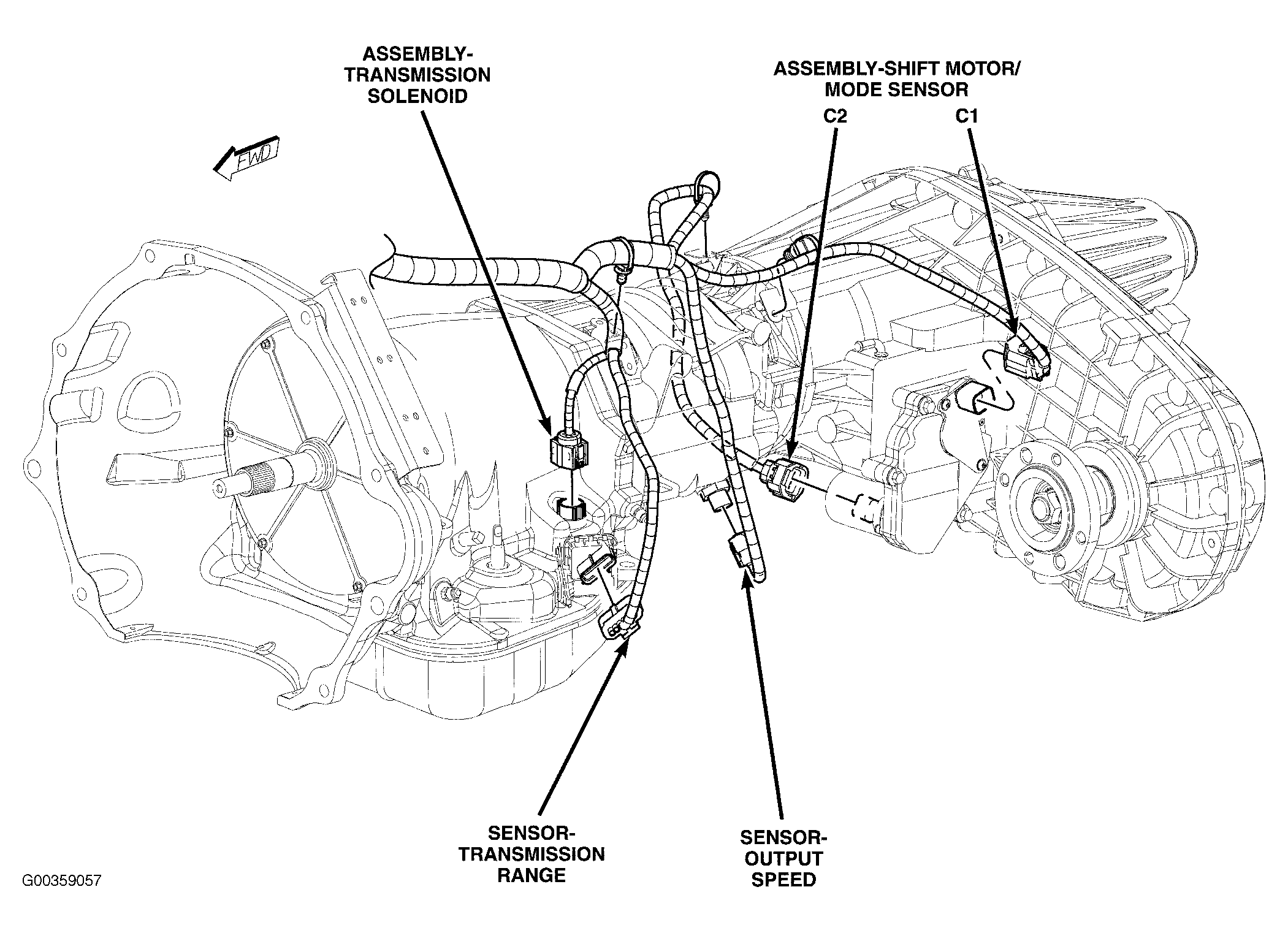

Fig 14: Automatic Transmission & Transfer Case (5.9L Diesel)

G00359057

Courtesy of DAIMLERCHRYSLER CORP.

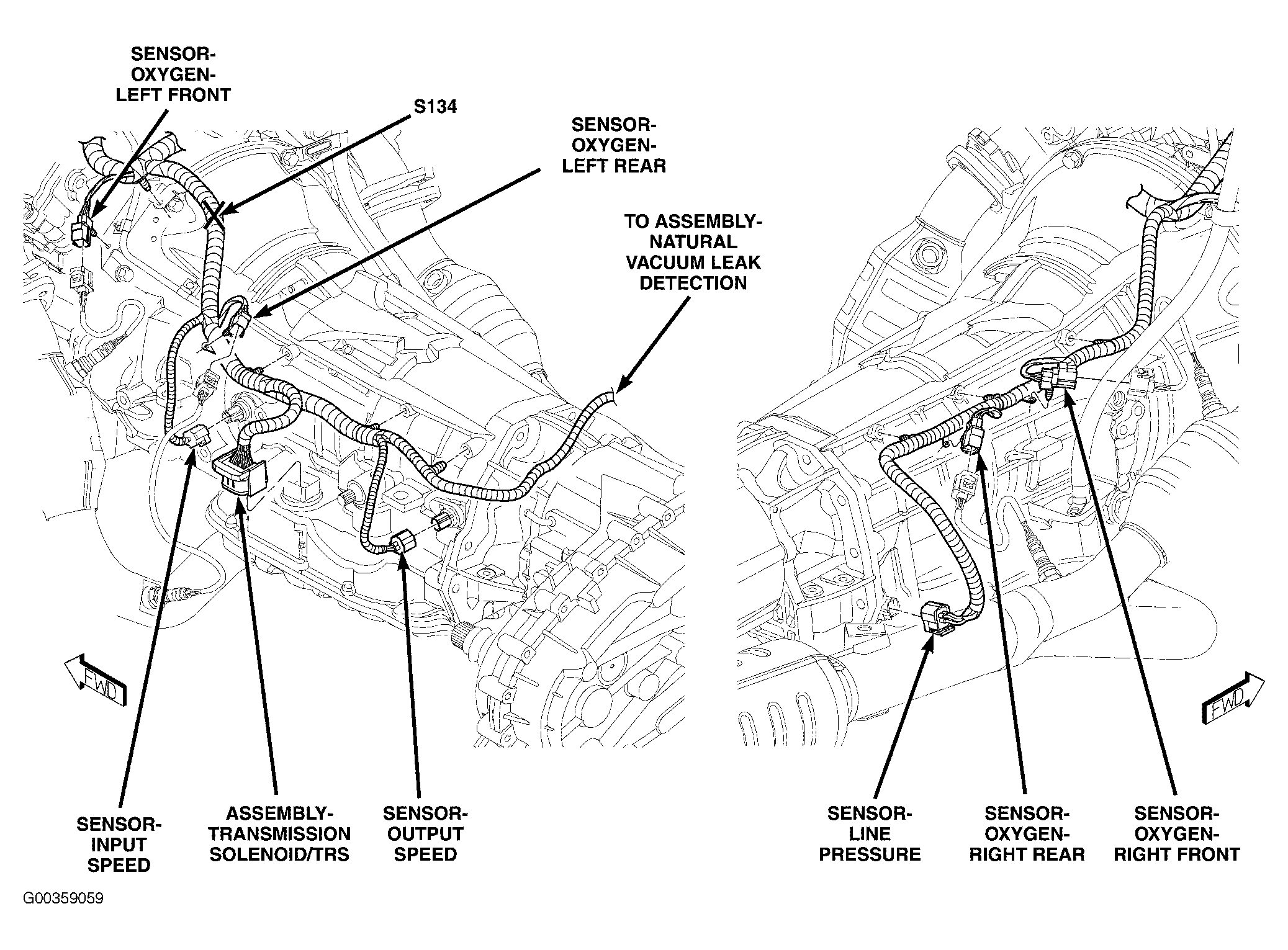

Fig 15: Automatic Transmission (RFE) (3.7L & 4.7L)

G00359059

Courtesy of DAIMLERCHRYSLER CORP.

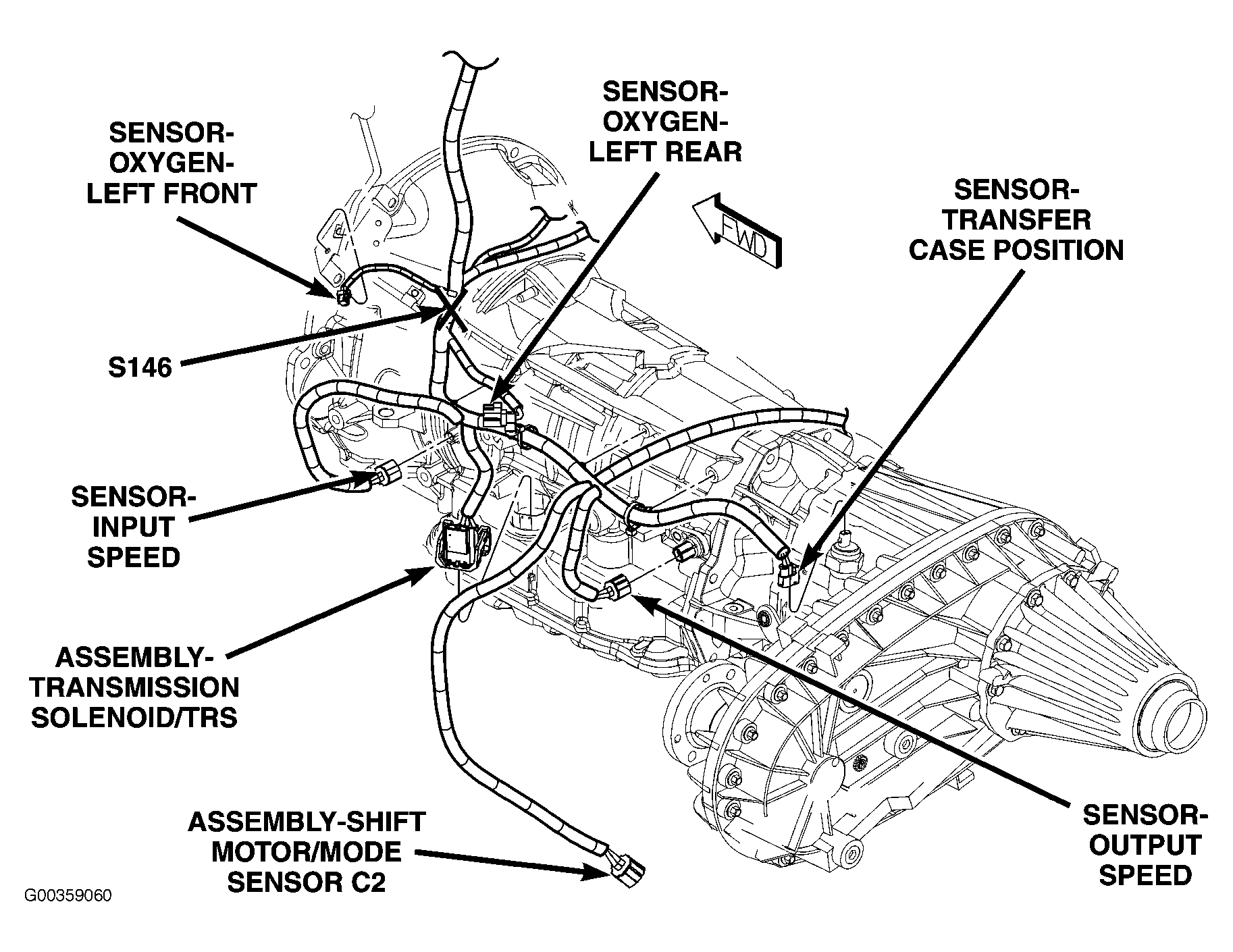

Fig 16: Left Side Of Automatic Transmission & Transfer Case (RFE) (4.7L & 5.7L)

G00359060

Courtesy of DAIMLERCHRYSLER CORP.

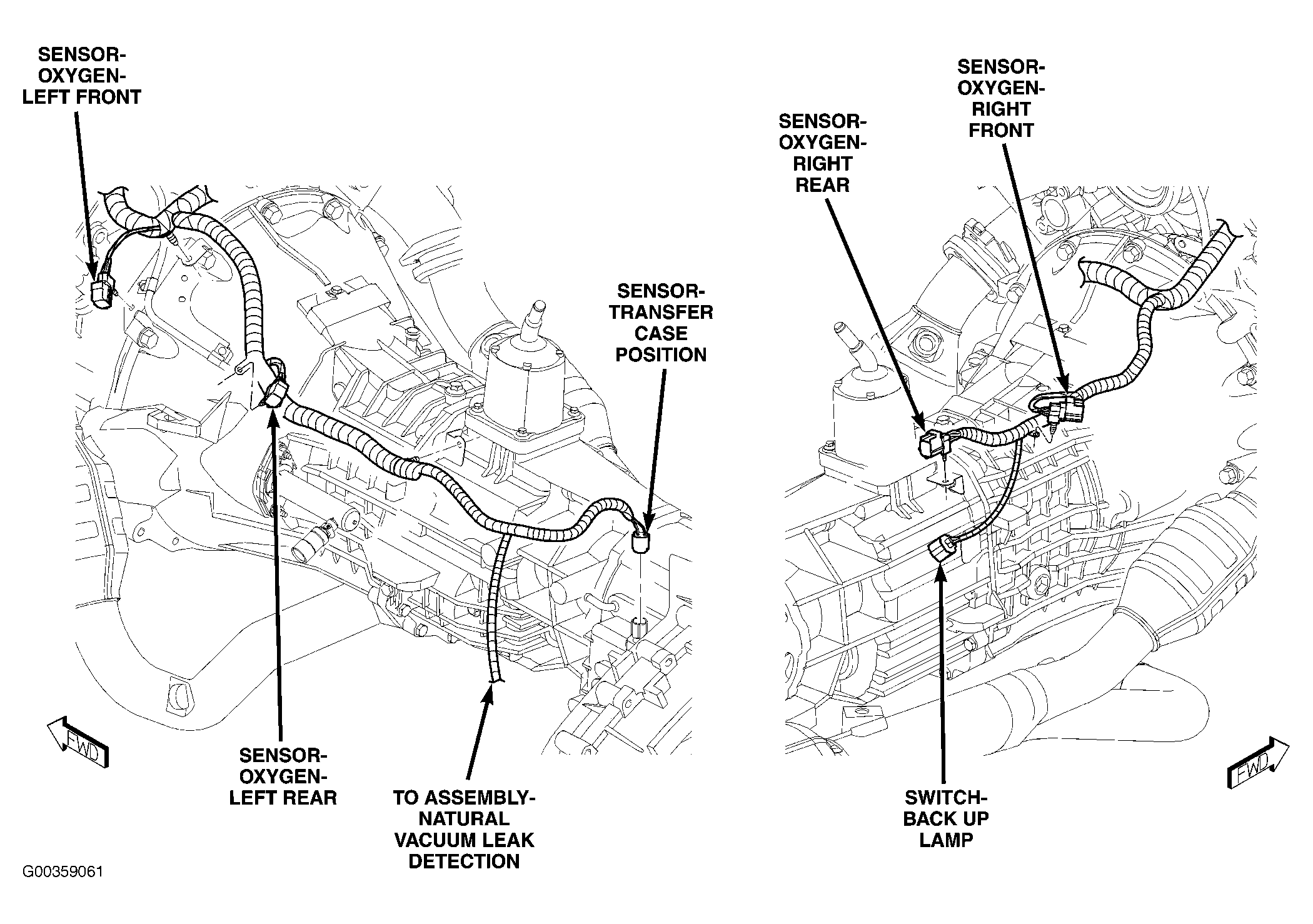

Fig 17: Manual Transmission (4x4) (4.7L)

G00359061

Courtesy of DAIMLERCHRYSLER CORP.

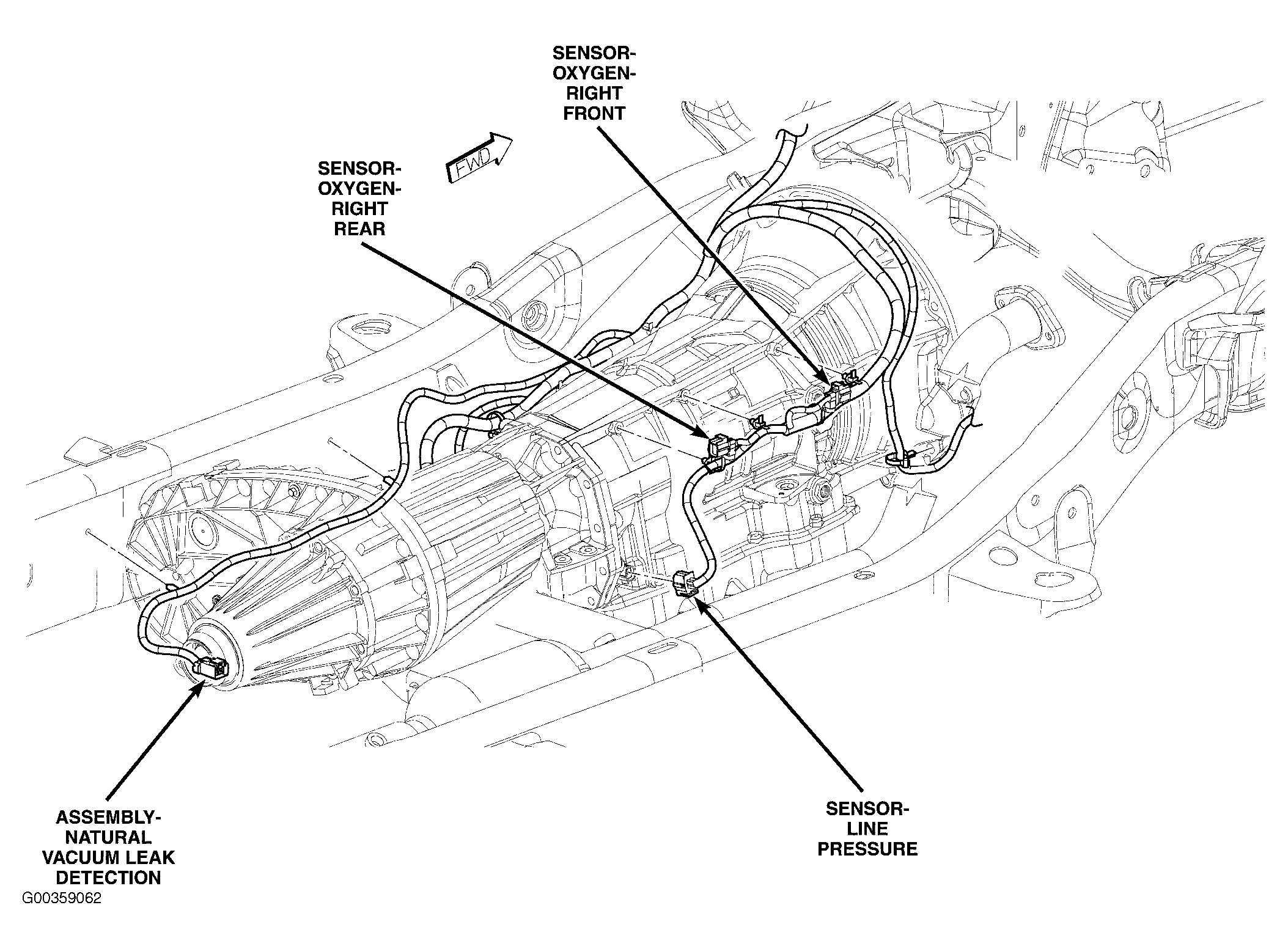

Fig 18: Right Side Of Automatic Transmission (RFE) (3.7L, 4.7L & 5.7L)

G00359062

Courtesy of DAIMLERCHRYSLER CORP.

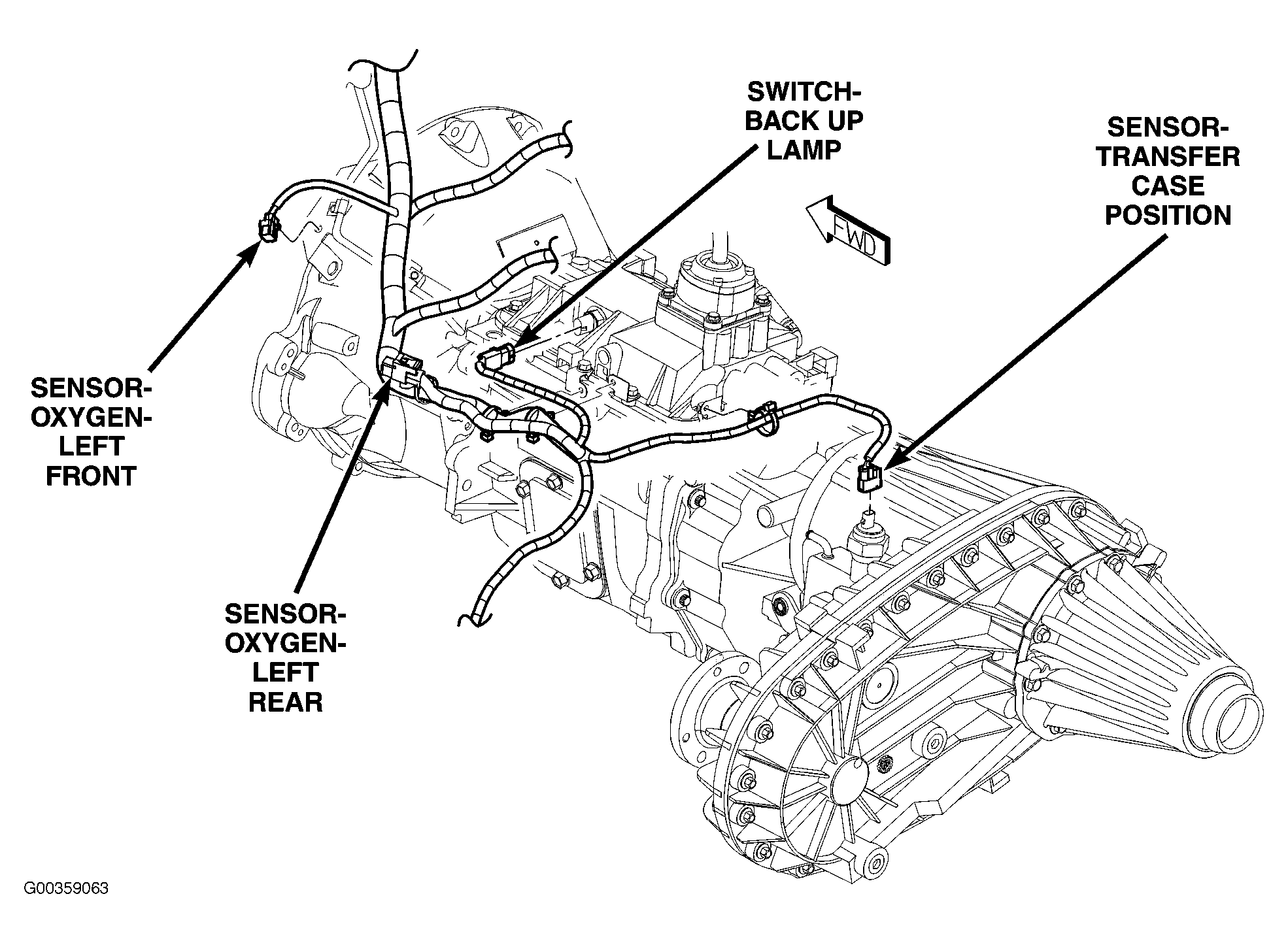

Fig 19: Manual Transmission & Transfer Case (5.7L & 5.9L Diesel)

G00359063

Courtesy of DAIMLERCHRYSLER CORP.

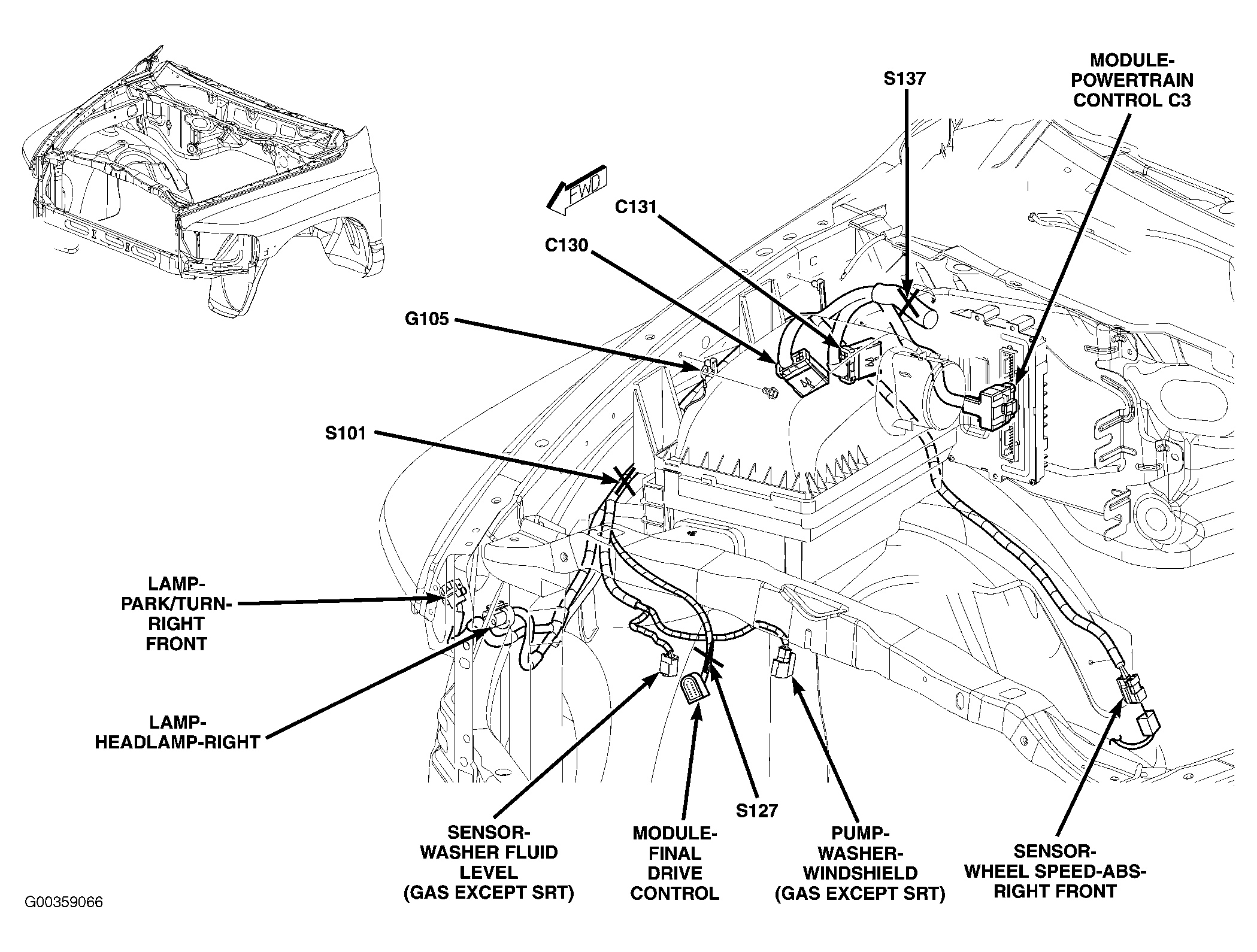

Fig 20: Right Side Of Engine Compartment

G00359066

Courtesy of DAIMLERCHRYSLER CORP.

Fig 21: Left Rear Of Engine Compartment

G00359067

Courtesy of DAIMLERCHRYSLER CORP.

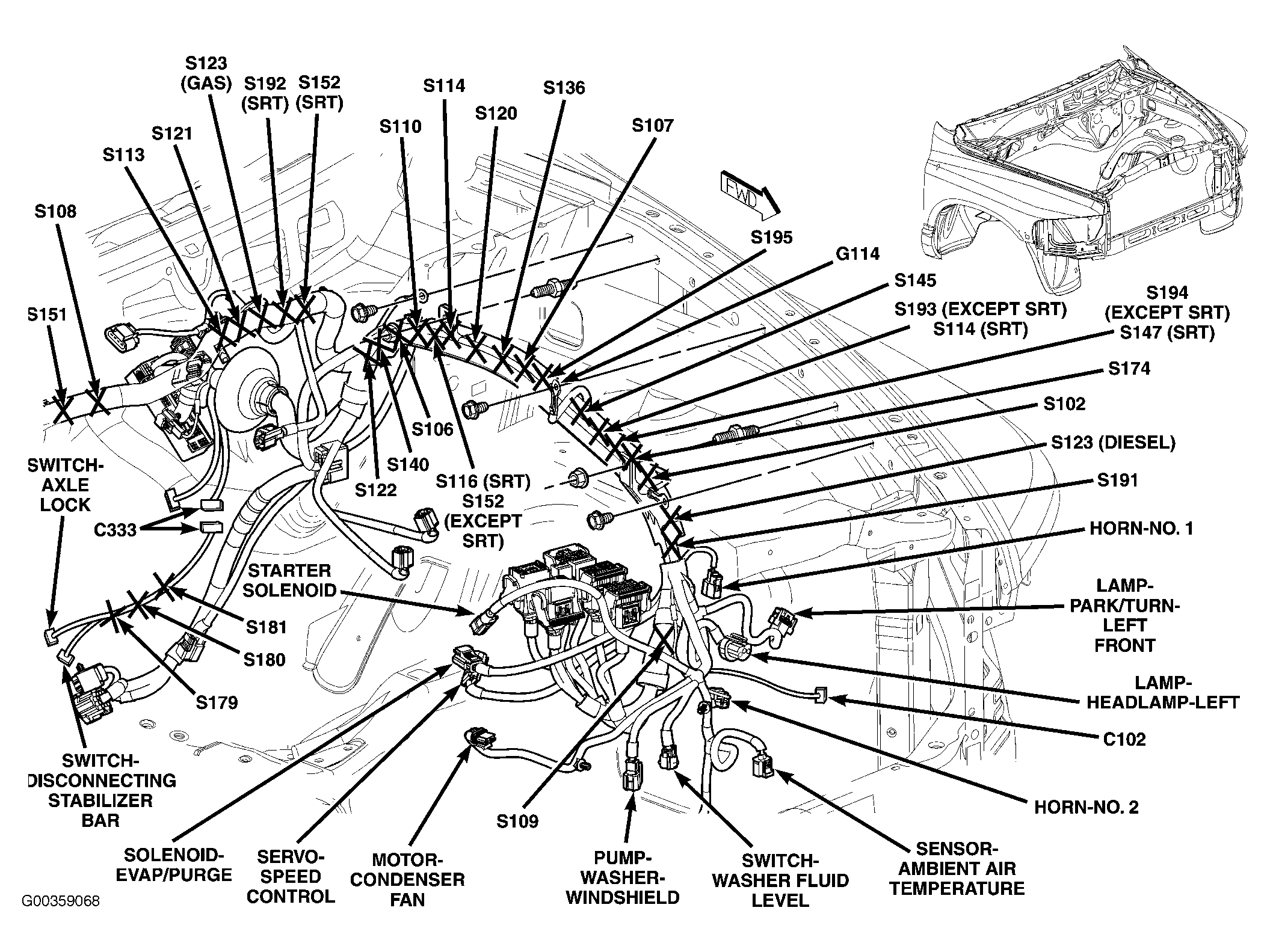

Fig 22: Left Side Of Engine Compartment

G00359068

Courtesy of DAIMLERCHRYSLER CORP.

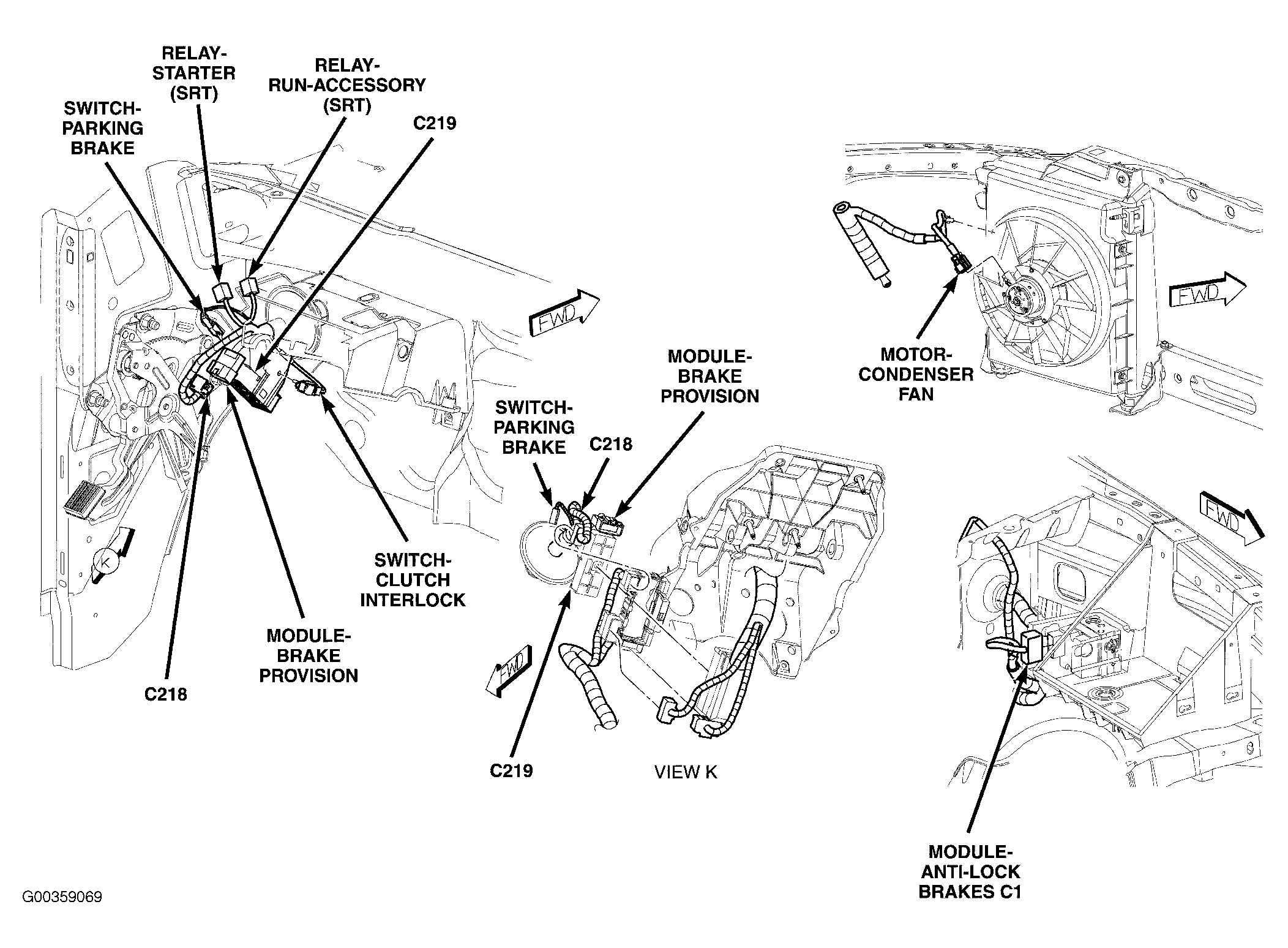

Fig 23: Engine Compartment

G00359069

Courtesy of DAIMLERCHRYSLER CORP.

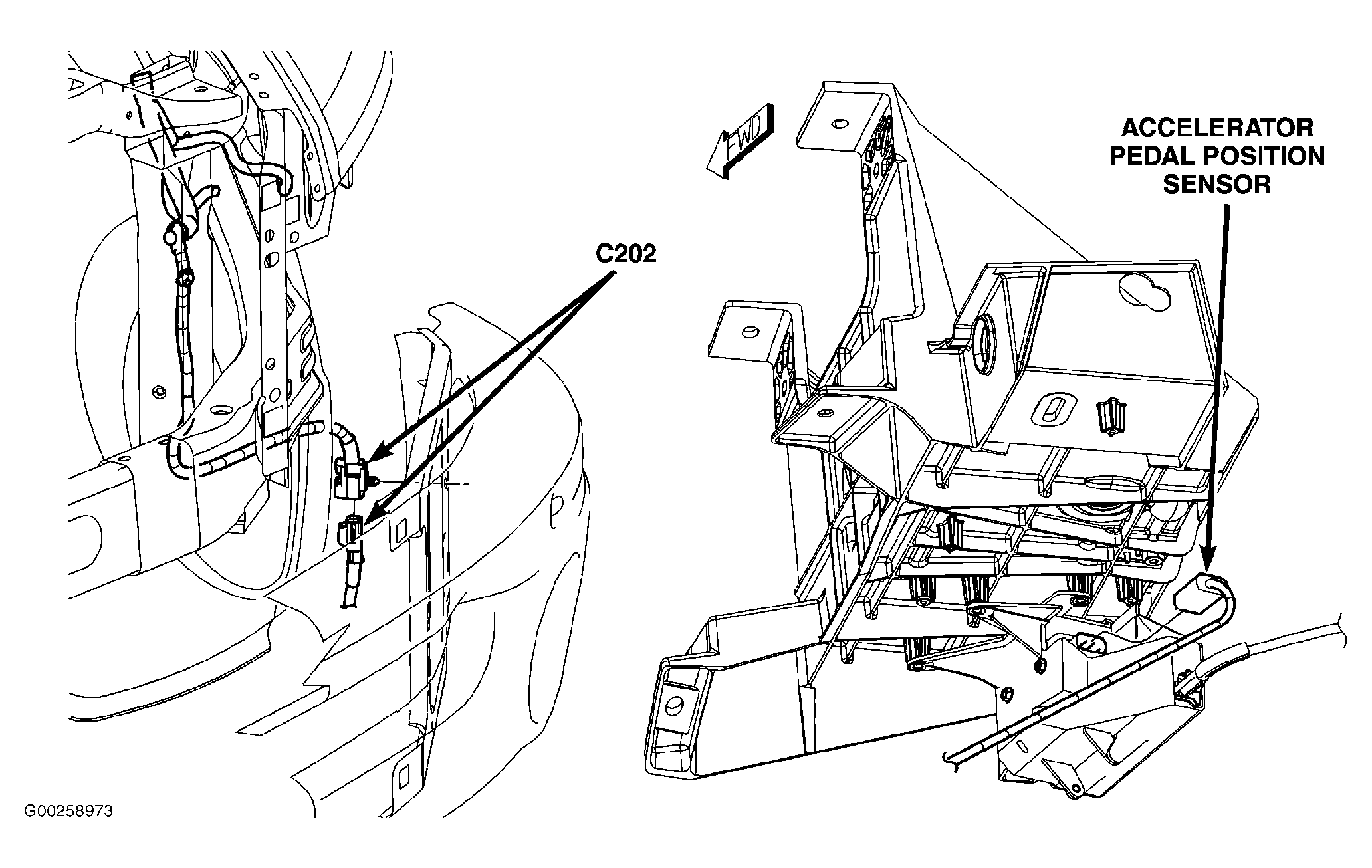

Fig 24: Left Front Bumper & Battery Tray

G00258973

Courtesy of DAIMLERCHRYSLER CORP.

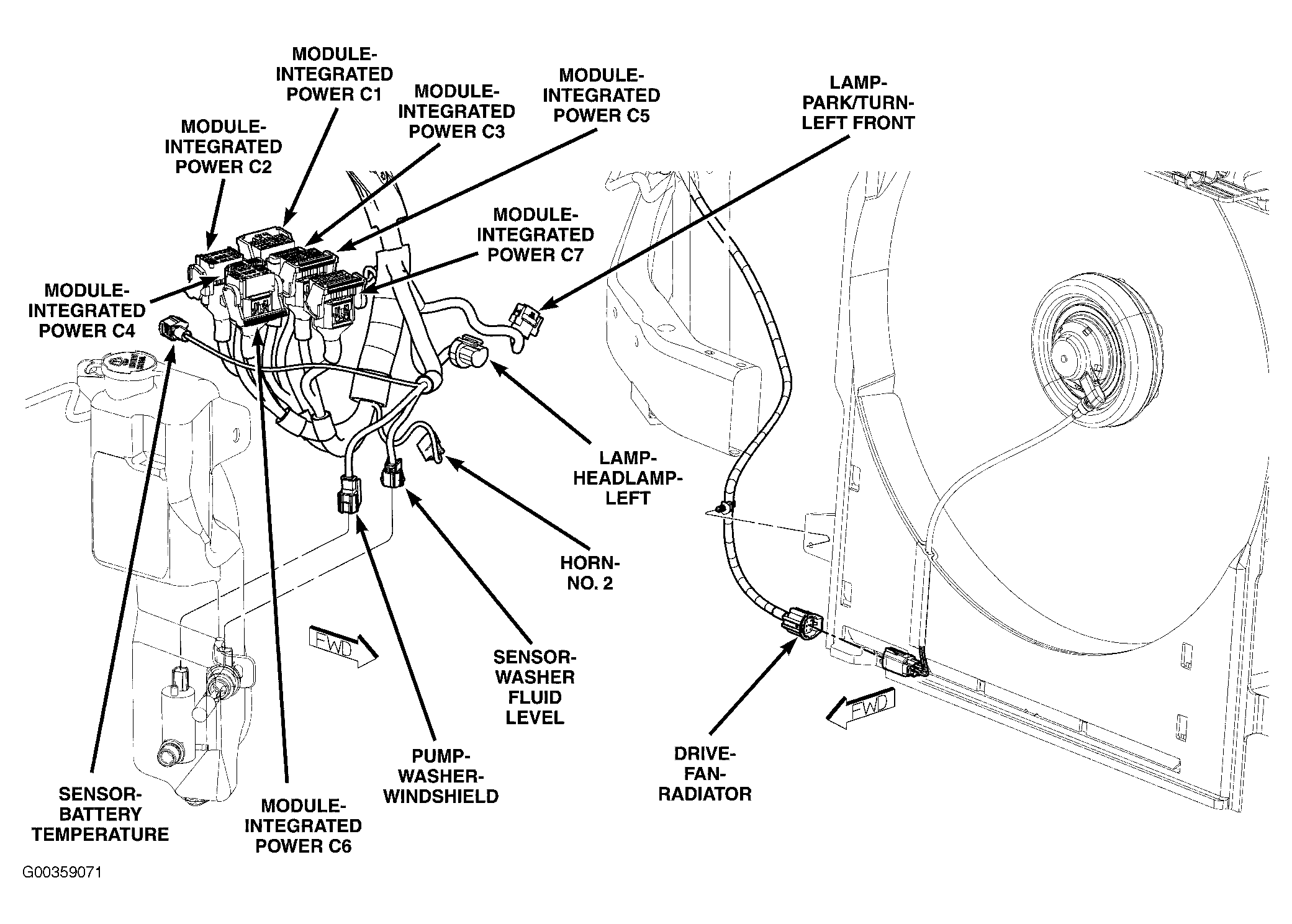

Fig 25: Integrated Power Module & Fan

G00359071

Courtesy of DAIMLERCHRYSLER CORP.

Fig 26: Steering Column

G00359072

Courtesy of DAIMLERCHRYSLER CORP.

Fig 27: Left Side Of Steering Column

G00359073

Courtesy of DAIMLERCHRYSLER CORP.

Fig 28: Dash

G00359074

Courtesy of DAIMLERCHRYSLER CORP.

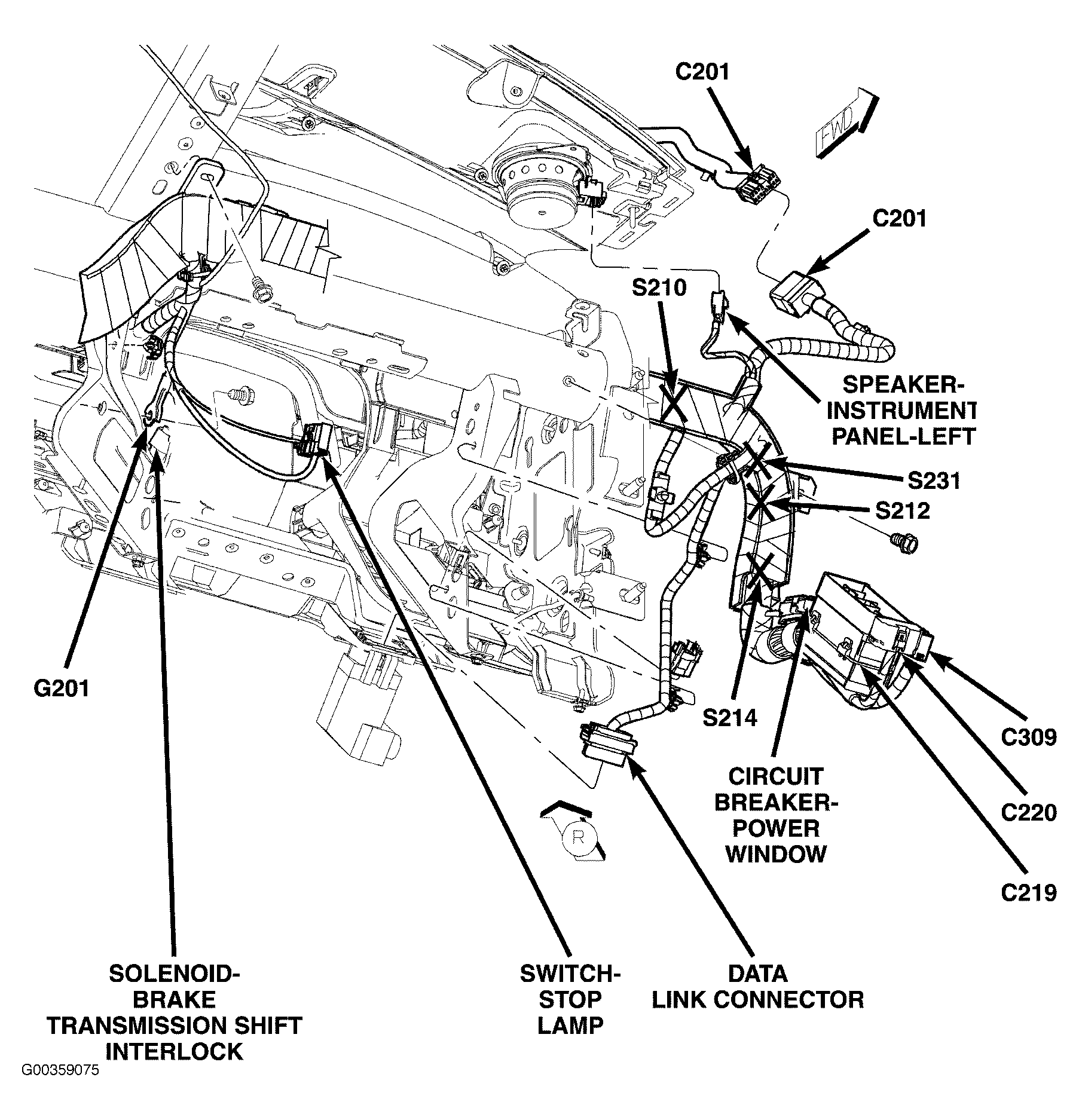

Fig 29: Left Side Of Dash

G00359075

Courtesy of DAIMLERCHRYSLER CORP.

Fig 30: Right Side Of Dash

G00359076

Courtesy of DAIMLERCHRYSLER CORP.

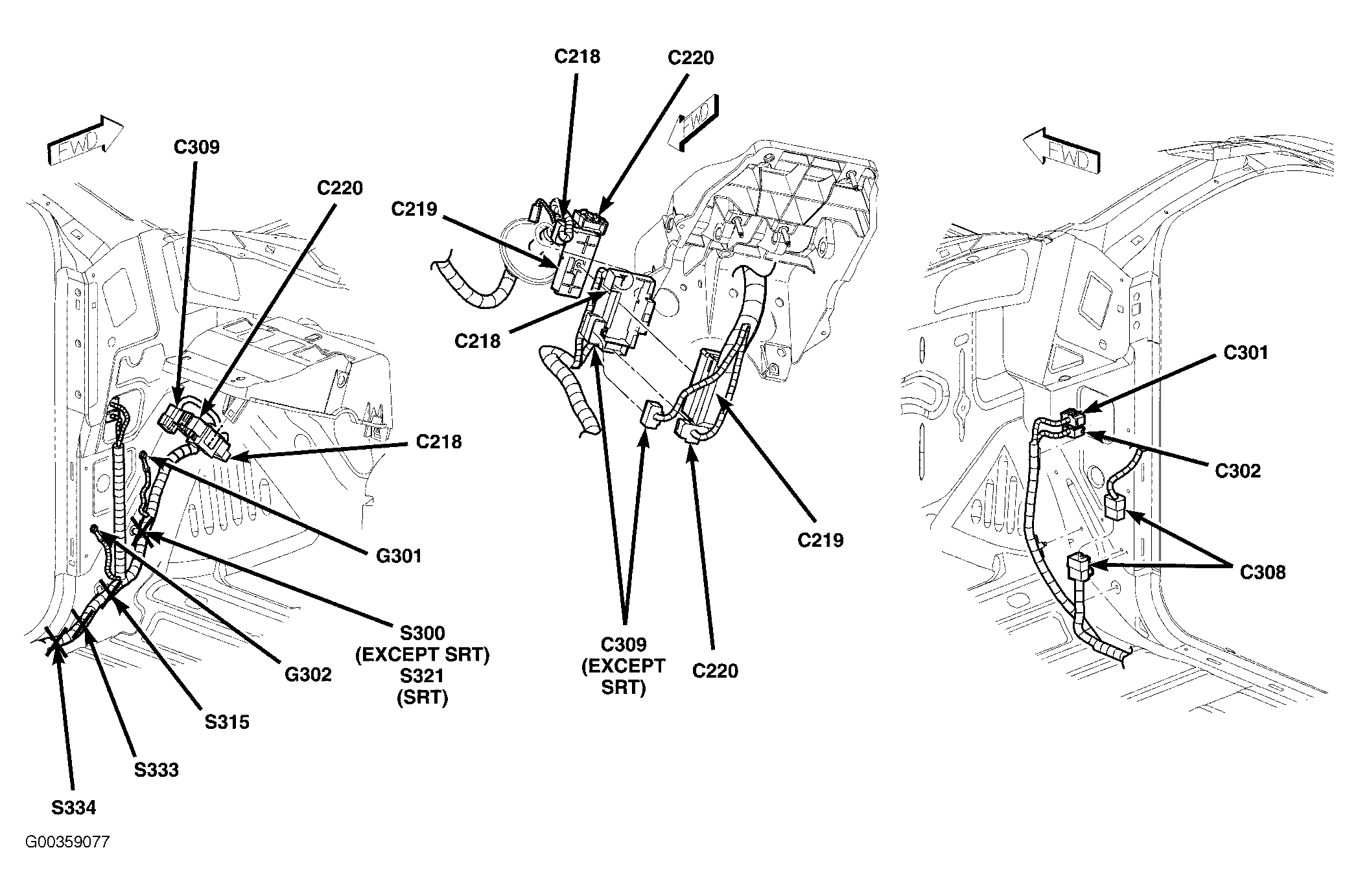

Fig 31: Front Of Cab

G00359077

Courtesy of DAIMLERCHRYSLER CORP.

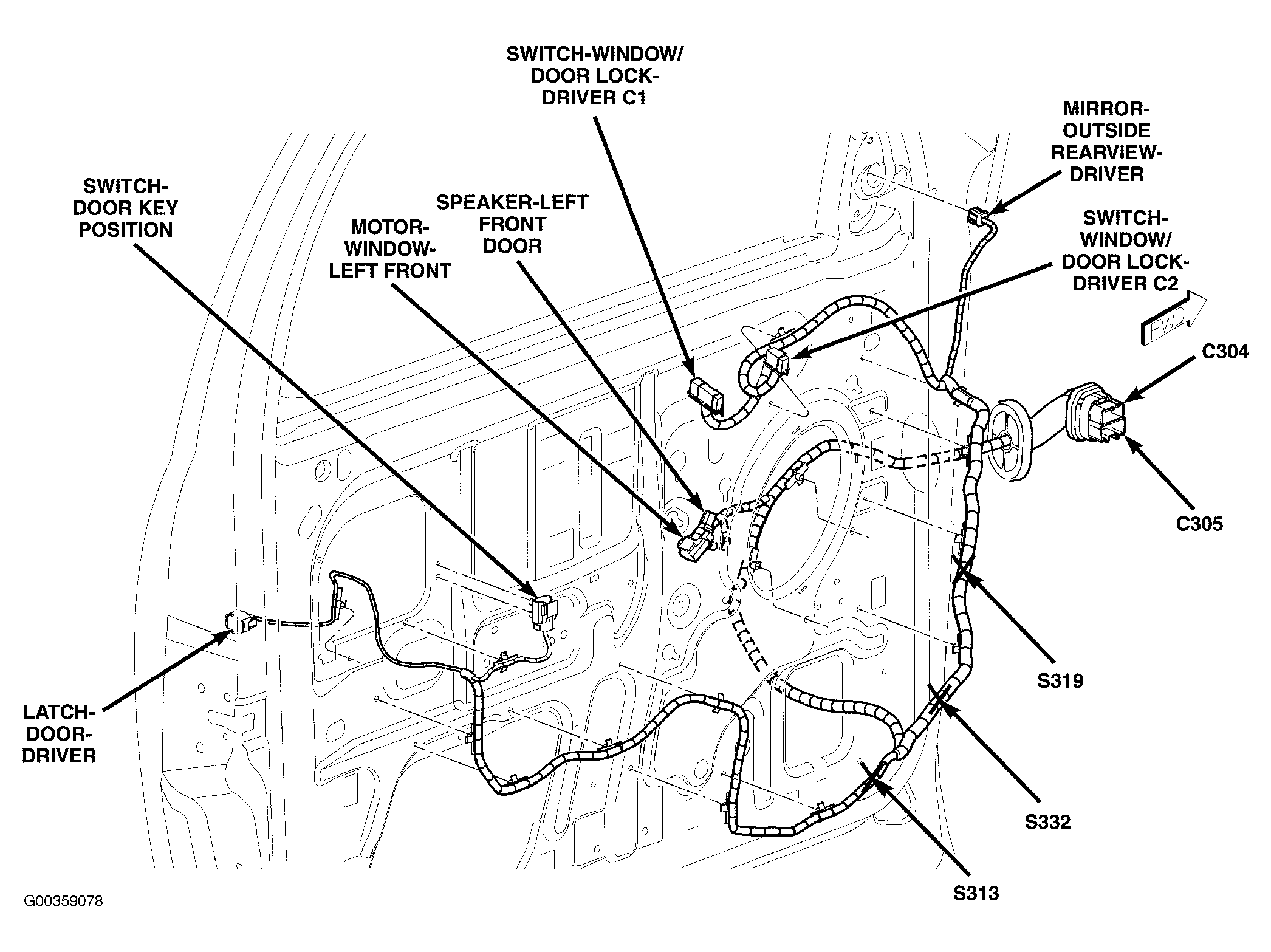

Fig 32: Left Front Door

G00359078

Courtesy of DAIMLERCHRYSLER CORP.

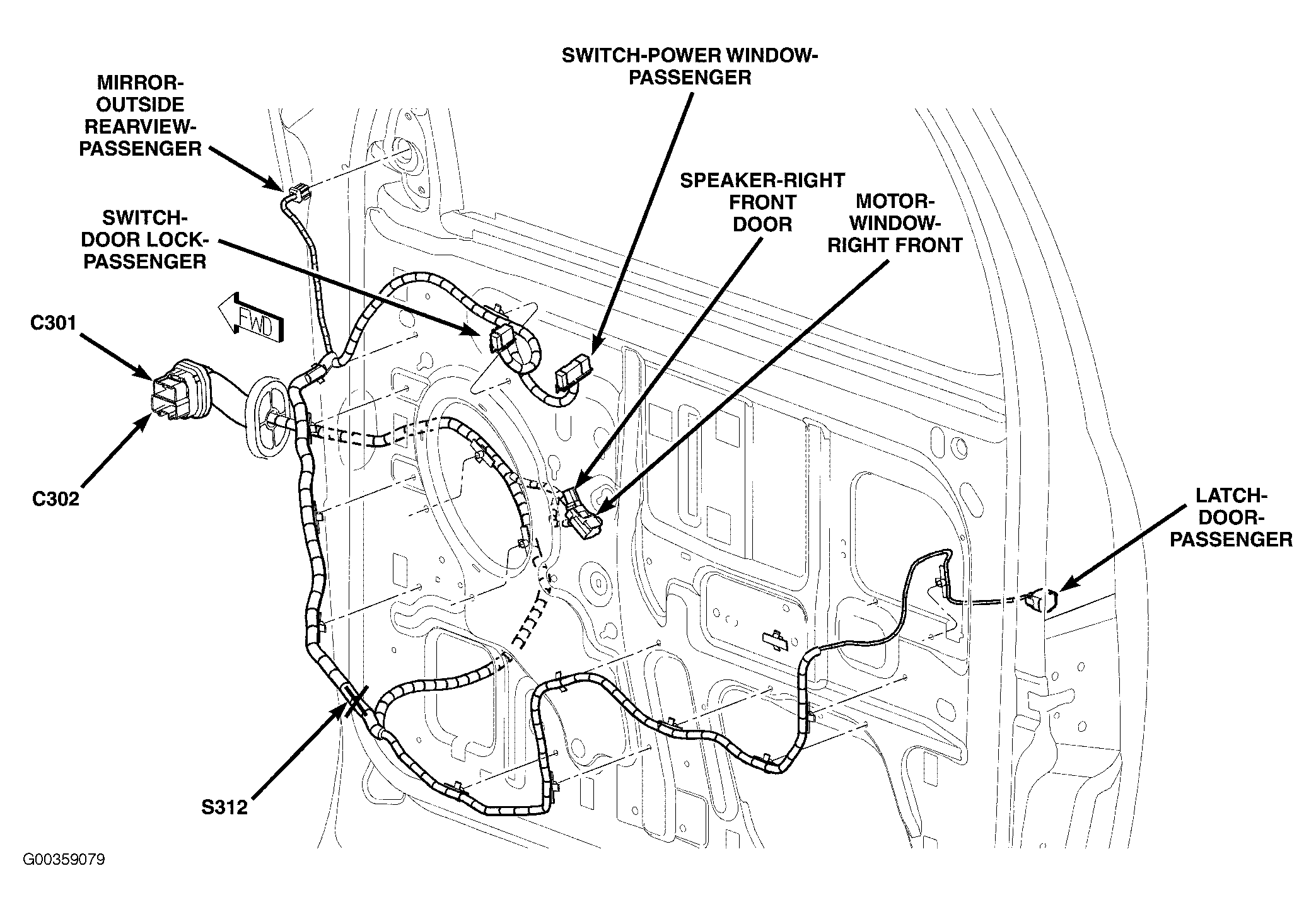

Fig 33: Right Front Door

G00359079

Courtesy of DAIMLERCHRYSLER CORP.

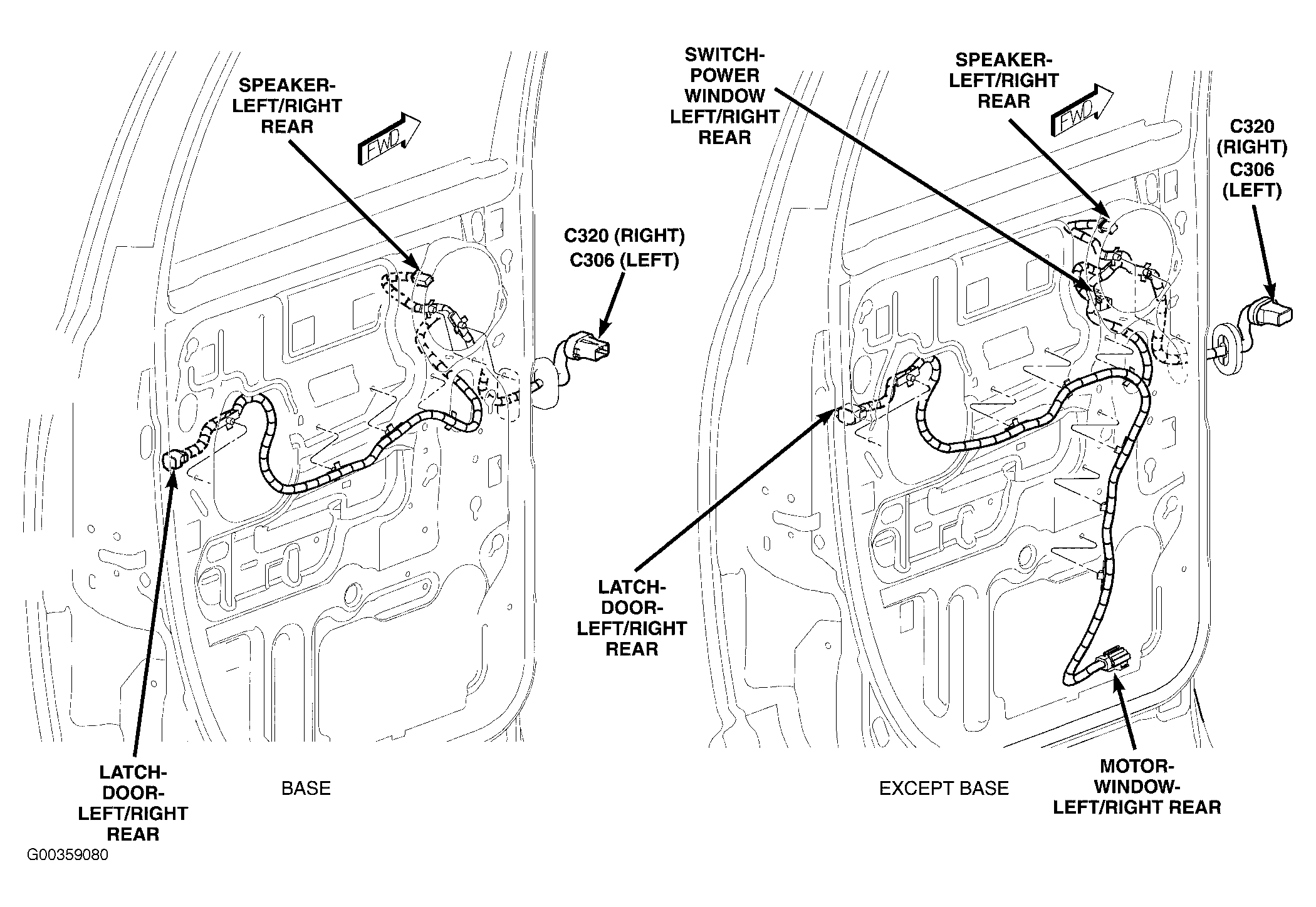

Fig 34: Left Rear Door (Right Side Similar)

G00359080

Courtesy of DAIMLERCHRYSLER CORP.

Fig 35: Left Side Of Cab

G00359081

Courtesy of DAIMLERCHRYSLER CORP.

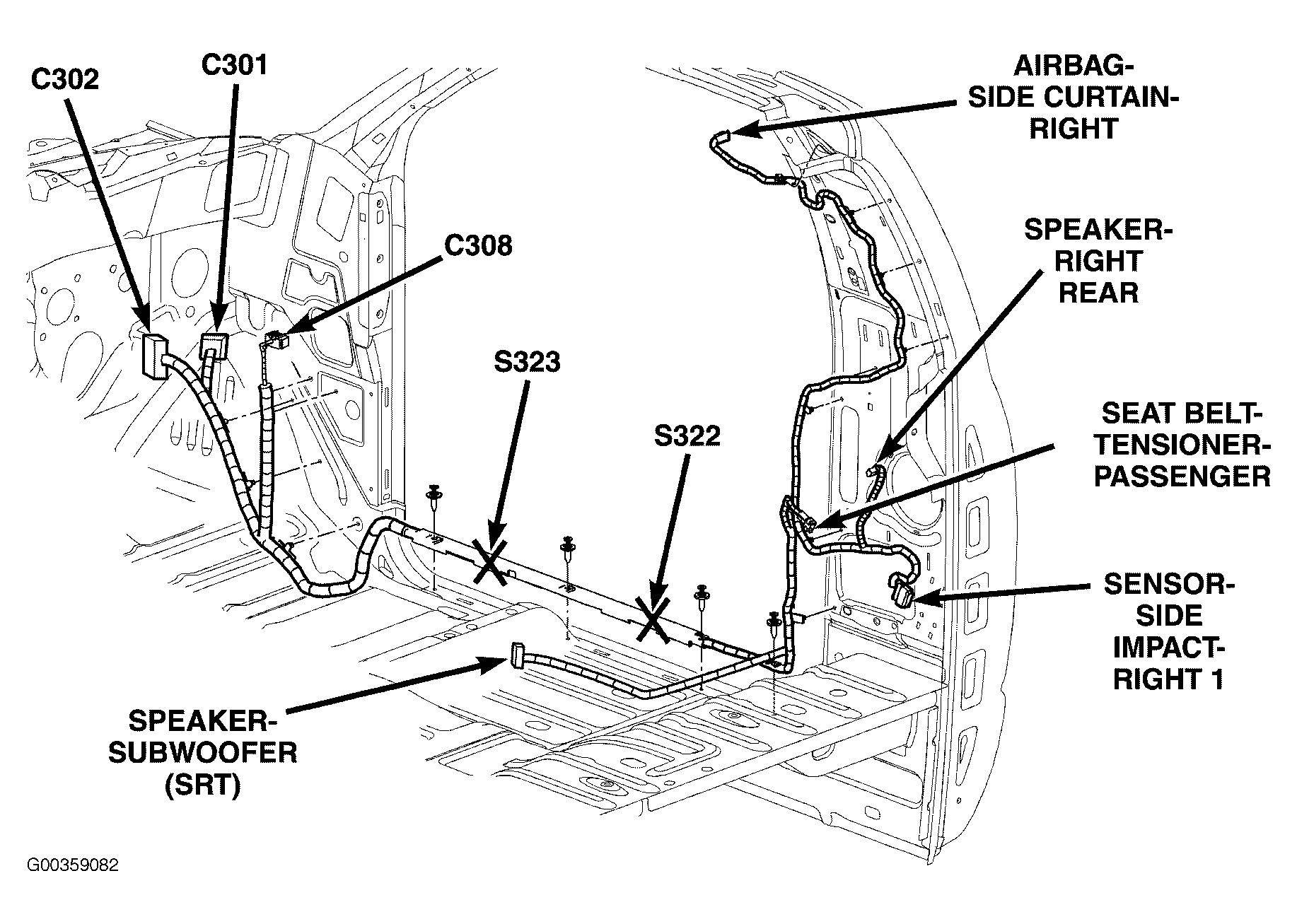

Fig 36: Right Side Of Cab

G00359082

Courtesy of DAIMLERCHRYSLER CORP.

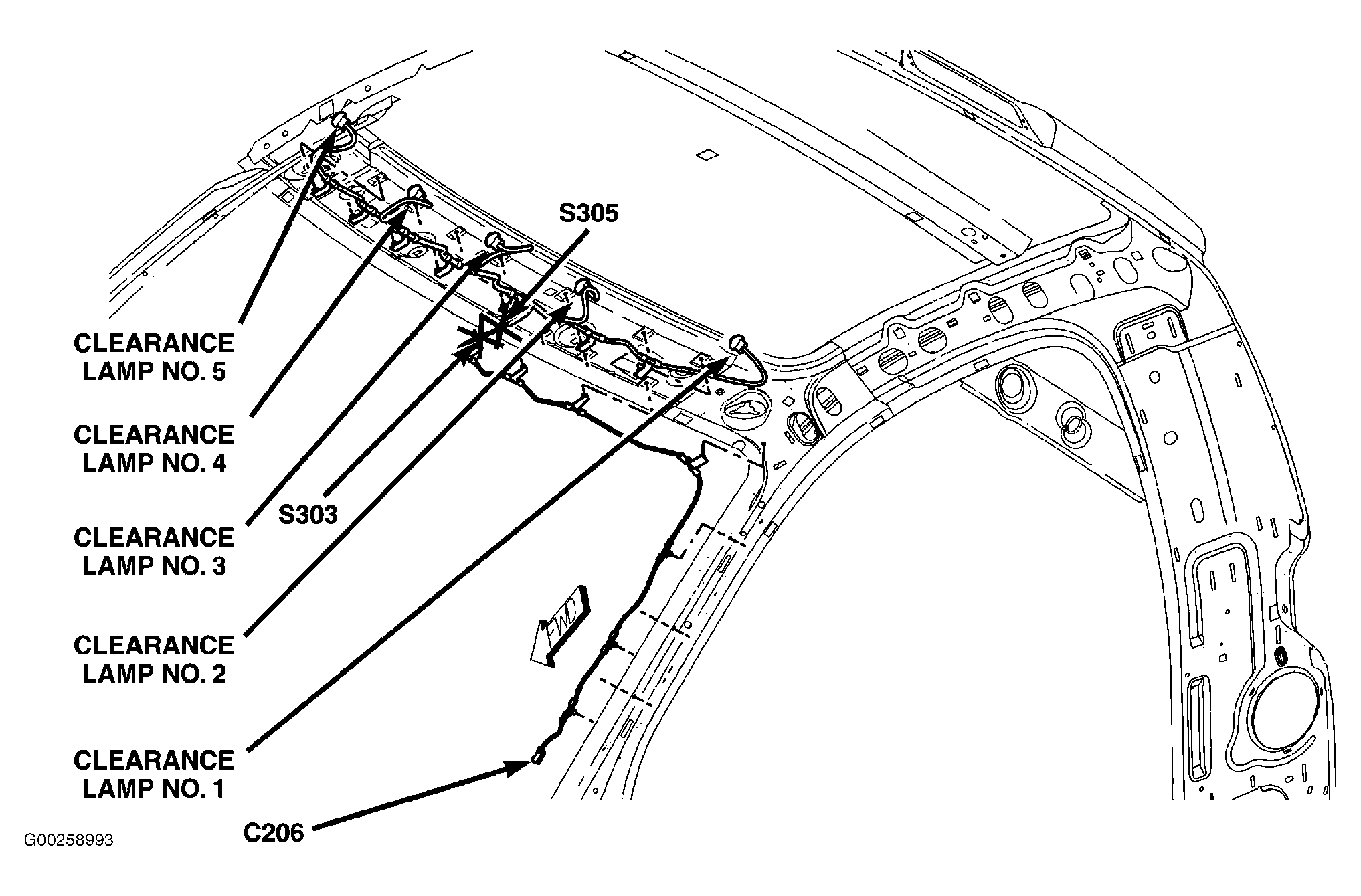

Fig 37: Roof

G00258993

Courtesy of DAIMLERCHRYSLER CORP.

Fig 38: Chassis

G00258995

Courtesy of DAIMLERCHRYSLER CORP.

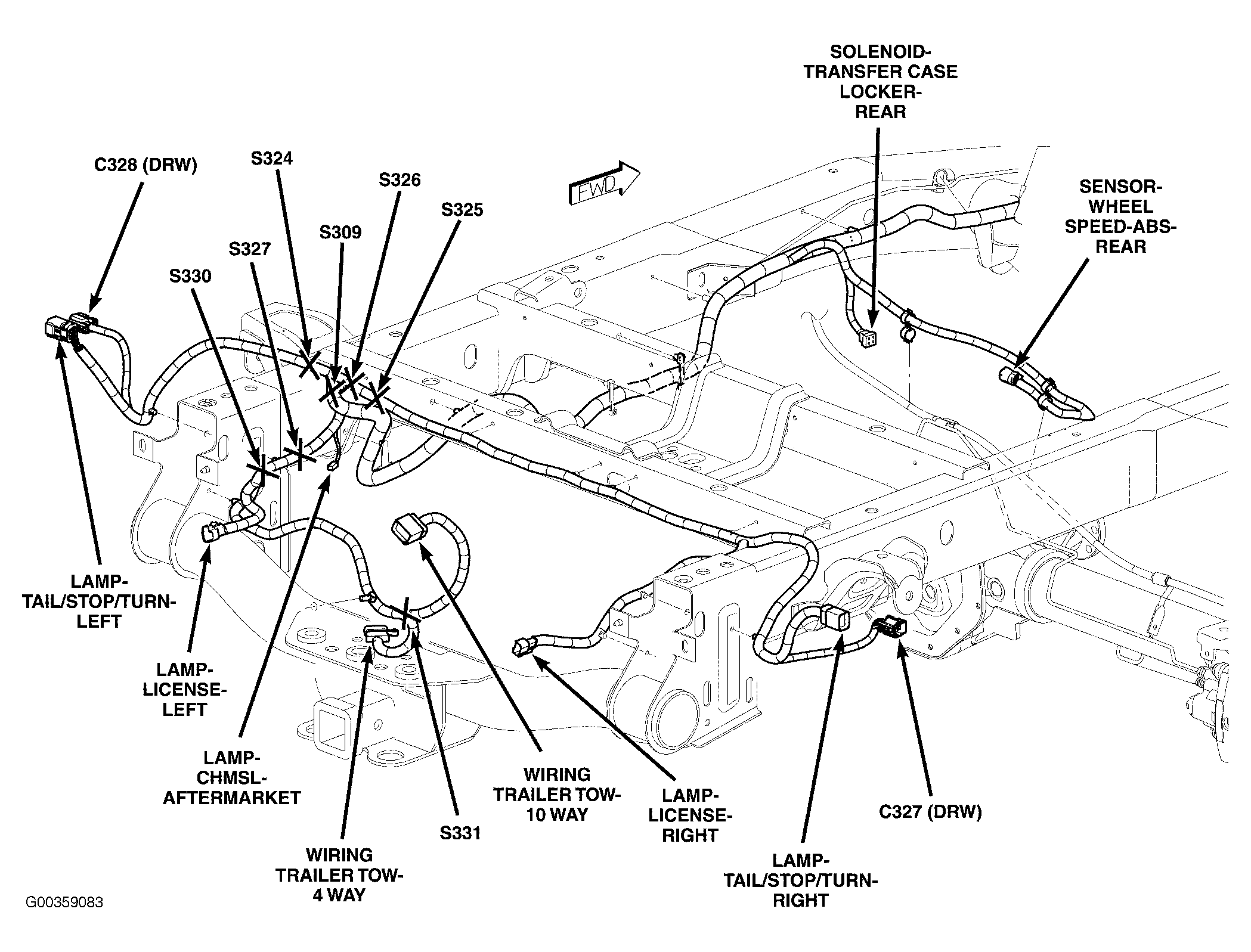

Fig 39: Rear Chassis

G00359083

Courtesy of DAIMLERCHRYSLER CORP.

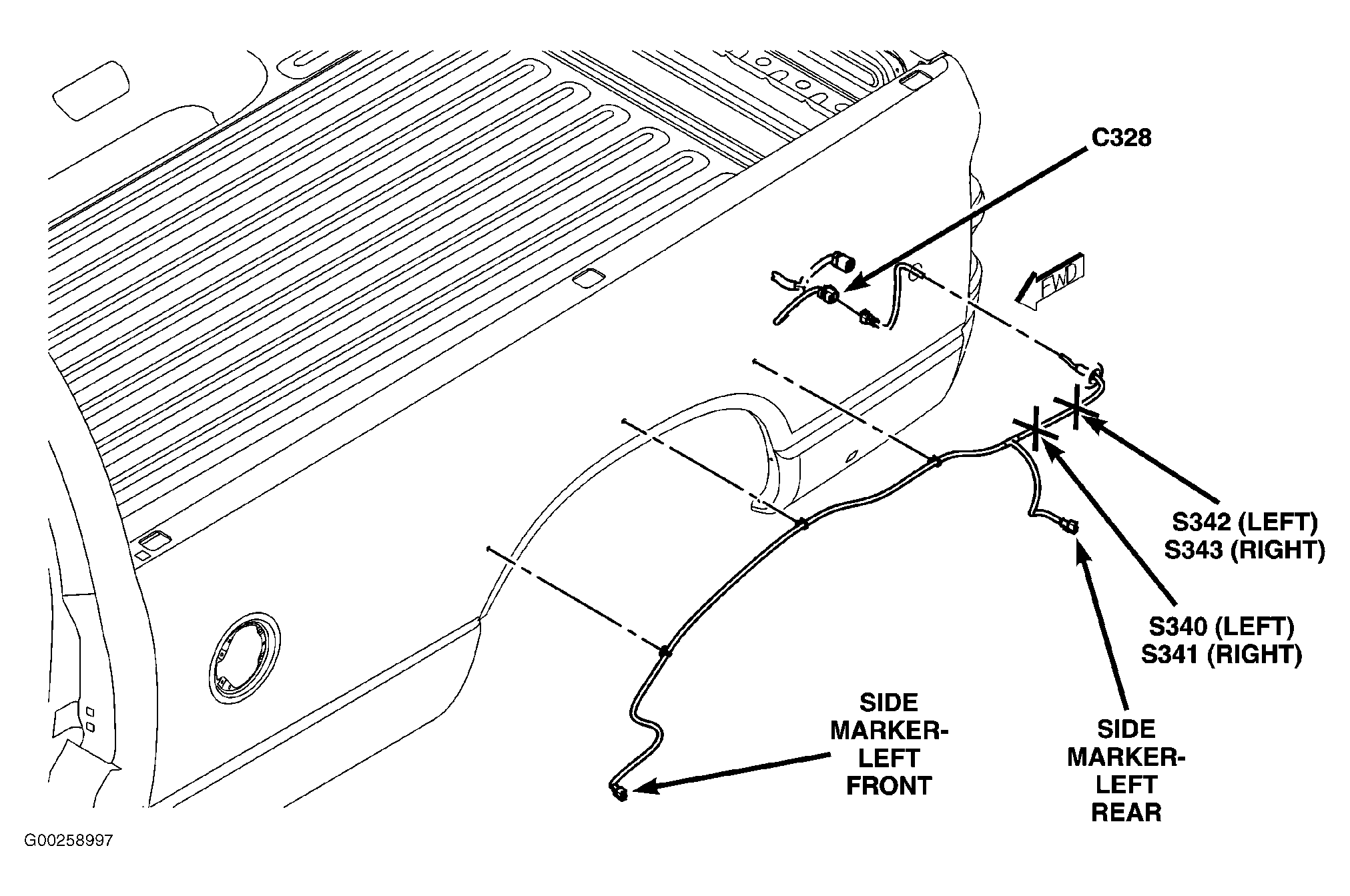

Fig 40: Left Rear Fender

G00258997

Courtesy of DAIMLERCHRYSLER CORP.

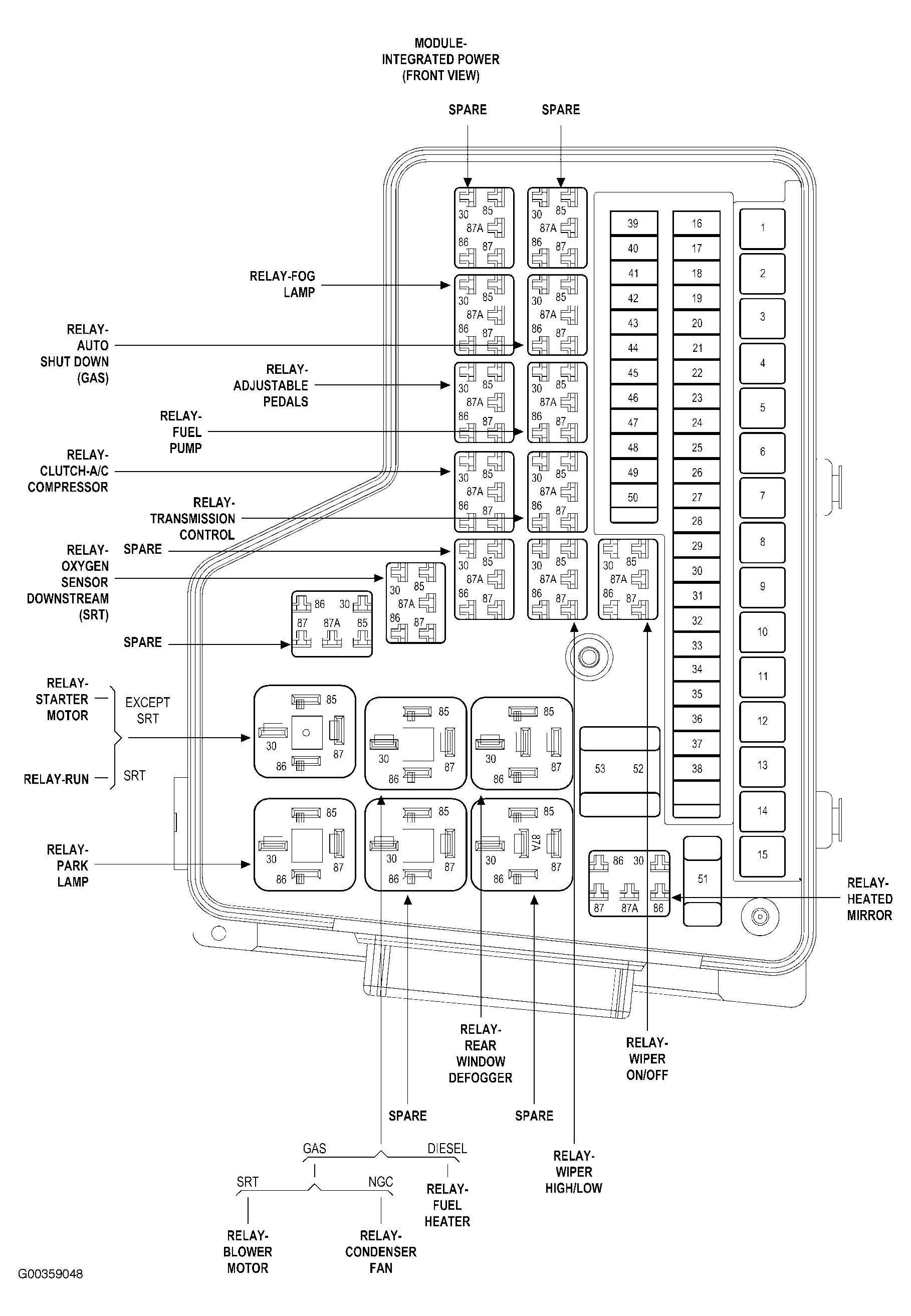

Fig 41: Integrated Power Module

G00359048

Courtesy of DAIMLERCHRYSLER CORP.

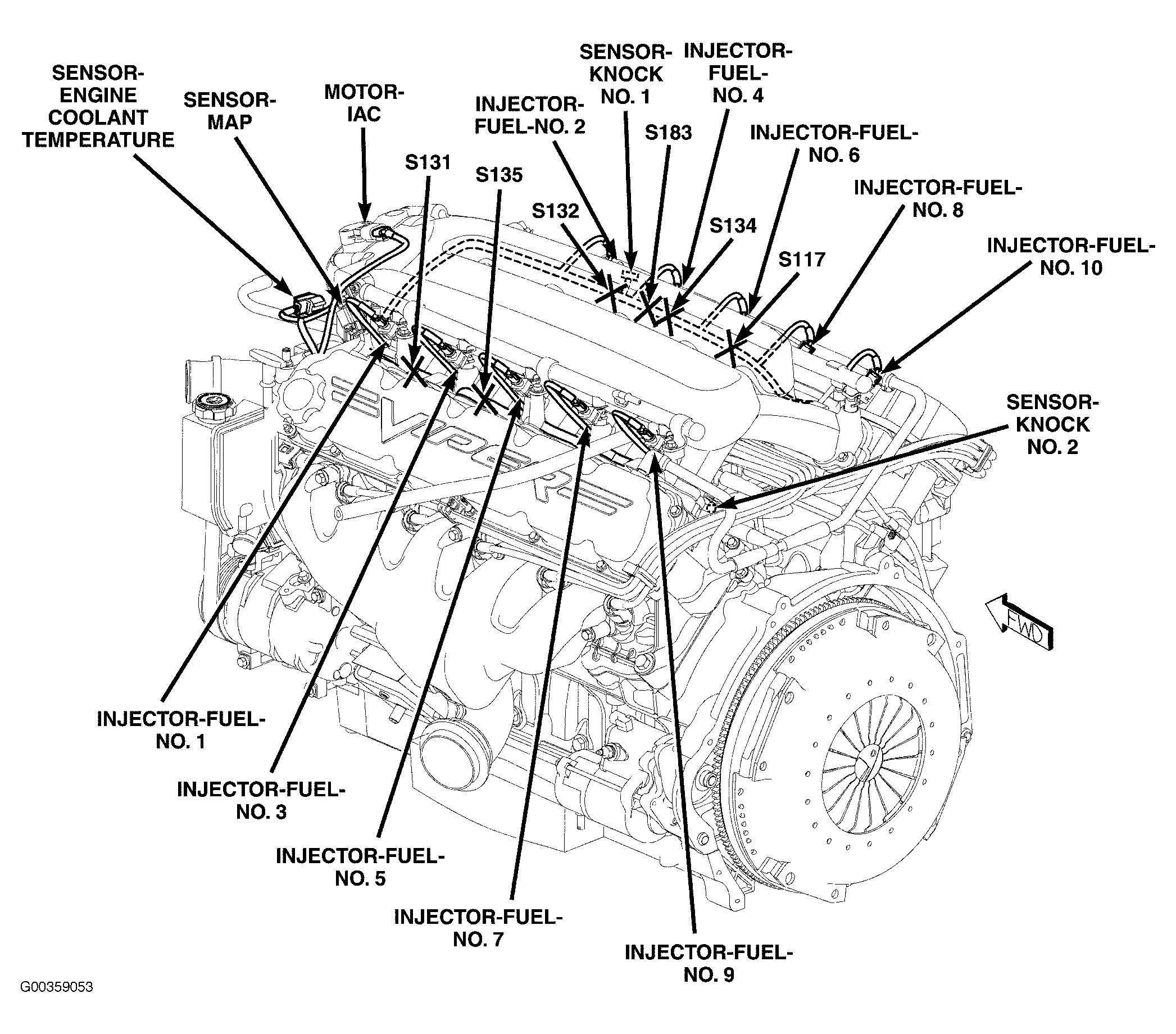

Fig 42: Engine (8.3L)

G00359053

Courtesy of DAIMLERCHRYSLER CORP.

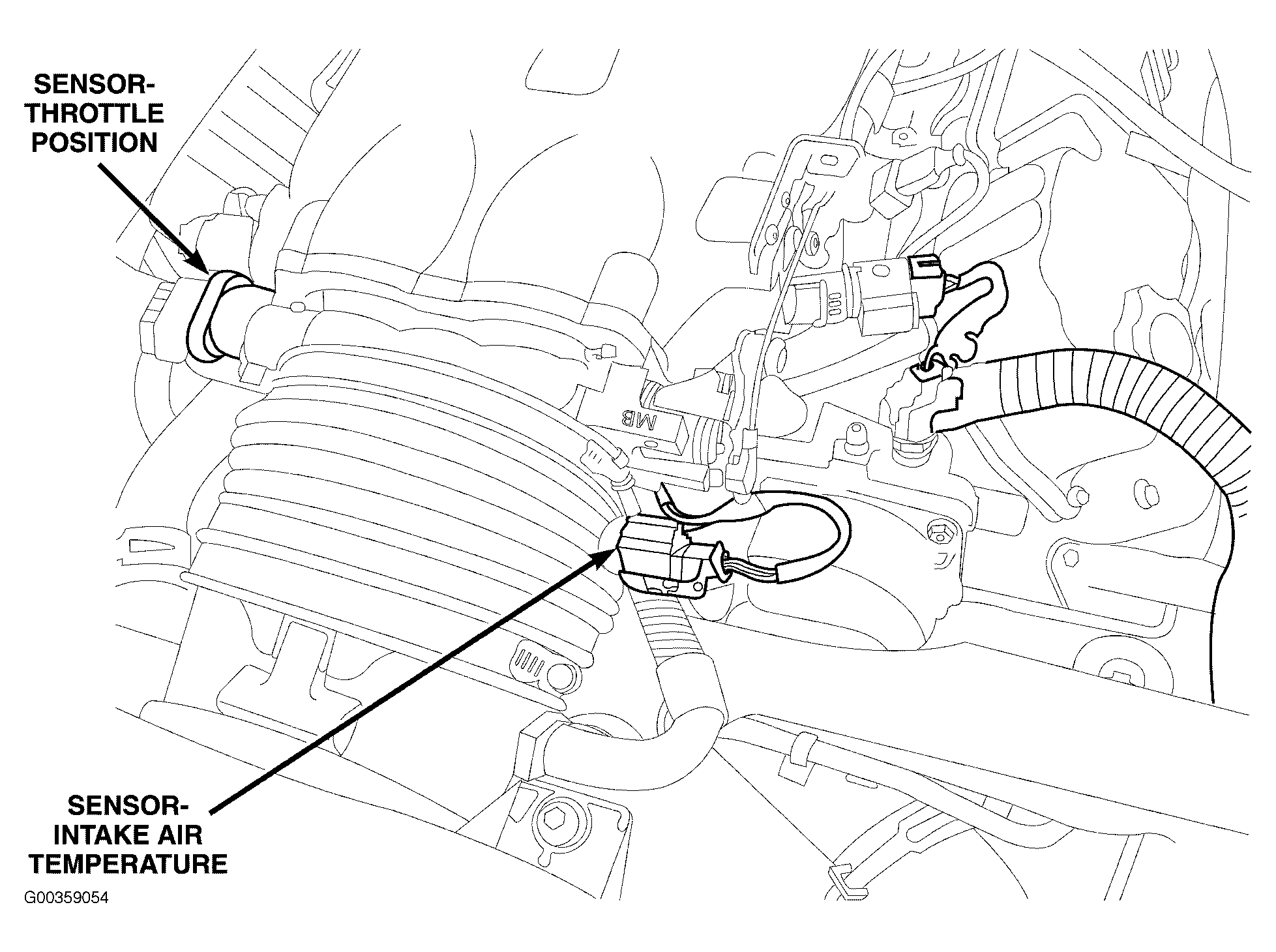

Fig 43: Left Front Of Engine (8.3L)

G00359054

Courtesy of DAIMLERCHRYSLER CORP.

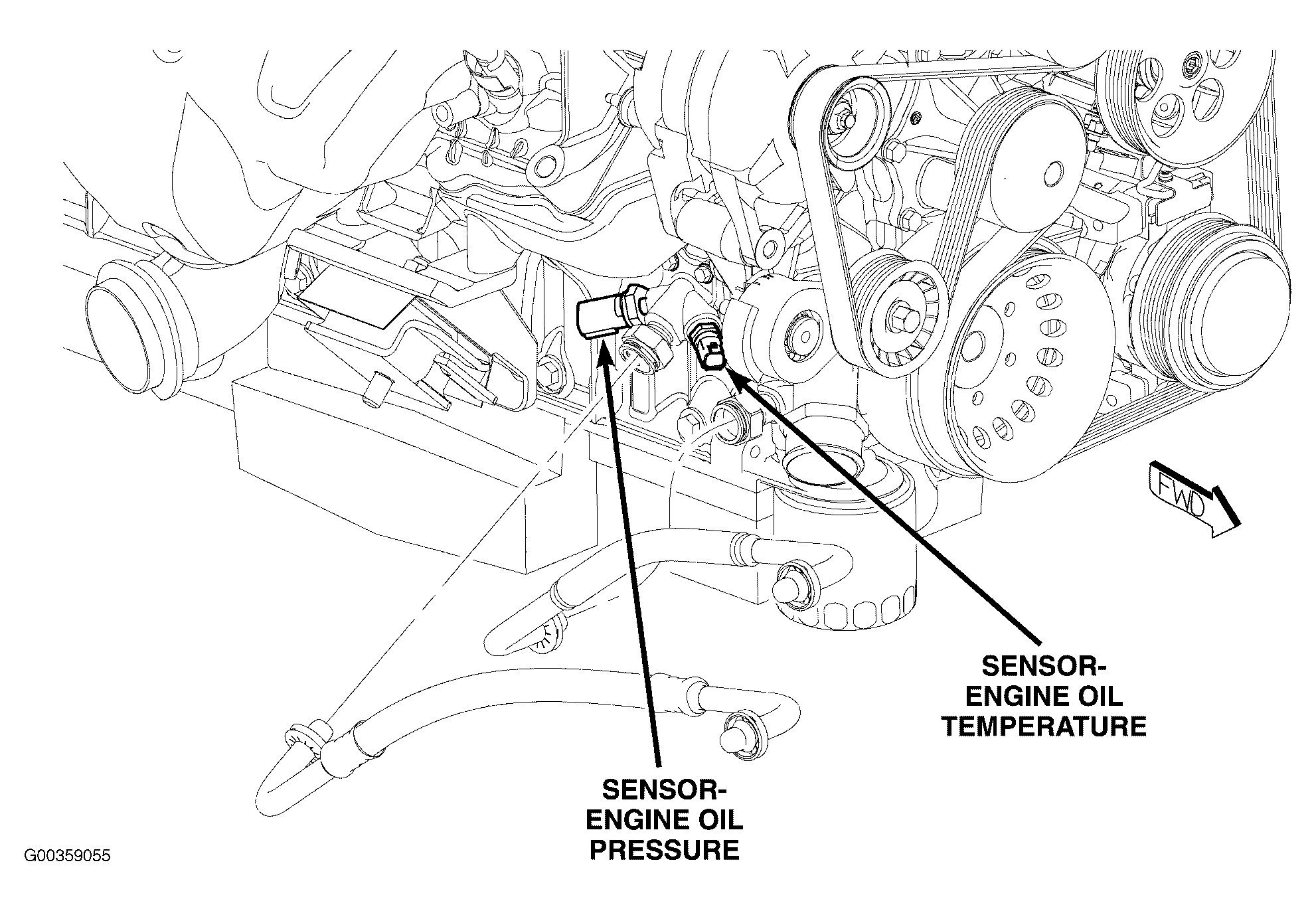

Fig 44: Right Front Of Engine (8.3L)

G00359055

Courtesy of DAIMLERCHRYSLER CORP.

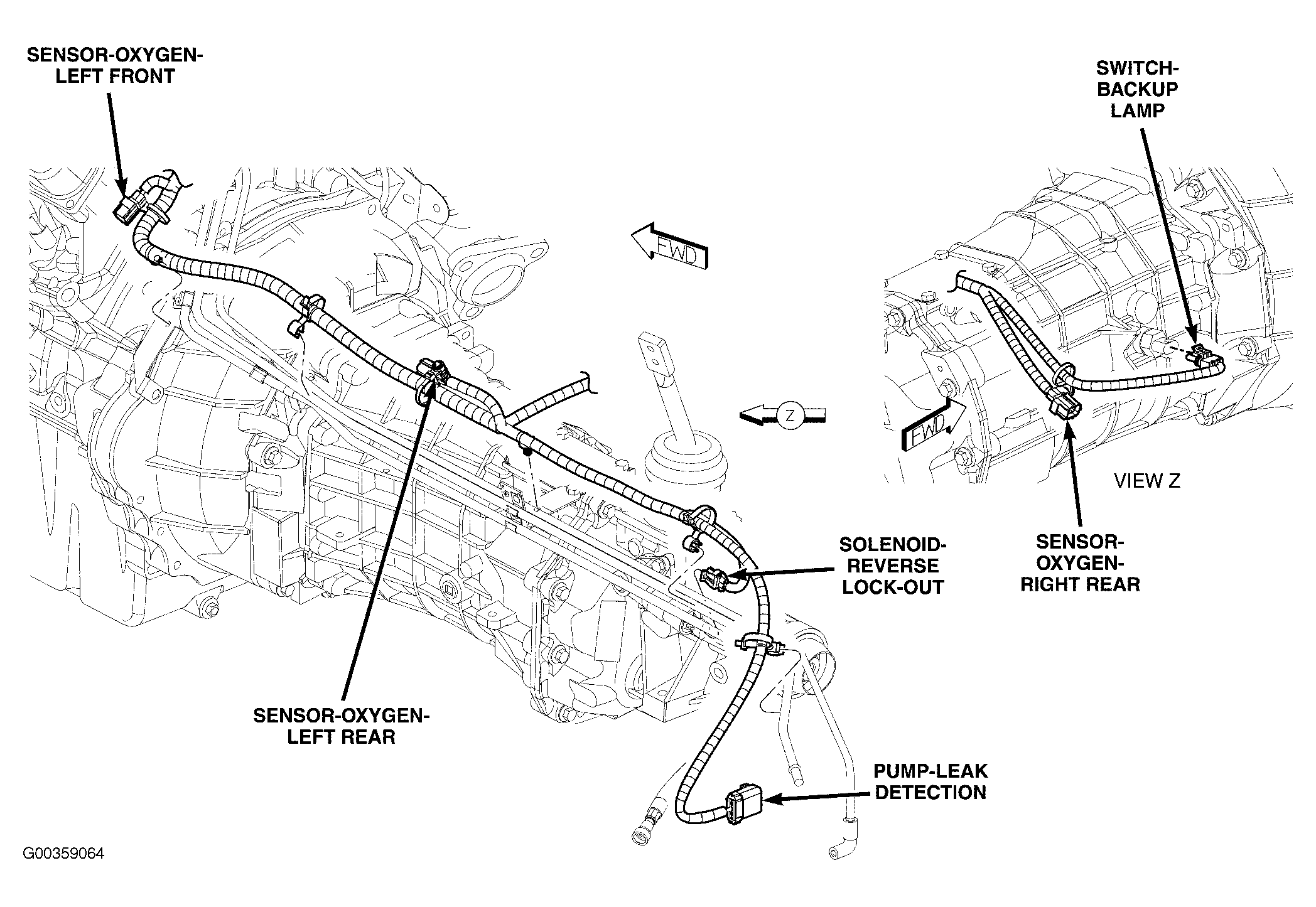

Fig 45: Manual Transmission (8.3L)

G00359064

Courtesy of DAIMLERCHRYSLER CORP.

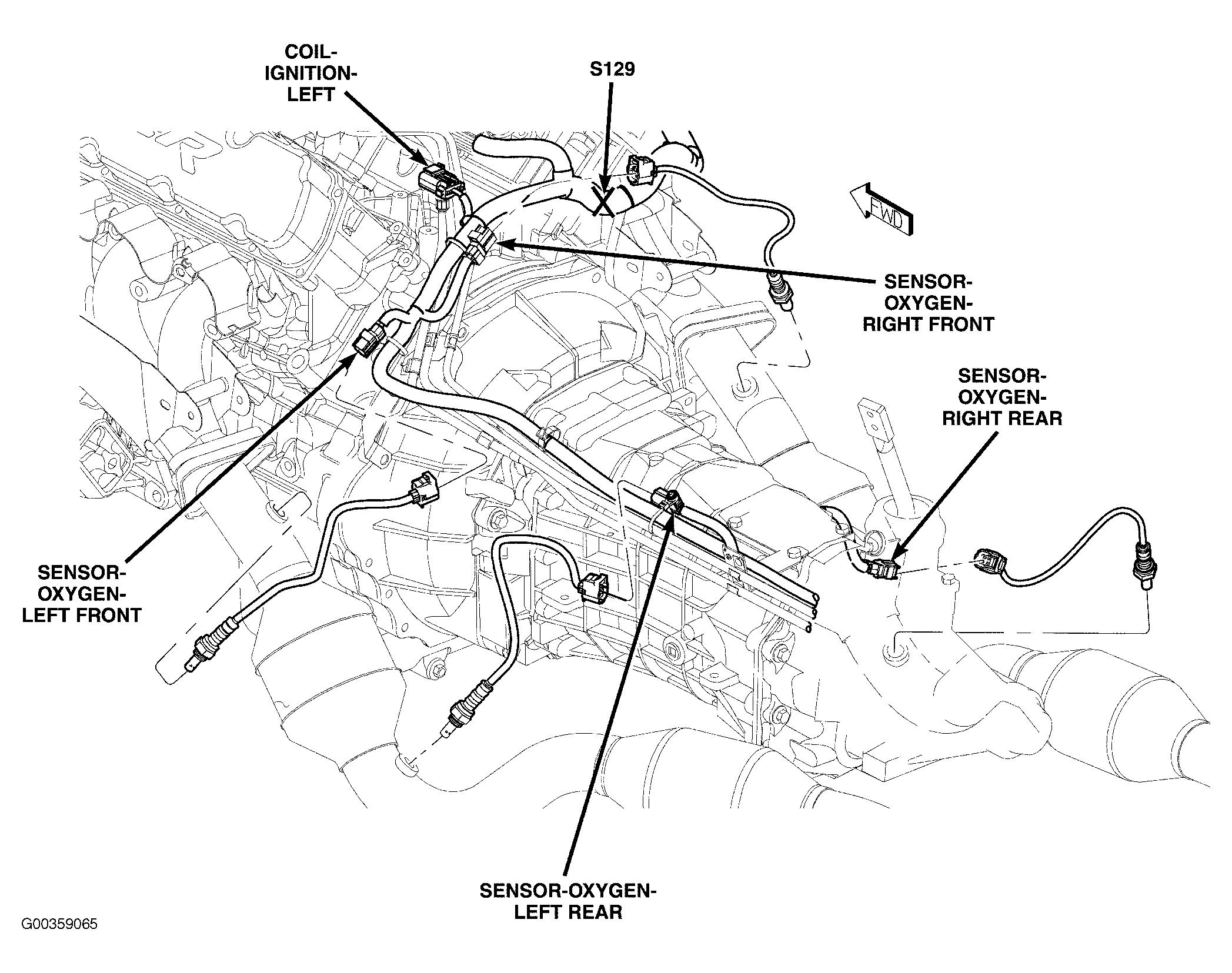

Fig 46: Manual Transmission (8.3L)

G00359065

Courtesy of DAIMLERCHRYSLER CORP.

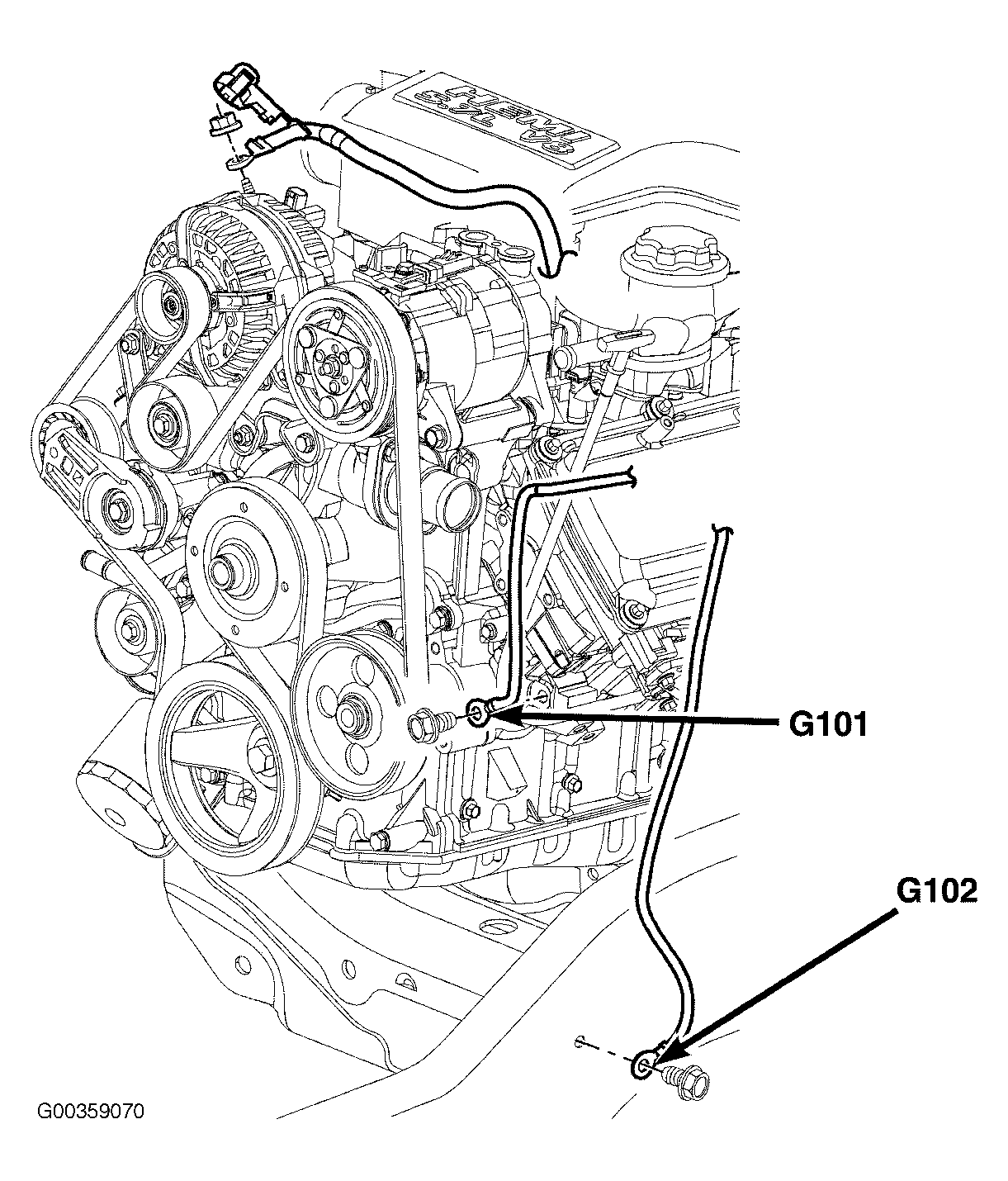

Fig 47: Battery Grounds

G00359070

Courtesy of DAIMLERCHRYSLER CORP.

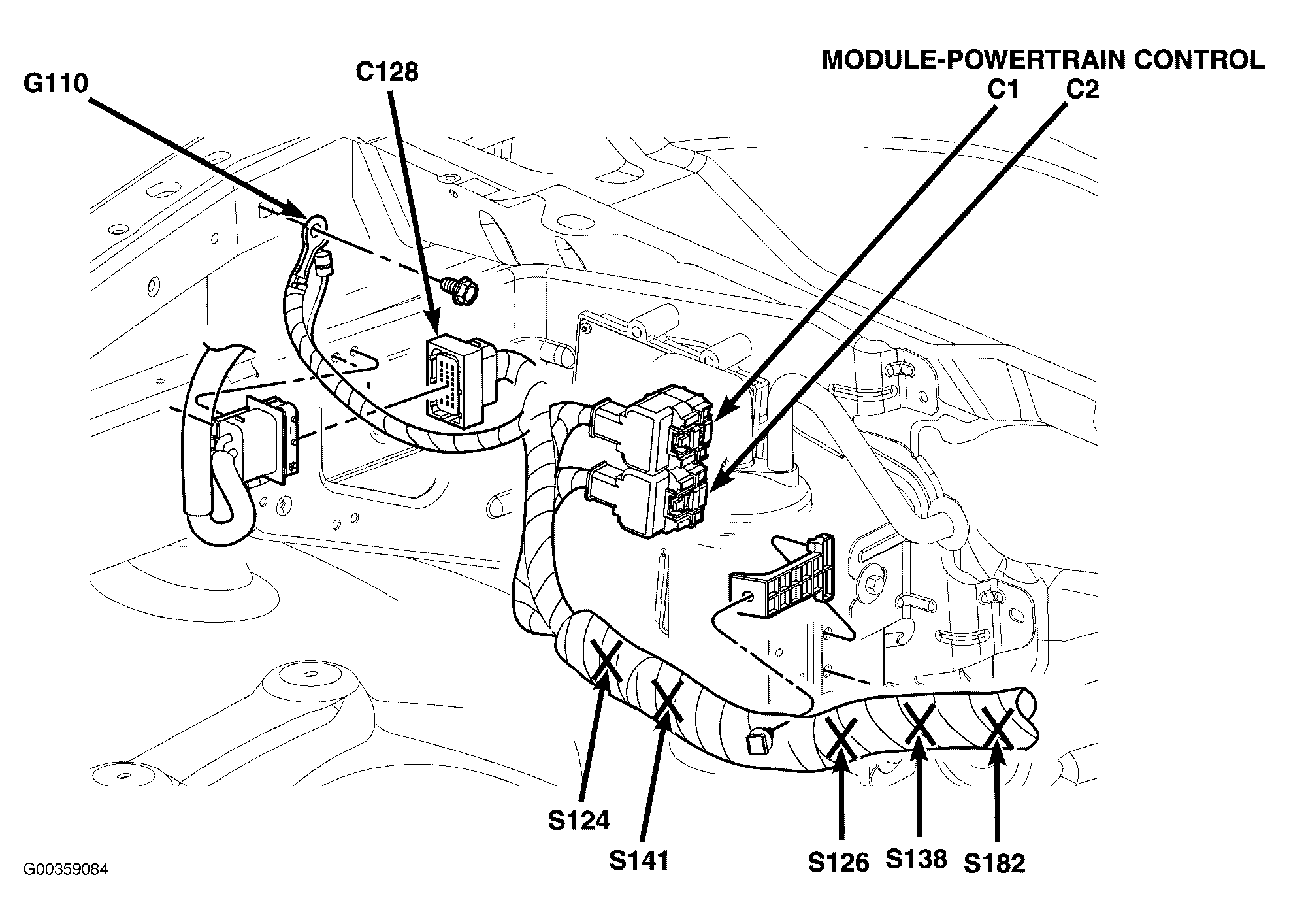

Fig 48: Right Rear Of Engine Compartment (SRT-10)

G00359084

Courtesy of DAIMLERCHRYSLER CORP.

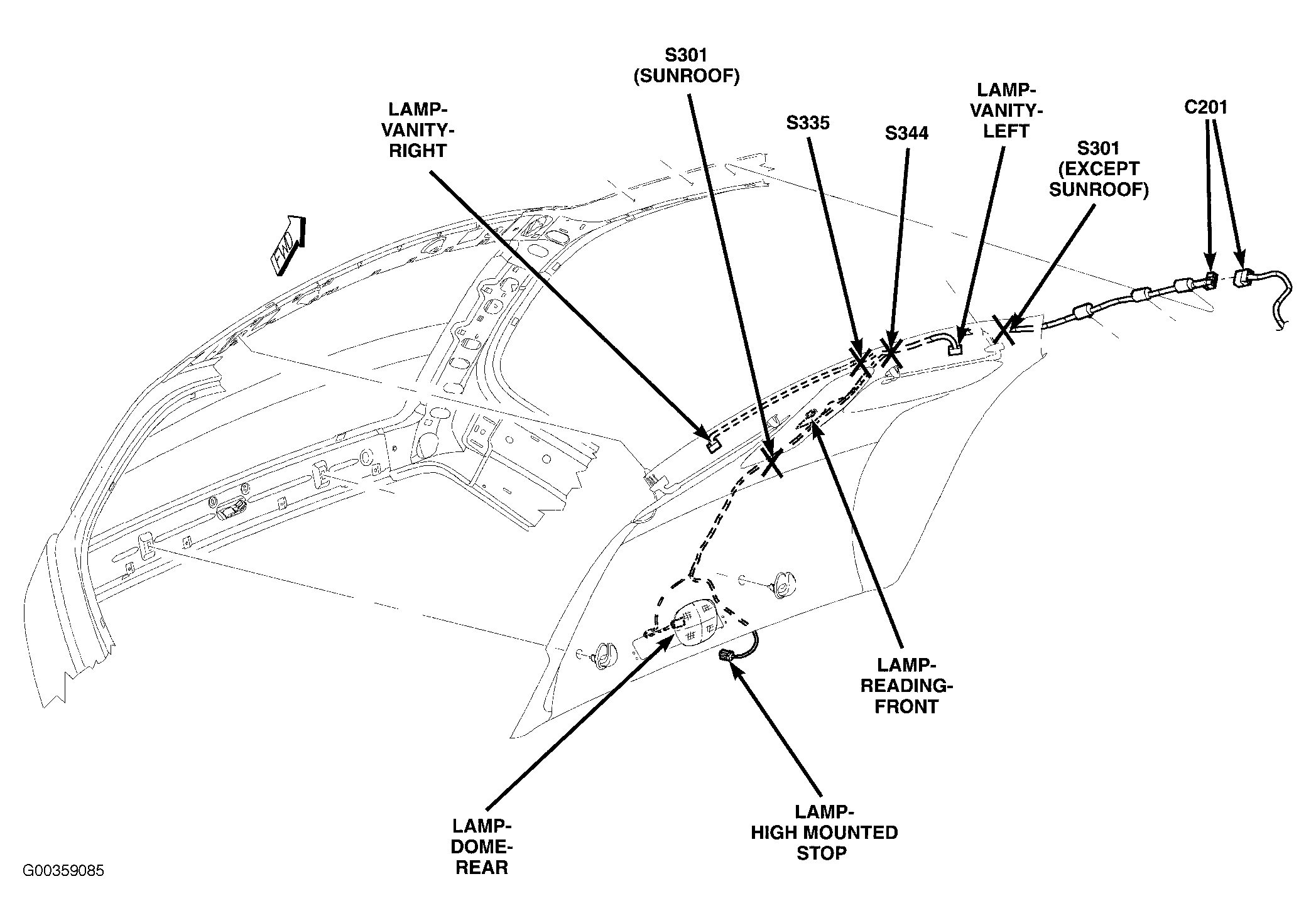

Fig 49: Headliner

G00359085

Courtesy of DAIMLERCHRYSLER CORP.
