Control Units
WARNING: This page is about a different car, the 2005 Dodge Pickup. However, it is still accessible from the selected car via links, so may be relevant.
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Airbag Control Module | Center of dash. See Figure. |
| Anti-Lock Brakes Module | Left rear of engine compartment. See Figure. |
| Brake Provision Module | Left rear of engine compartment. See Figure. |
| Data Link Connector | Under left side of dash. See Figure. |

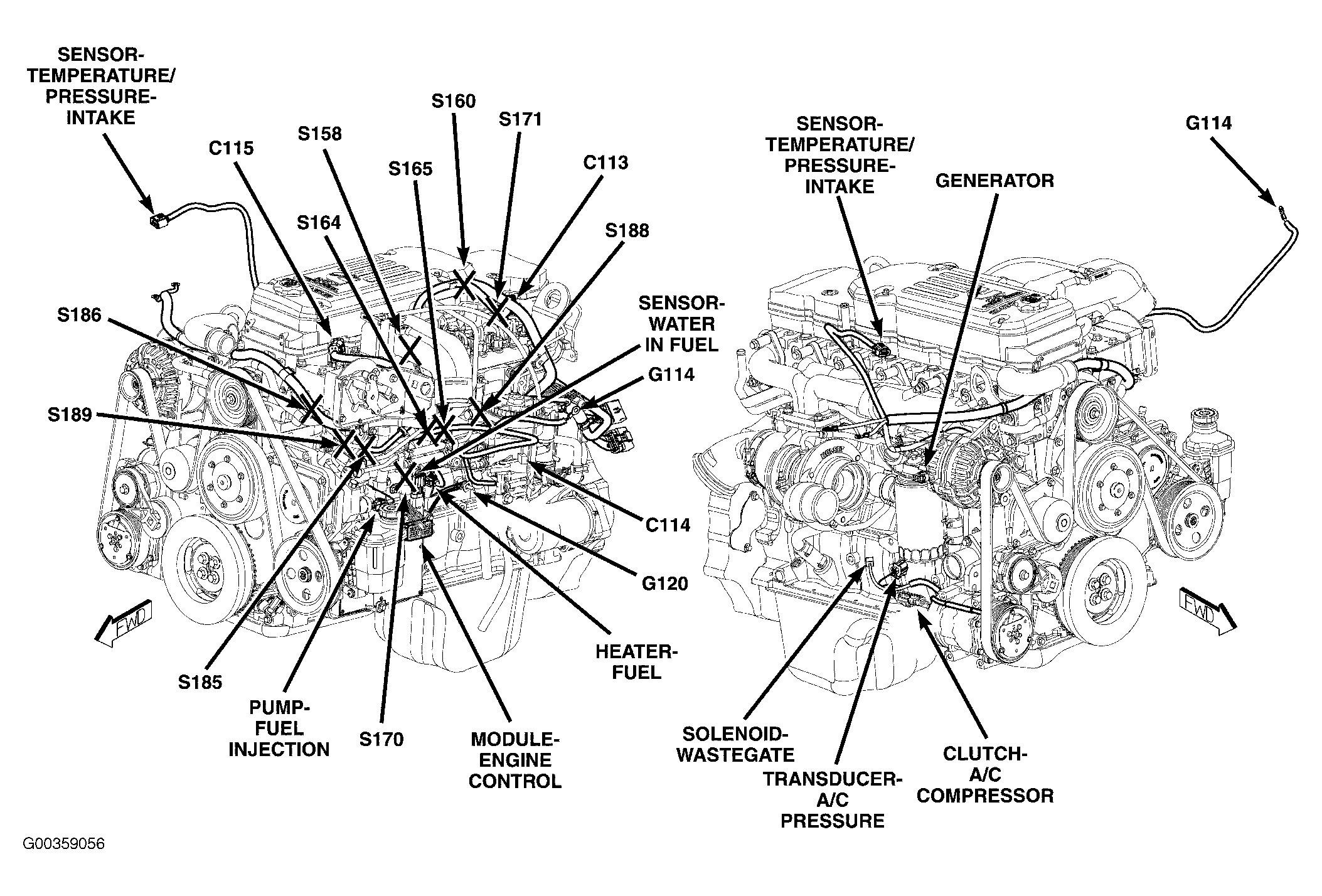

| Engine Control Module (5.9L Diesel) | Lower left front of engine block. See Figure. |
| Final Drive Control Module | Mounted on front stabilizer or sway bar. |

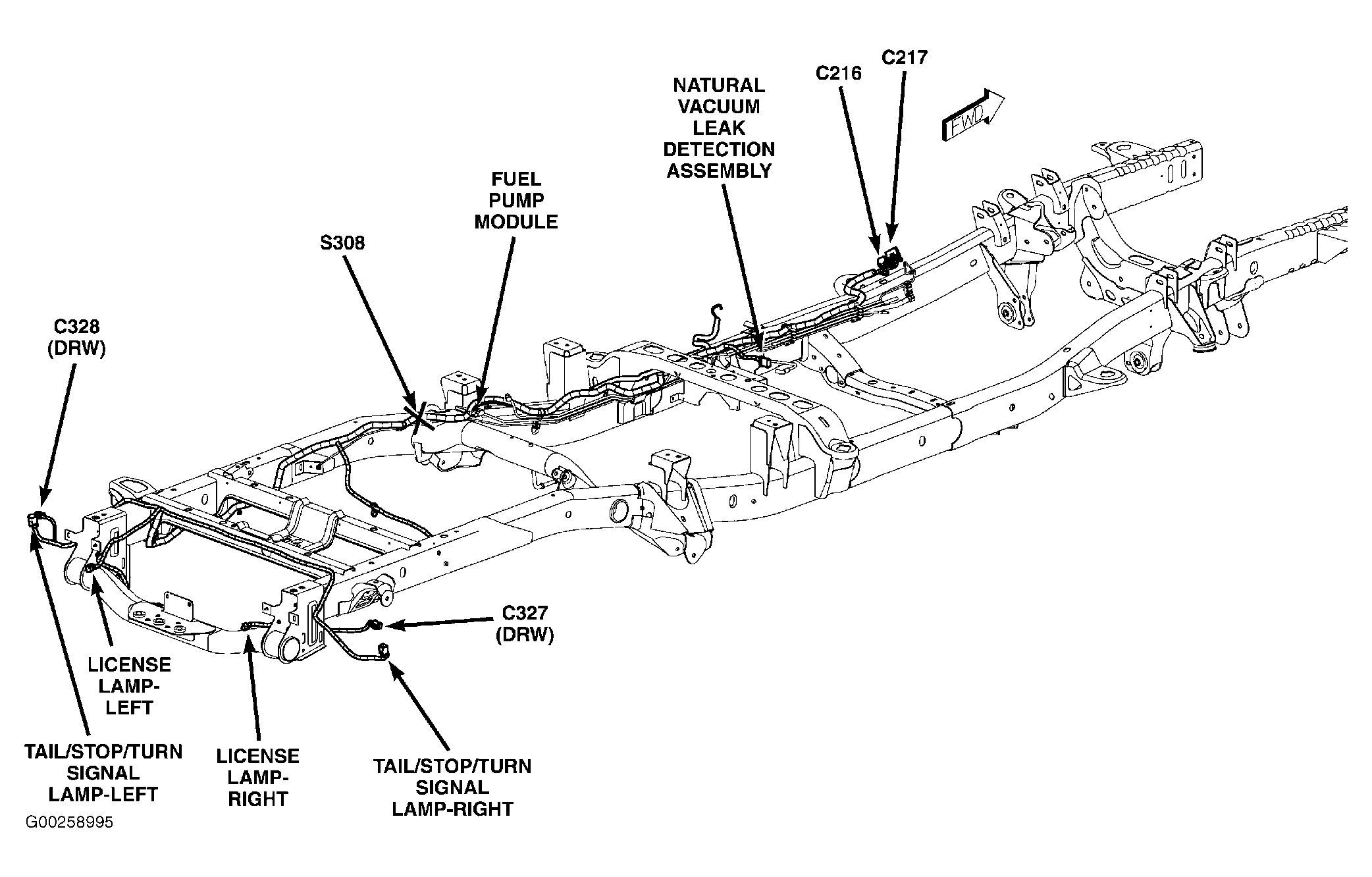

| Fuel Pump Module | Left rear of frame rail. See Figure. |

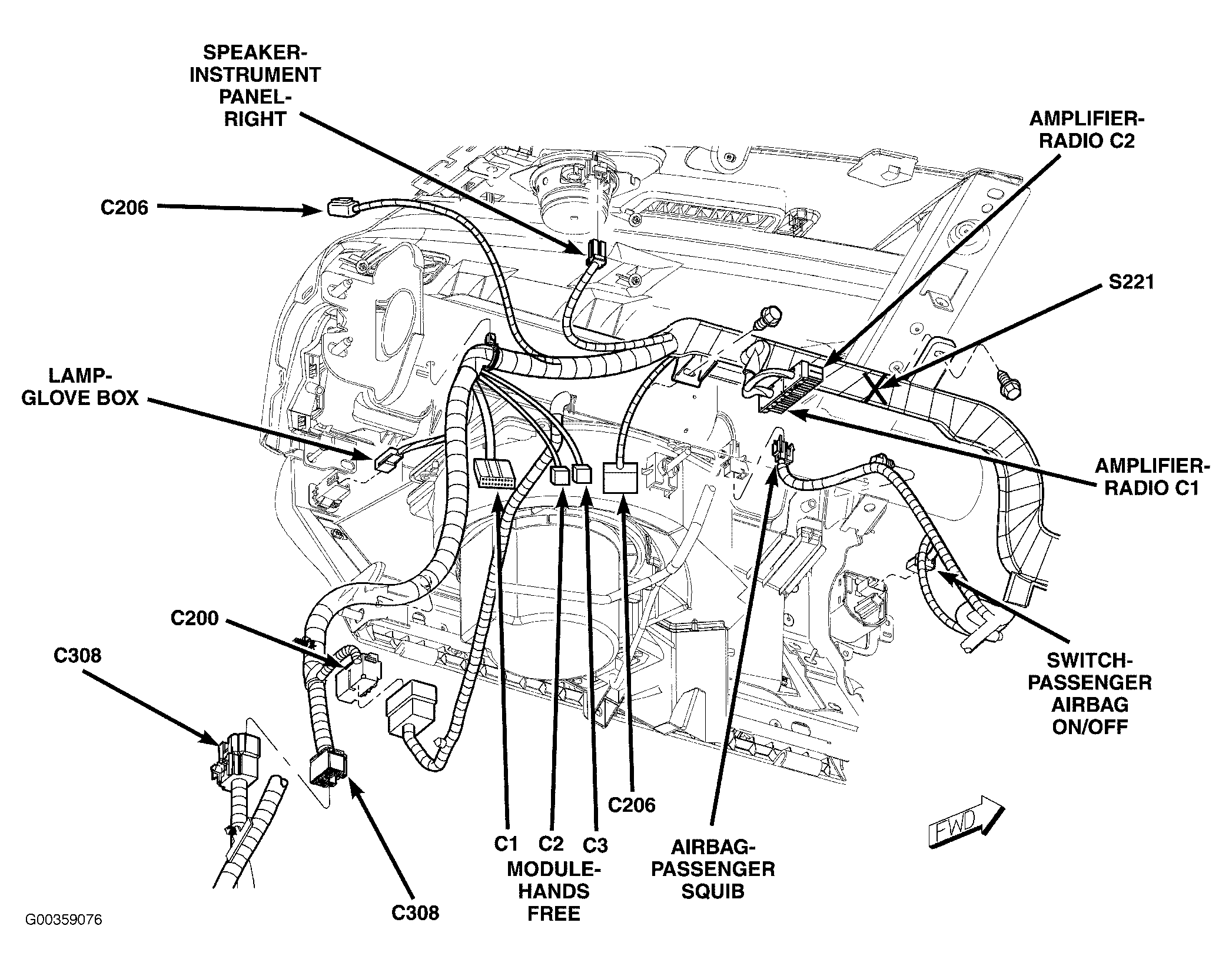

| Hands Free Module | Right side of dash. See Figure. |
| Heated Seats Module | Under driver seat. |

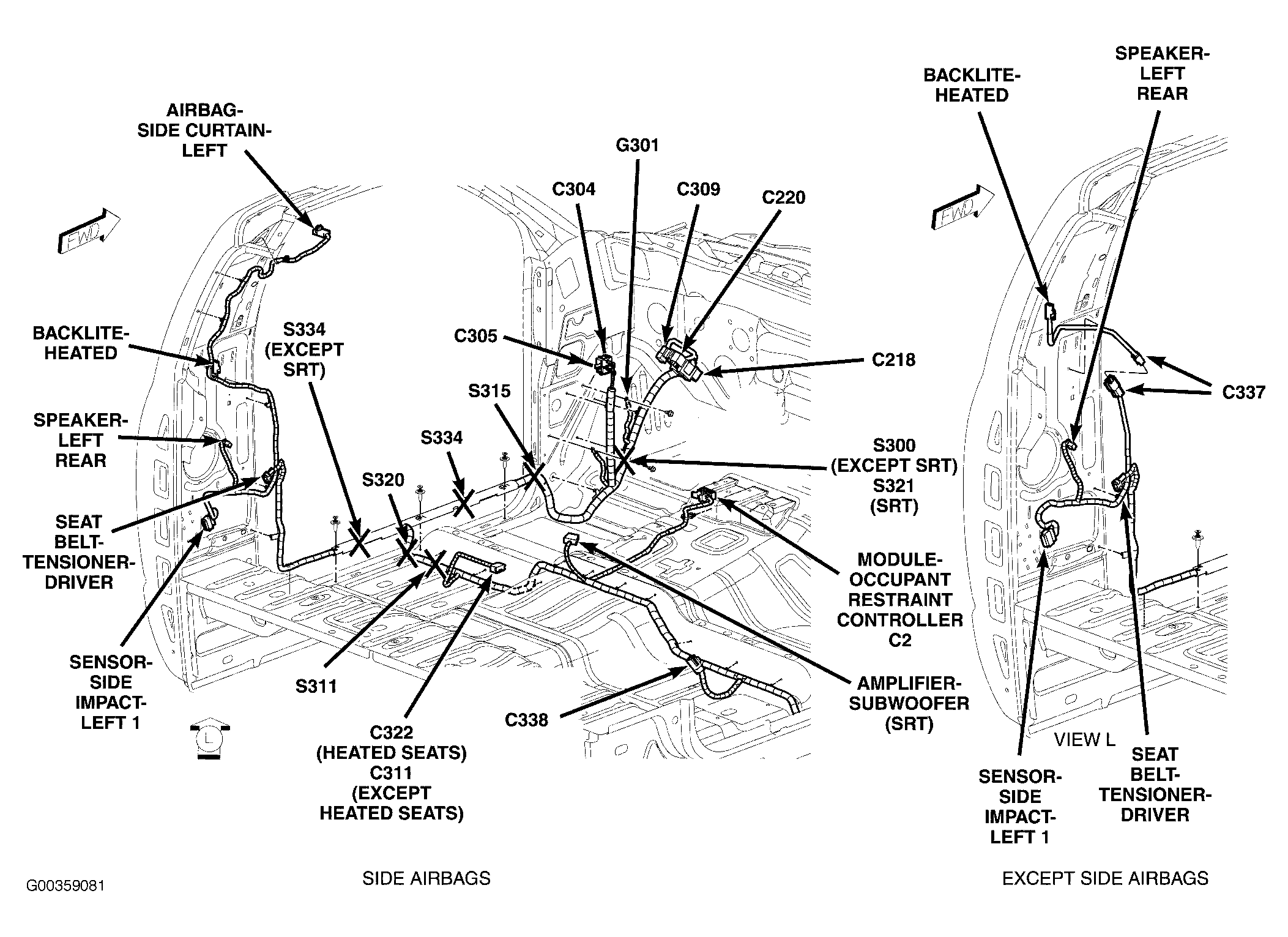

| Occupant Restraint Controller Module | Center front of body. See Figure. |

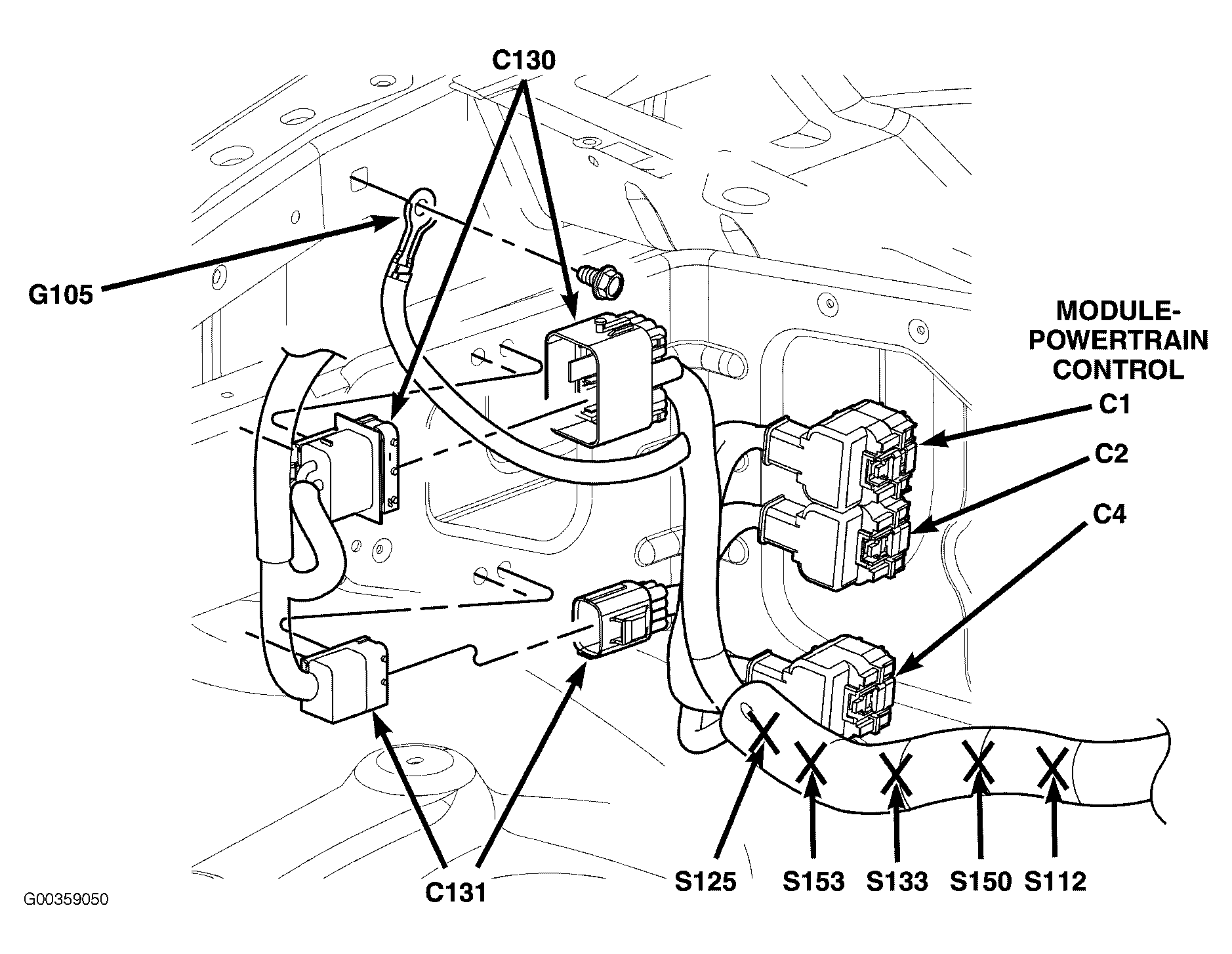

| Powertrain Control Module | Right rear of engine compartment. See Figure. |

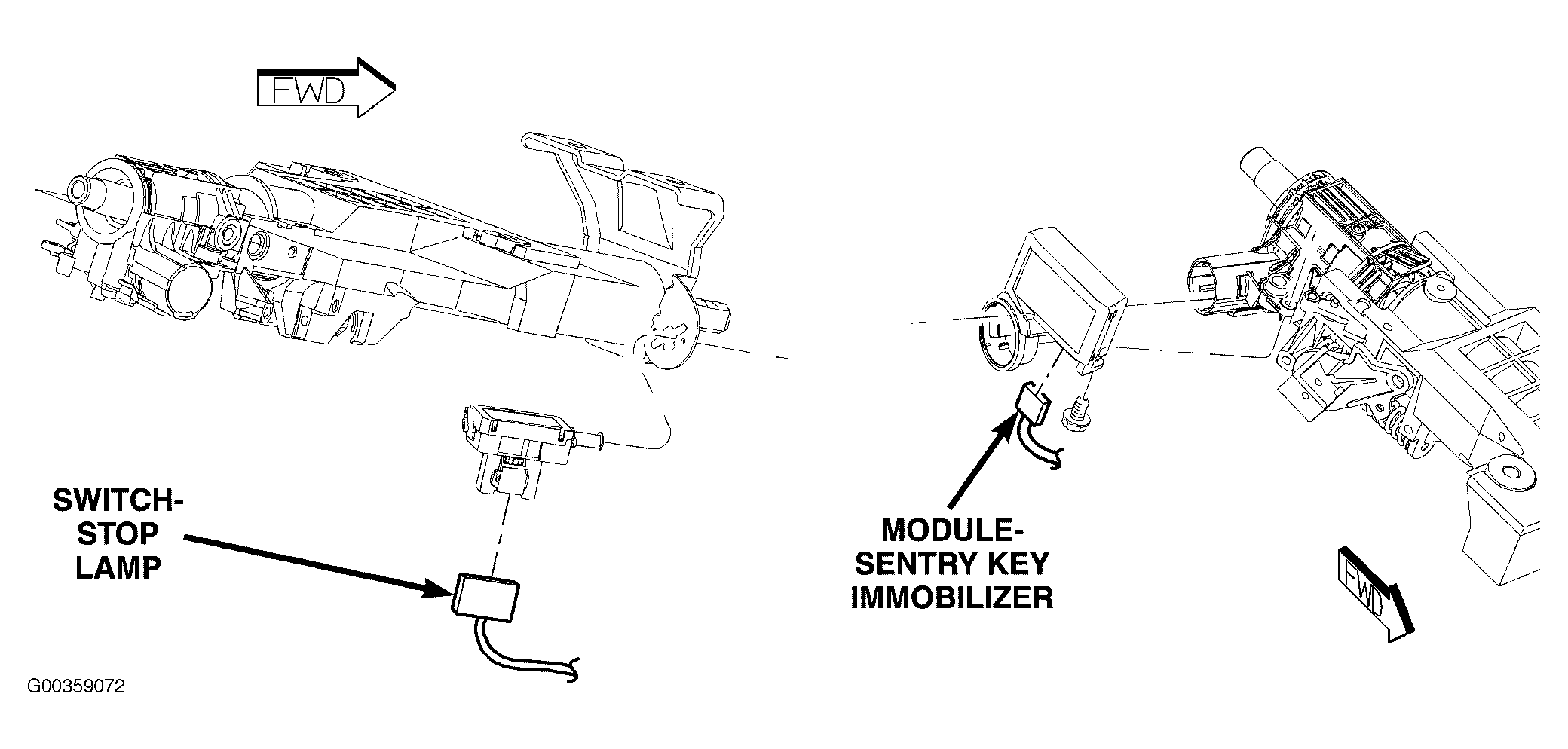

| Sentry Key Immobilizer Module | Right side of steering column. See Figure. |

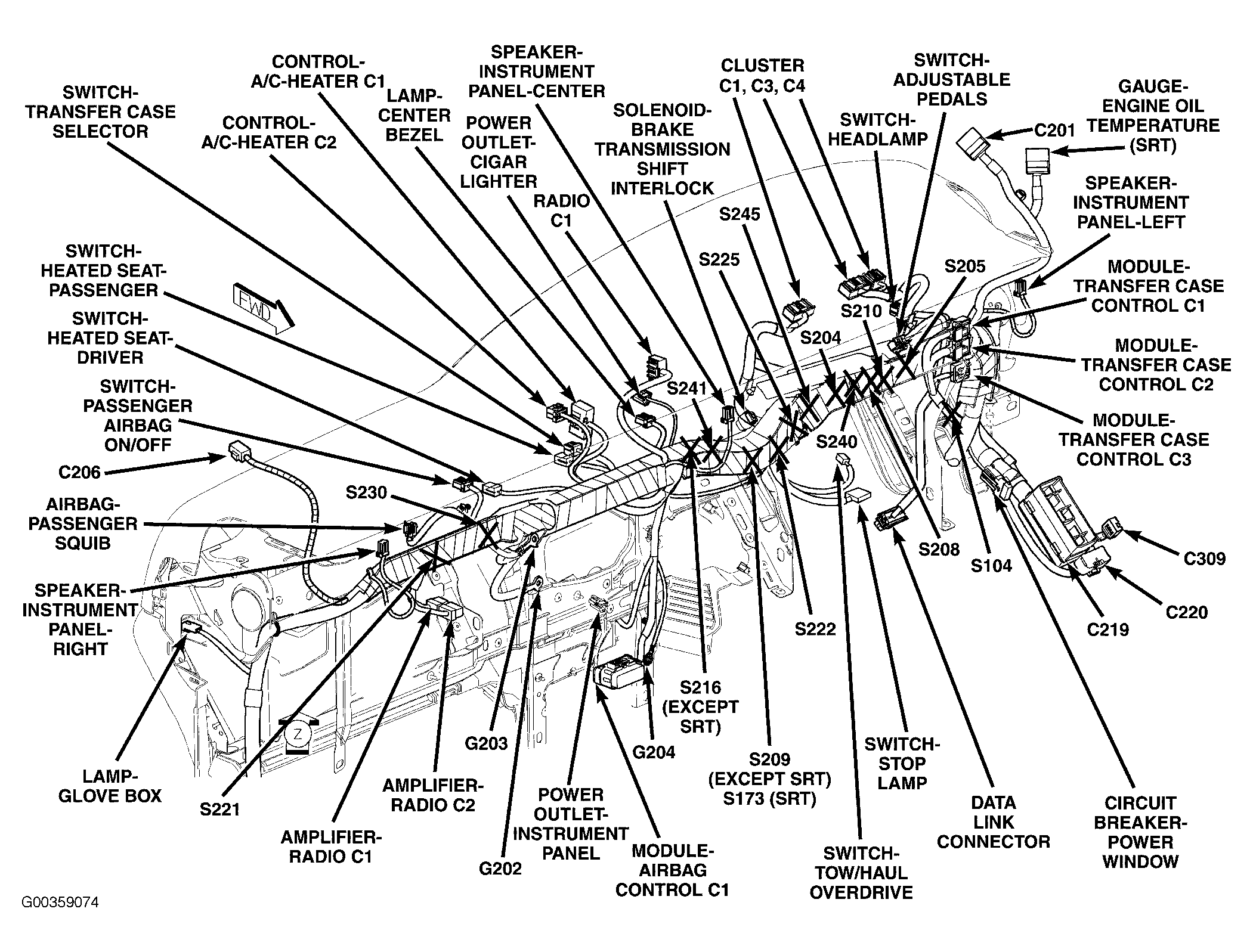

| Transfer Case Control Module | On left end of dash. See Figure. |
