Antenna Module - Export: Removal
WARNING: This page is about a different car, the 2005 Dodge Grand Caravan, 2005 Dodge Caravan, and 2005 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.

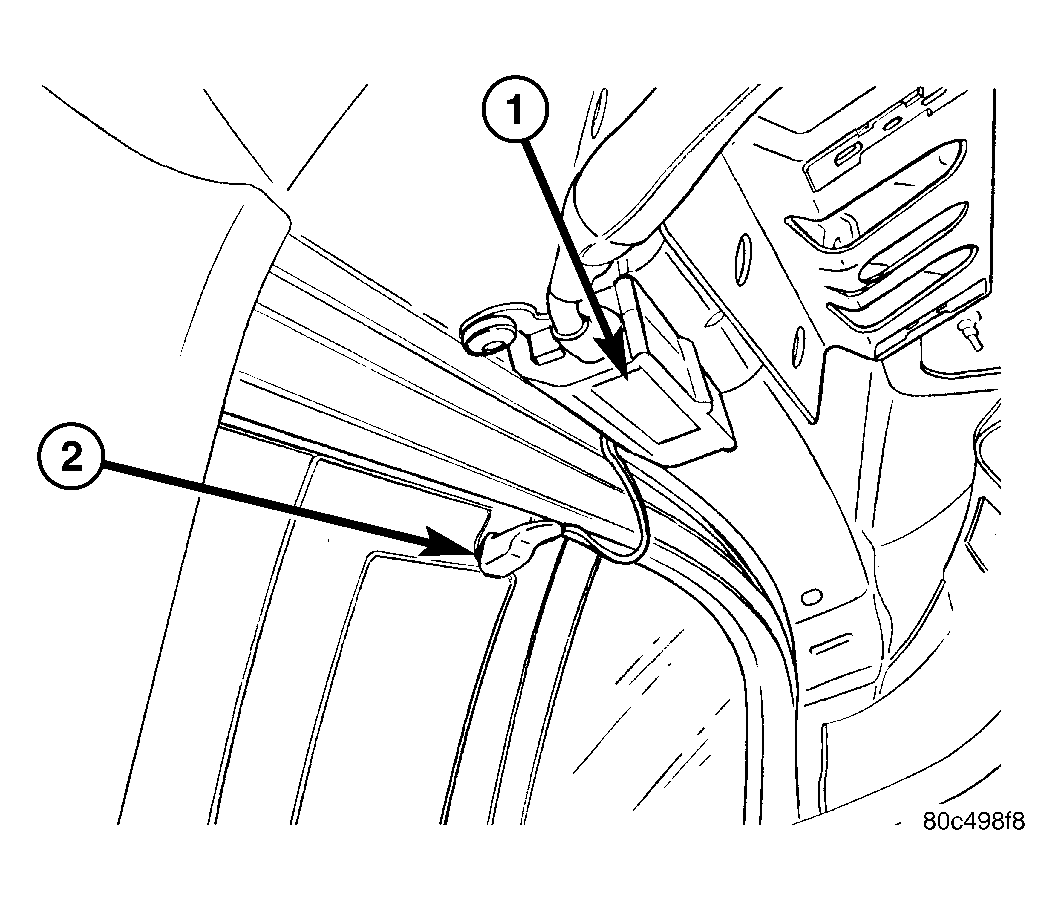

- Lower headliner as necessary to access antenna module. See Fig 1.
1 - ANTENNA MODULE 2 - ANTENNA MODULE CONNECTOR - Disconnect antenna coax cable lead and electrical harness connector from antenna module.
- Disconnect the antenna module connector from the quarter glass.
- Remove the mounting screw and the antenna module.
