Section 170 (Cruise Control Systems): Servo: Removal

WARNING: This page is about a different car, the 2005 Dodge Grand Caravan, 2005 Dodge Caravan, and 2005 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

Release hood latch and open hood.
Disconnect the negative battery cable.

Disconnect the throttle and speed control cable ends from throttle body. See Fig 1.

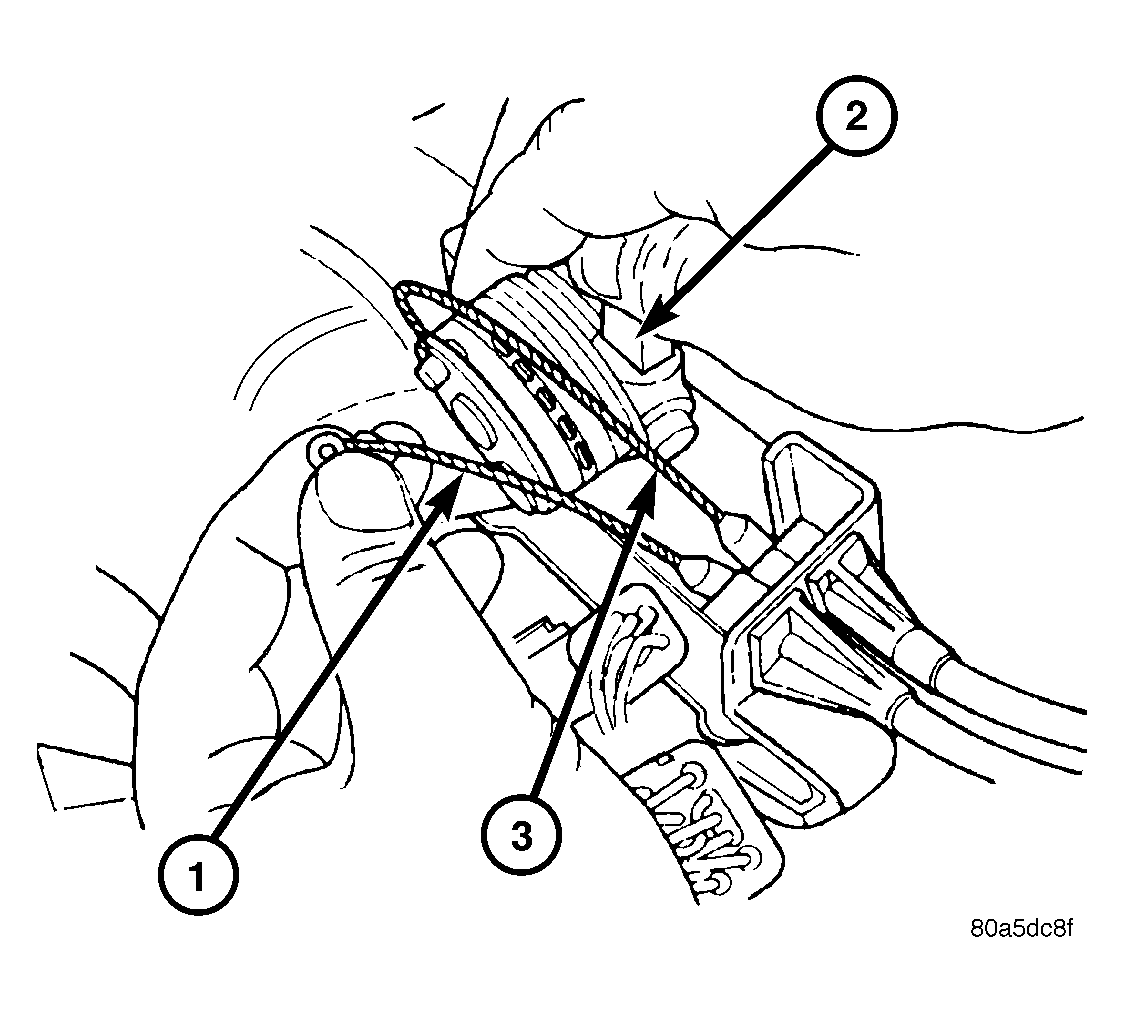

Fig 1: Speed Control Cable End

Courtesy of DAIMLERCHRYSLER CORP.

1 - SPEED CONTROL VACUUM HOSE

2 - THROTTLE BODY

3 - SPEED CONTROL CABLE

Depress lock tabs holding speed control and throttle cable casing to cable mount bracket.
Disconnect vacuum line from speed control servo that leads to the battery tray/vacuum reservoir.
Remove battery tray/vacuum reservoir, refer to BATTERY SYSTEM for more information. See Fig 2.

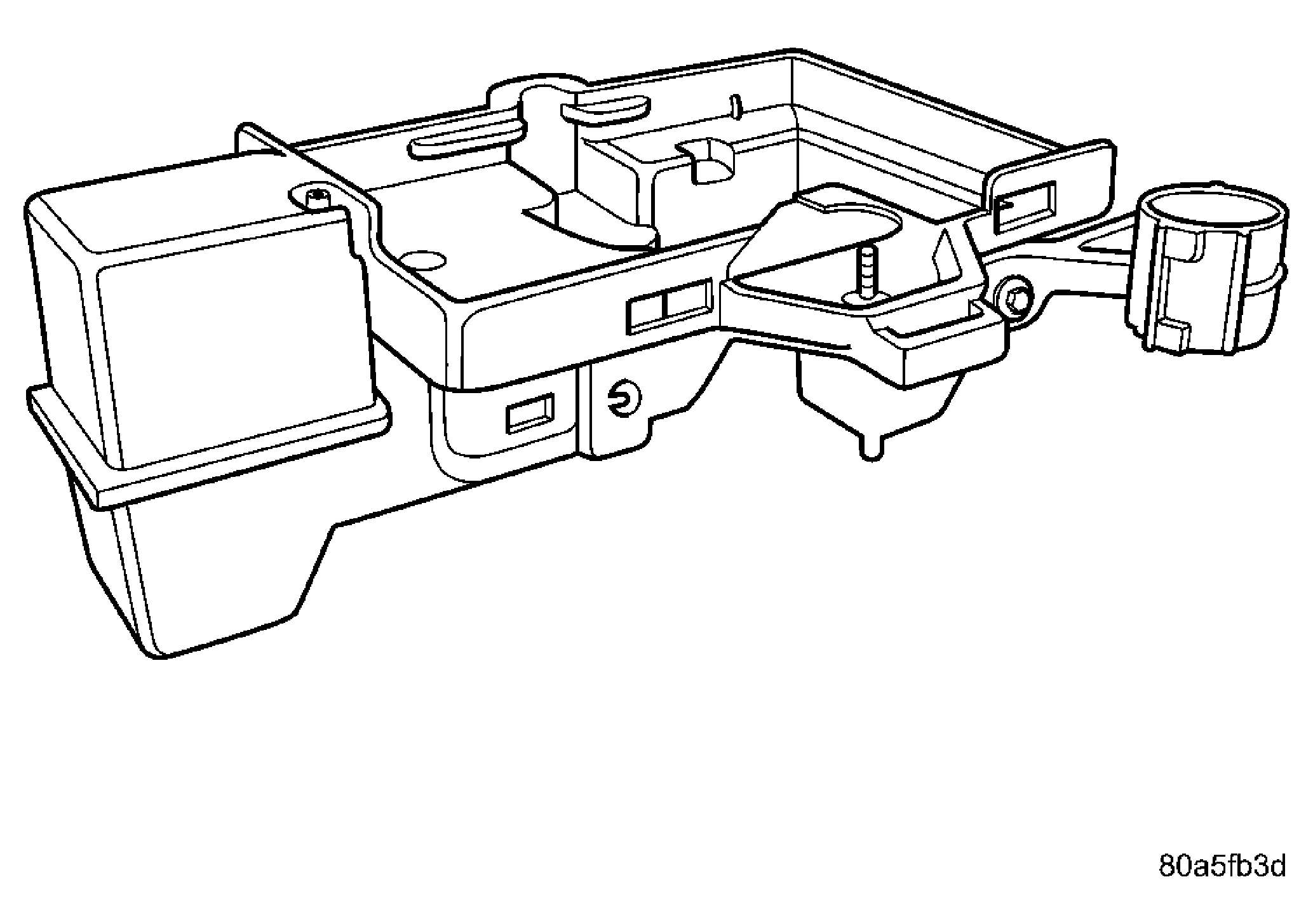

Fig 2: BATTERY TRAY/VACUUM RESERVOIR
Courtesy of DAIMLERCHRYSLER CORP.
Remove speed control servo and bracket. See Fig 3.

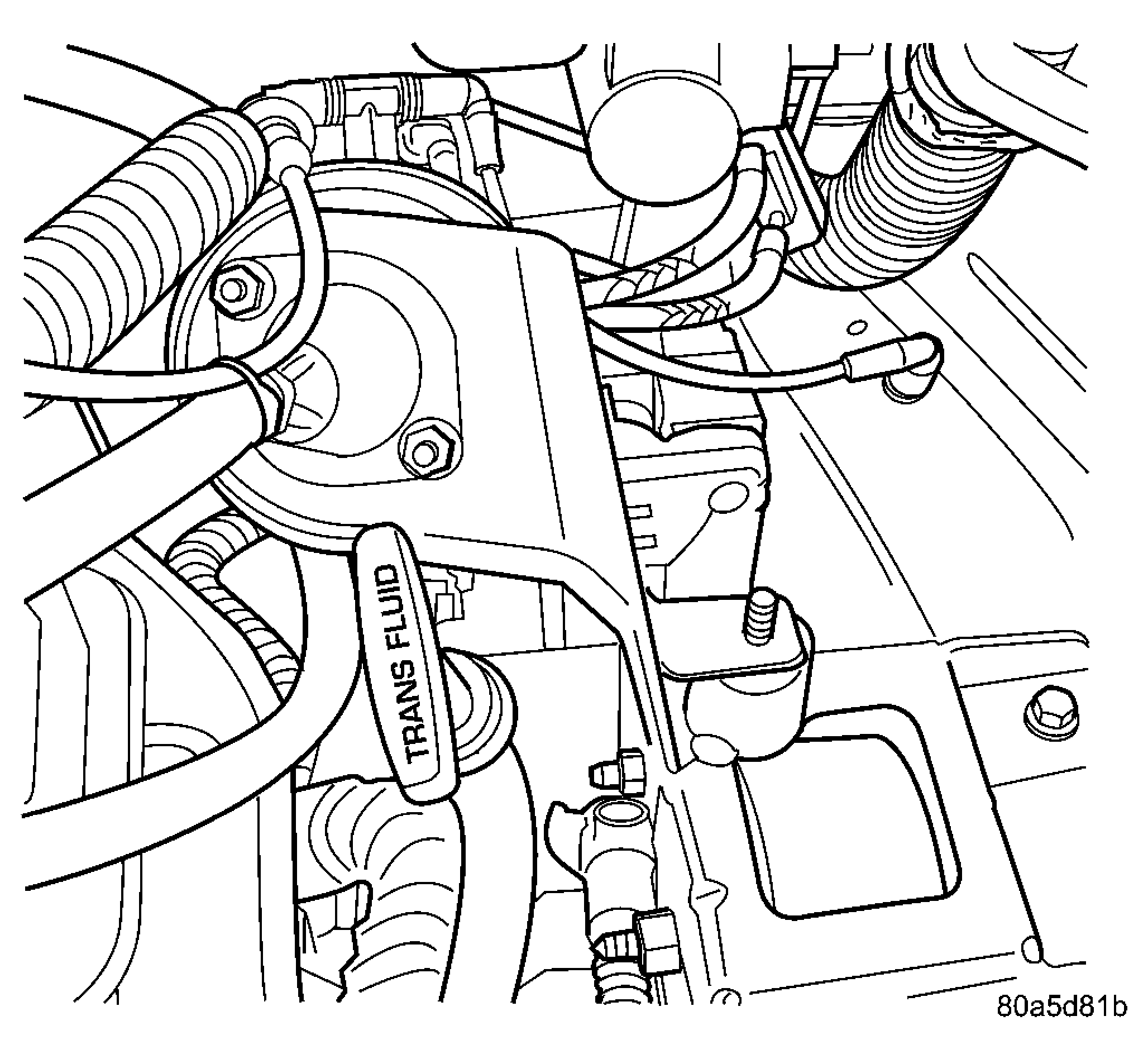

Fig 3: SPEED CONTROL SERVO
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect wire connector from speed control servo.
Remove speed control servo.
