Vacuum Gauge Reading Examples

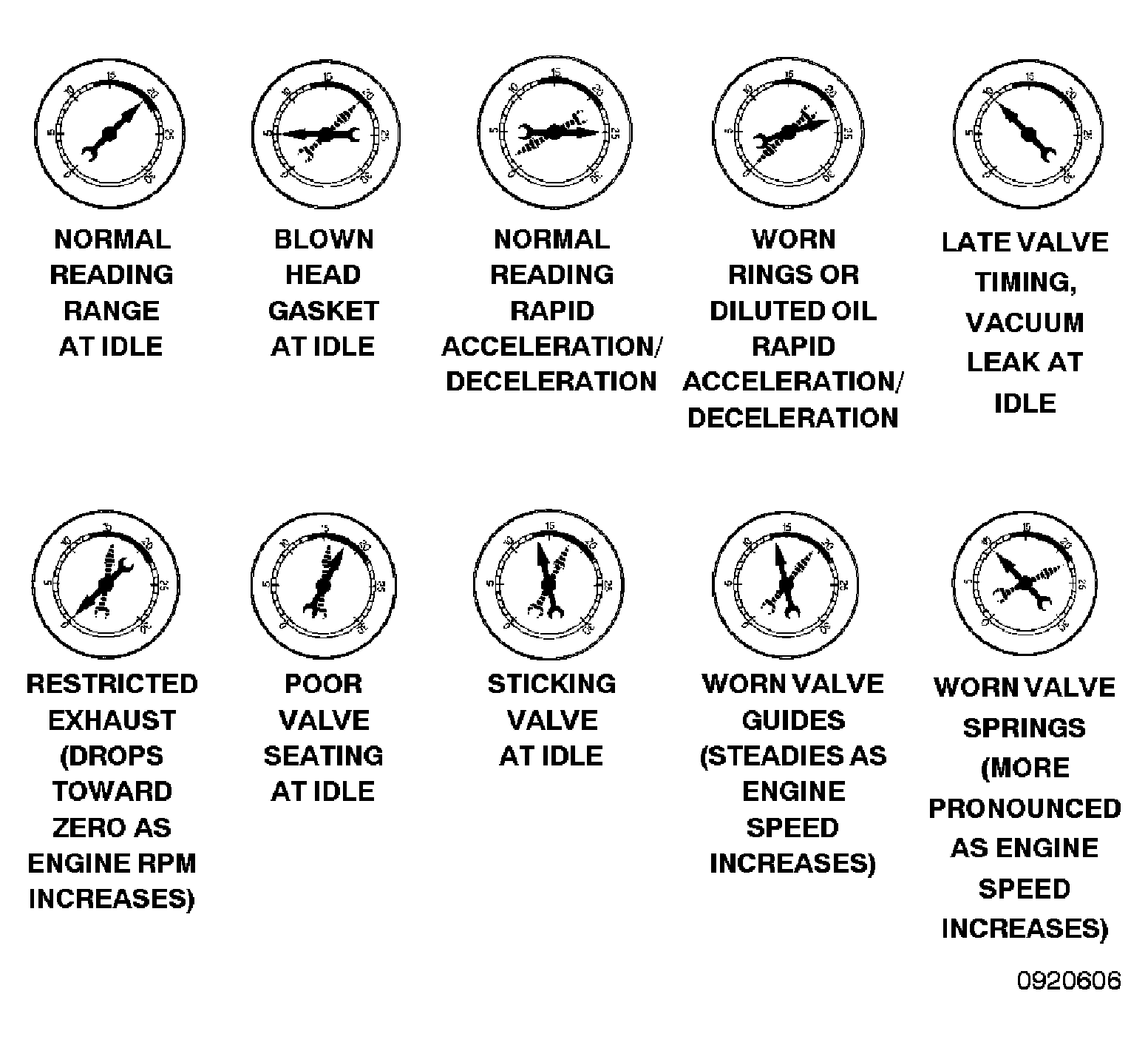

Fig 1: Vacuum Gauge Reading Chart
G04548977Courtesy of DAIMLERCHRYSLER CORP.
