Automatic Transmission Diagnostic Procedures
›
Connector PINOUTS
›
Integrated Power Module C6 - Gray 12 Way
Integrated Power Module C6 - Gray 12 Way

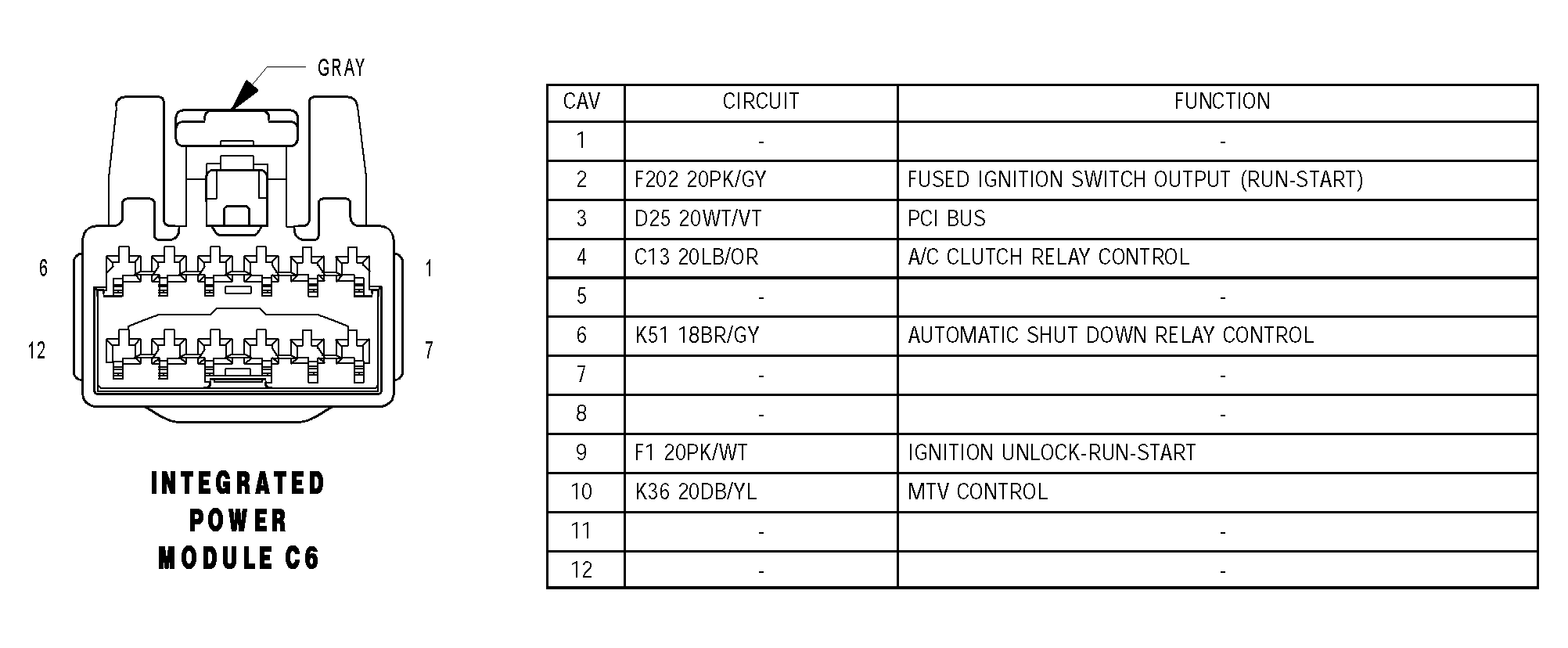

Fig 1: Identifying Integrated Power Module C6 Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
