Powertrain Control Module C2 - Black/Orange 38 Way

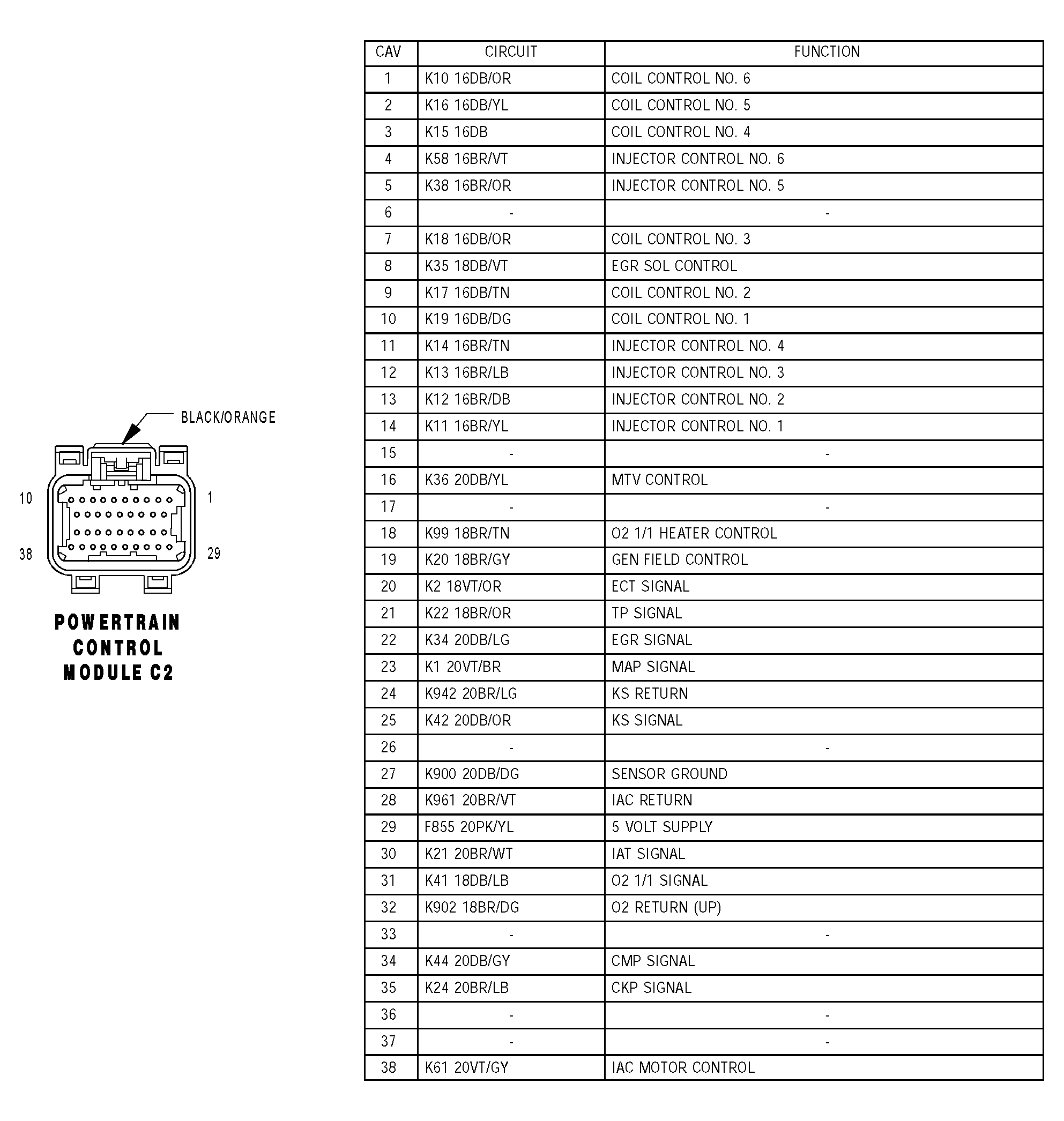

Fig 1: Identifying Powertrain Control Module C2 Connector Pinouts
G04528427Courtesy of DAIMLERCHRYSLER CORP.
