Powertrain Control Module C3 - Black/Natural 38 Way

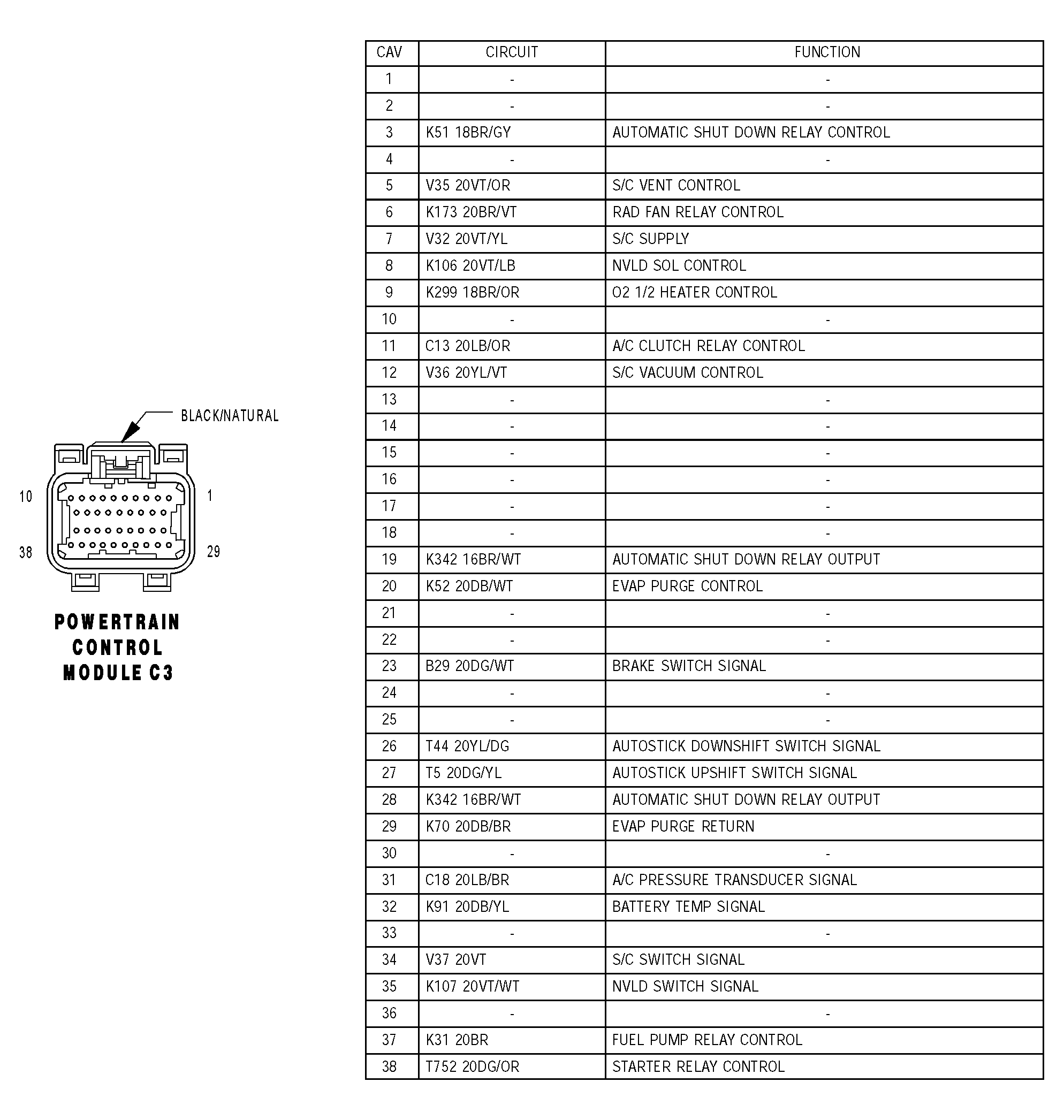

Fig 1: Identifying Powertrain Control Module C3 Connector Pinouts
G04528428Courtesy of DAIMLERCHRYSLER CORP.
