Transmission Temperature Sensor
Transmission Temperature Sensor

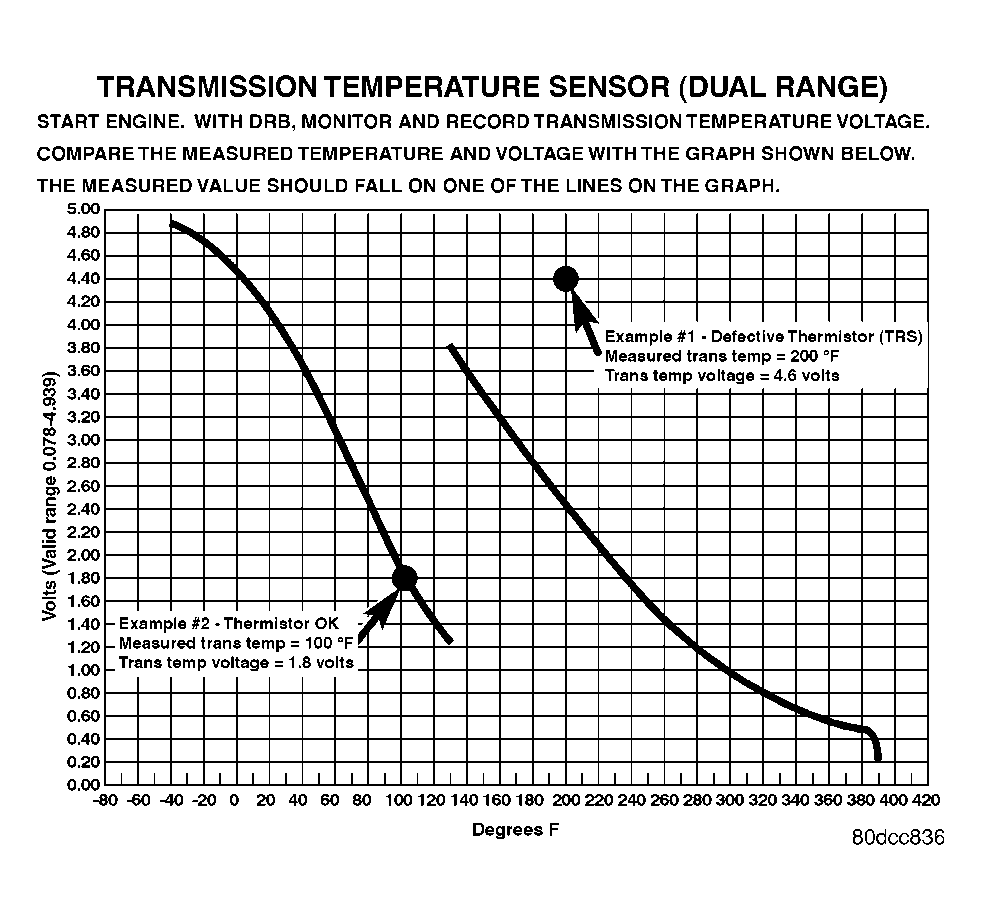

Fig 1: Transmission Temperature Sensor Temperature And Voltage Graph
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
