Cruise Control Systems: Cable: Installation

Route cable. See Fig 1.
Slide speed control cable into bracket.

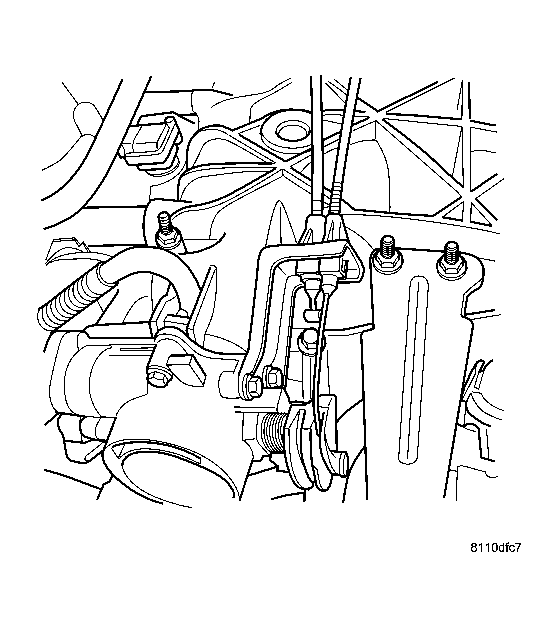

Fig 1: Cable Routing
Courtesy of DAIMLERCHRYSLER CORP.
Connect the vacuum line connection at rear of intake manifold.
Install clip attaching cable to servo. See Fig 2.

Fig 2: Cable Clip
Courtesy of DAIMLERCHRYSLER CORP.
Install two nuts attaching mounting bracket and speed control cable to servo. See Fig 3.
Tighten nuts to 6.8 N.m (60 in. lbs.).

Fig 3: Cable To Servo Mounting
Courtesy of DAIMLERCHRYSLER CORP.
Connect electrical connectors and vacuum hose.
Install speed control cable to throttle cam by sliding clasp into hole. See Figure.
Install the servo bracket bolt.
Tighten bolt to 5.6 N.m (50 in. lbs.).
Connect negative battery cable.
