Cruise Control Systems: Servo: Installation

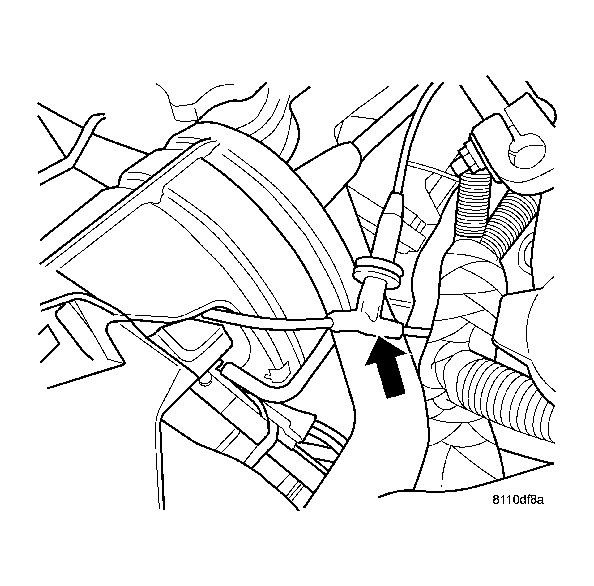

Install clip attaching cable to servo. See Fig 1.

Fig 1: Cable Clip
Courtesy of DAIMLERCHRYSLER CORP.

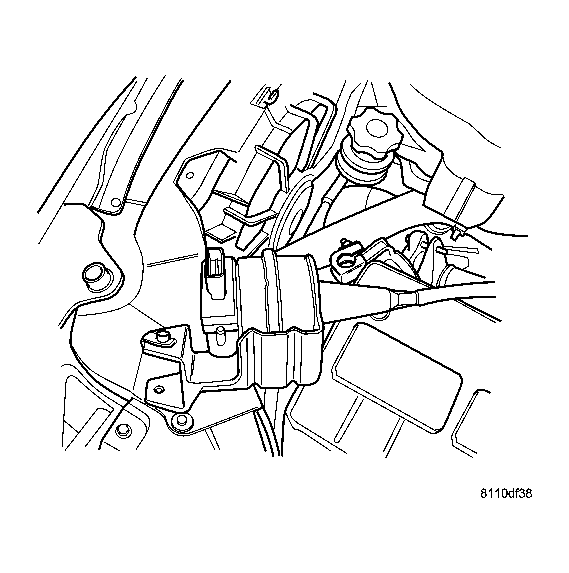

Install two nuts attaching mounting bracket and speed control cable to servo. See Fig 2.

Fig 2: Cable To Servo Mounting
Courtesy of DAIMLERCHRYSLER CORP.
Tighten nuts to 6.8 N.m (60 in. lbs.).
Connect electrical connectors and vacuum hose. See Fig 3.

Fig 3: Vacuum Hose
Courtesy of DAIMLERCHRYSLER CORP.
Install the servo bracket bolt. See Fig 4
Tighten bolt to 5.6 N.m (50 in. lbs.).
Connect the negative battery cable.

Fig 4: Servo & Bracket
Courtesy of DAIMLERCHRYSLER CORP.
