Knock Sensor: Removal: 3.5L

Fig 1: KNOCK SENSOR CONNECTOR
GC0002372Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect the negative battery cable.
  2. Remove the upper intake manifold. Refer to REMOVAL - UPPER INTAKE MANIFOLD .
  3. Disconnect the electrical connector. See Fig 1.

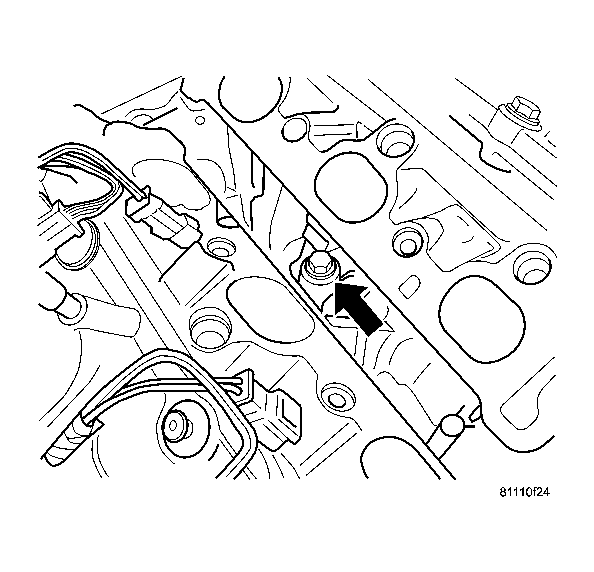

    Fig 2: KNOCK SENSOR LOCATION
    GC0002374Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the knock sensor. See Fig 2.
