PCV Valve: Removal

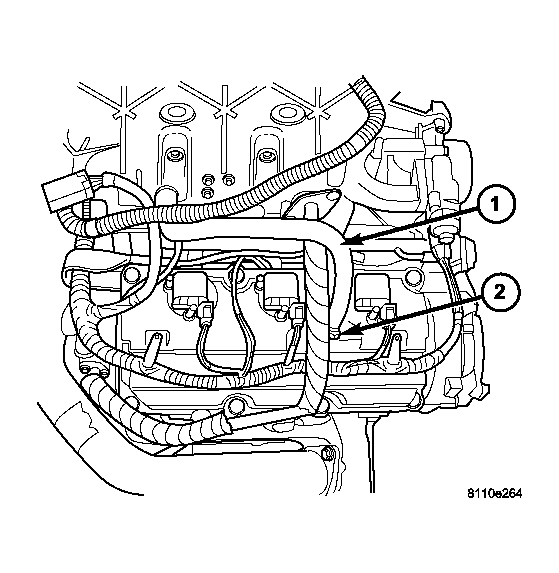

Fig 1: PCV VALVE AND HOSE
GC0001492Courtesy of DAIMLERCHRYSLER CORP.
1 - PCV Hose
2 - PCV valve
  1. Remove hose from PCV valve. The valve is on the rear valve cover. See Fig 1.
  2. Unscrew the PCV valve.
  3. Remove PCV valve.
