Pacifica Limited
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Powertrain Diagnostic Procedures
›
Connector PINOUTS
›
Data Link Connector - Black 16 Way
Data Link Connector - Black 16 Way

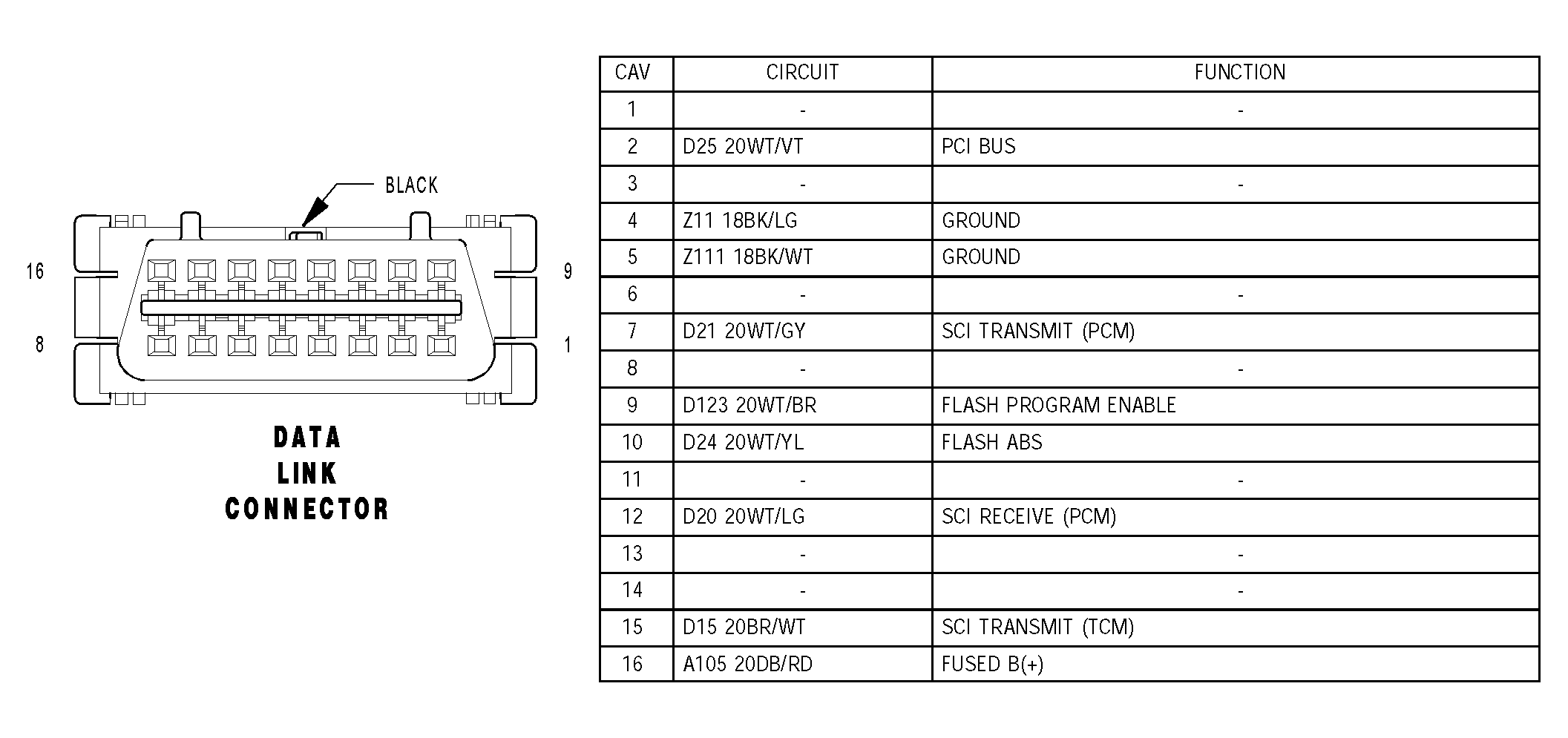

Fig 1: Identifying Data Link Connector Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
