Fuel Pump Module - Black 6 Way

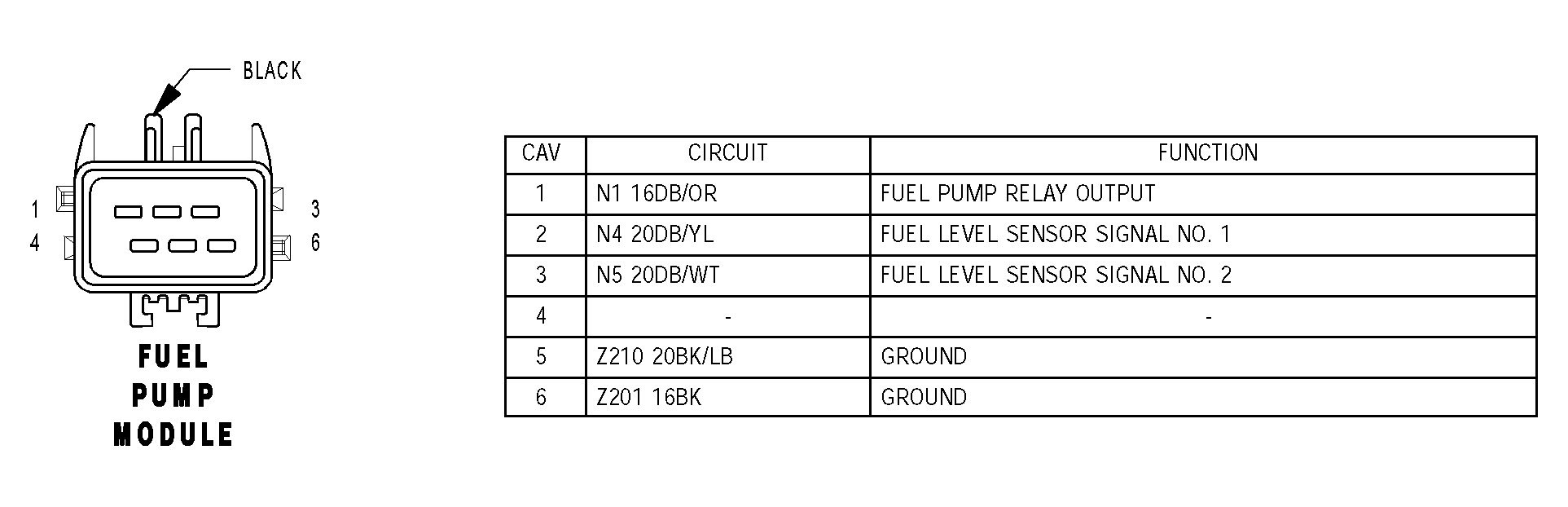

Fig 1: Identifying Fuel Pump Module Connector Pinouts
G04528113Courtesy of DAIMLERCHRYSLER CORP.
