SKREEM Module - Black 6 Way

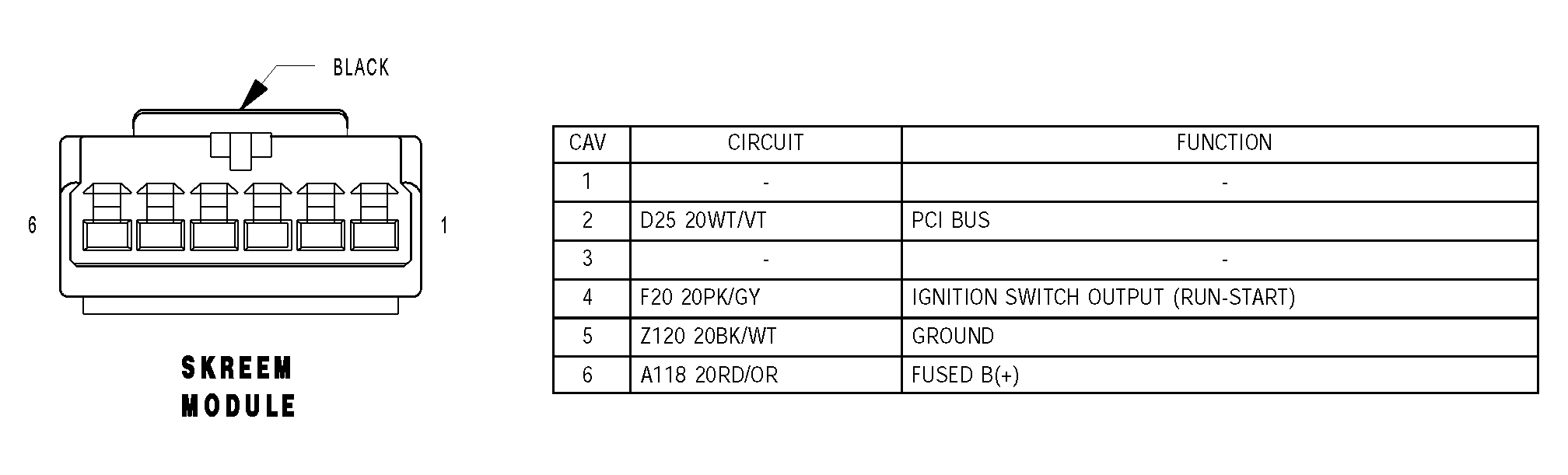

Fig 1: Identifying Scream Module Connector Pinouts
G04528129Courtesy of DAIMLERCHRYSLER CORP.
