Throttle Position Sensor - Gray 3 Way
Throttle Position Sensor - Gray 3 Way

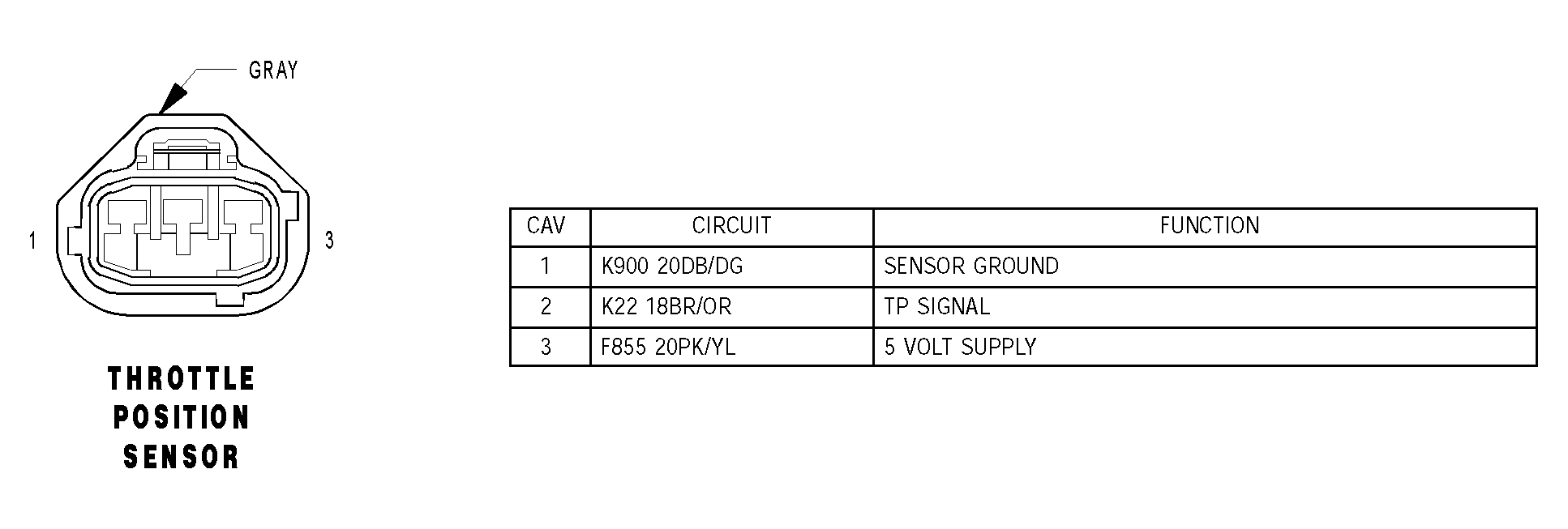

Fig 1: Identifying Throttle Position Sensor Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
