Cs 3.5L/3.8L

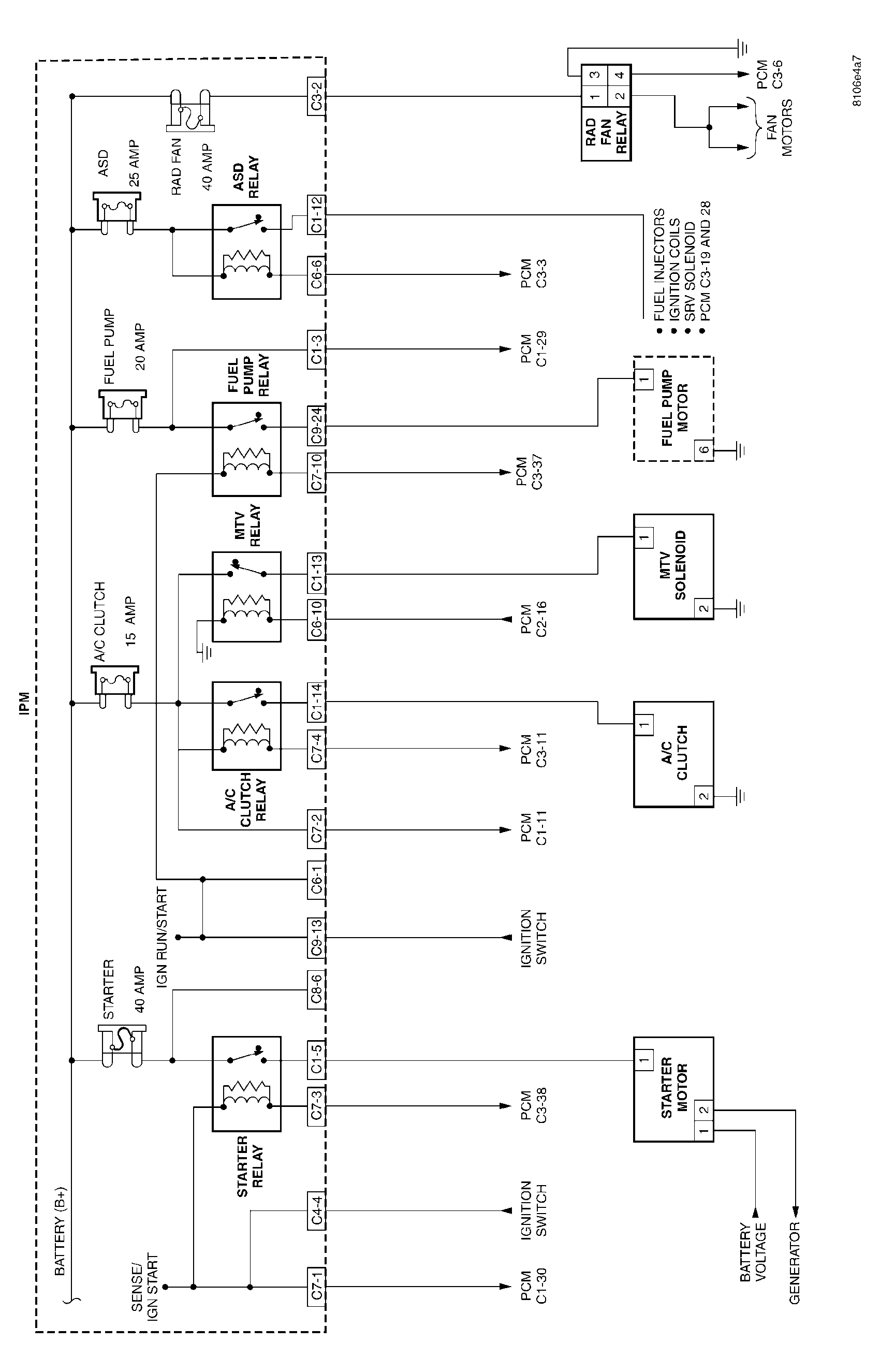

Fig 1: CS 3.5L/3.8L - Schematic Diagrams (1 Of 3)

G04528134

Courtesy of DAIMLERCHRYSLER CORP.

Fig 1: CS 3.5L/3.8L - Schematic Diagrams (2 Of 3)

G04528135

Courtesy of DAIMLERCHRYSLER CORP.

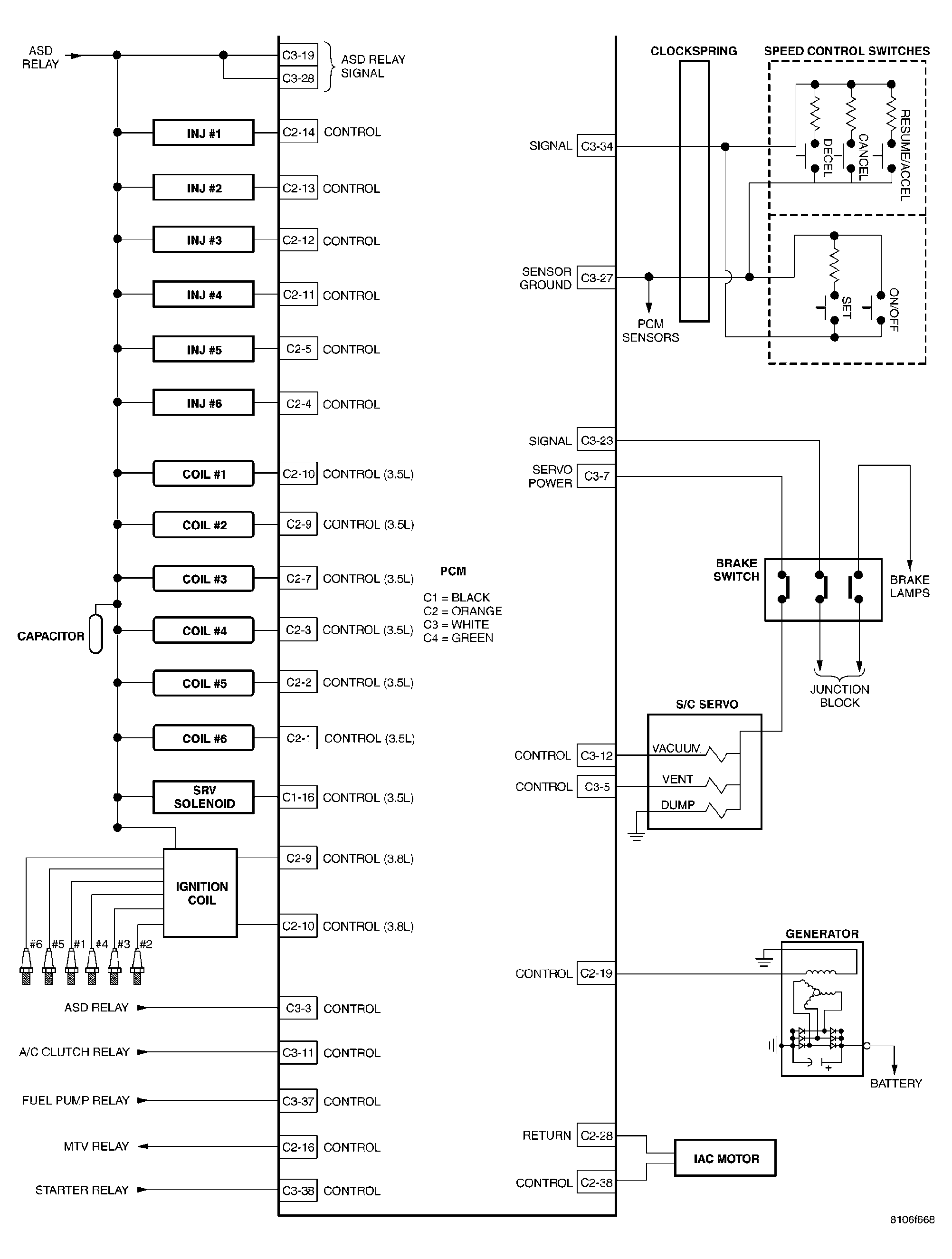

Fig 1: CS 3.5L/3.8L - Schematic Diagrams (3 Of 3)

G04528136

Courtesy of DAIMLERCHRYSLER CORP.
