Engine Coolant Temp Sensor: Installation

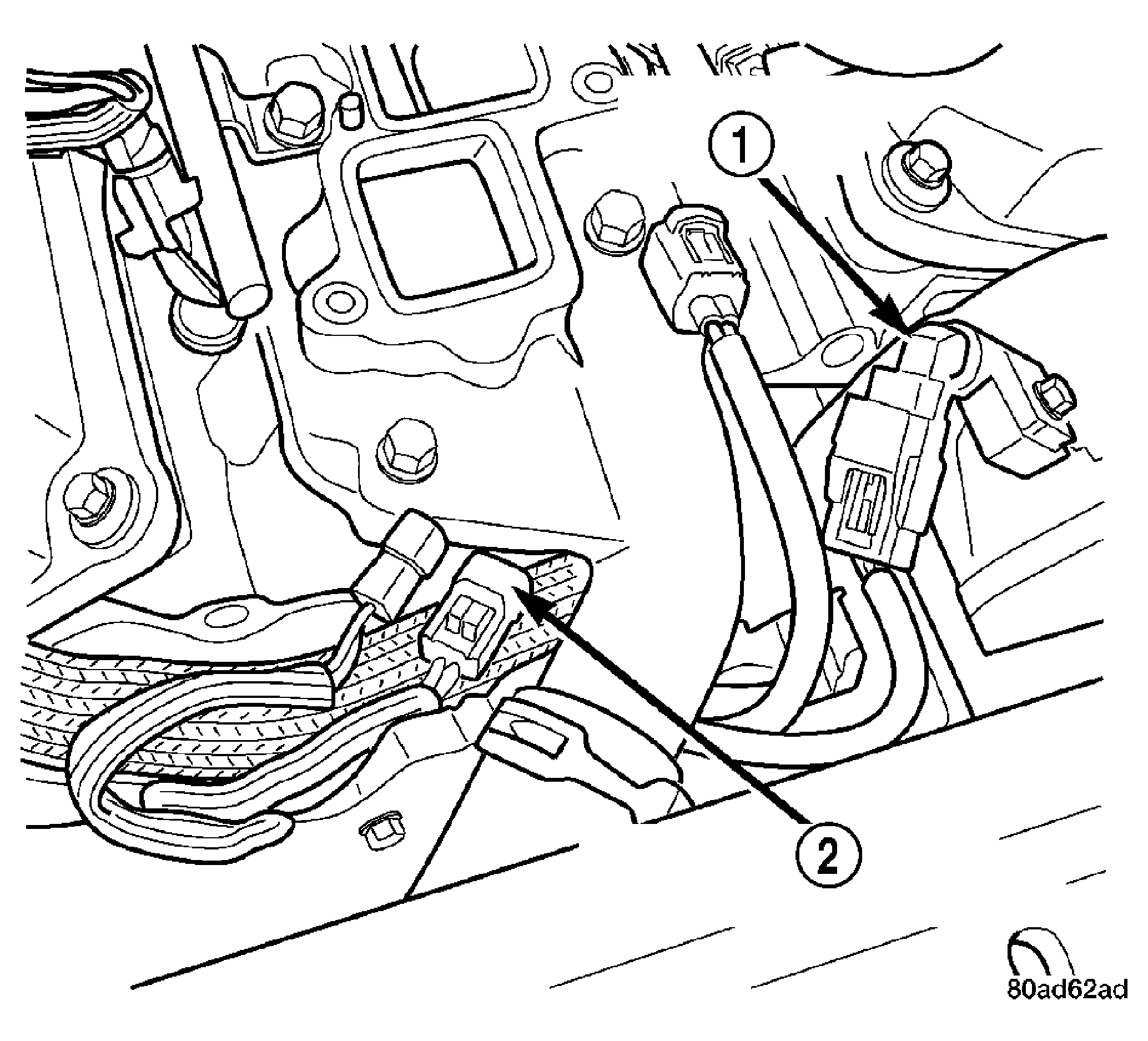

  1. Install engine coolant temperature sensor. See Figure. Tighten sensor to 7 N.m (60 in. lbs.).
  2. Connect electrical connector to sensor.
  3. Fill cooling system. (Refer to COOLING - STANDARD PROCEDURE)
