Disassembly And Assembly: Notes

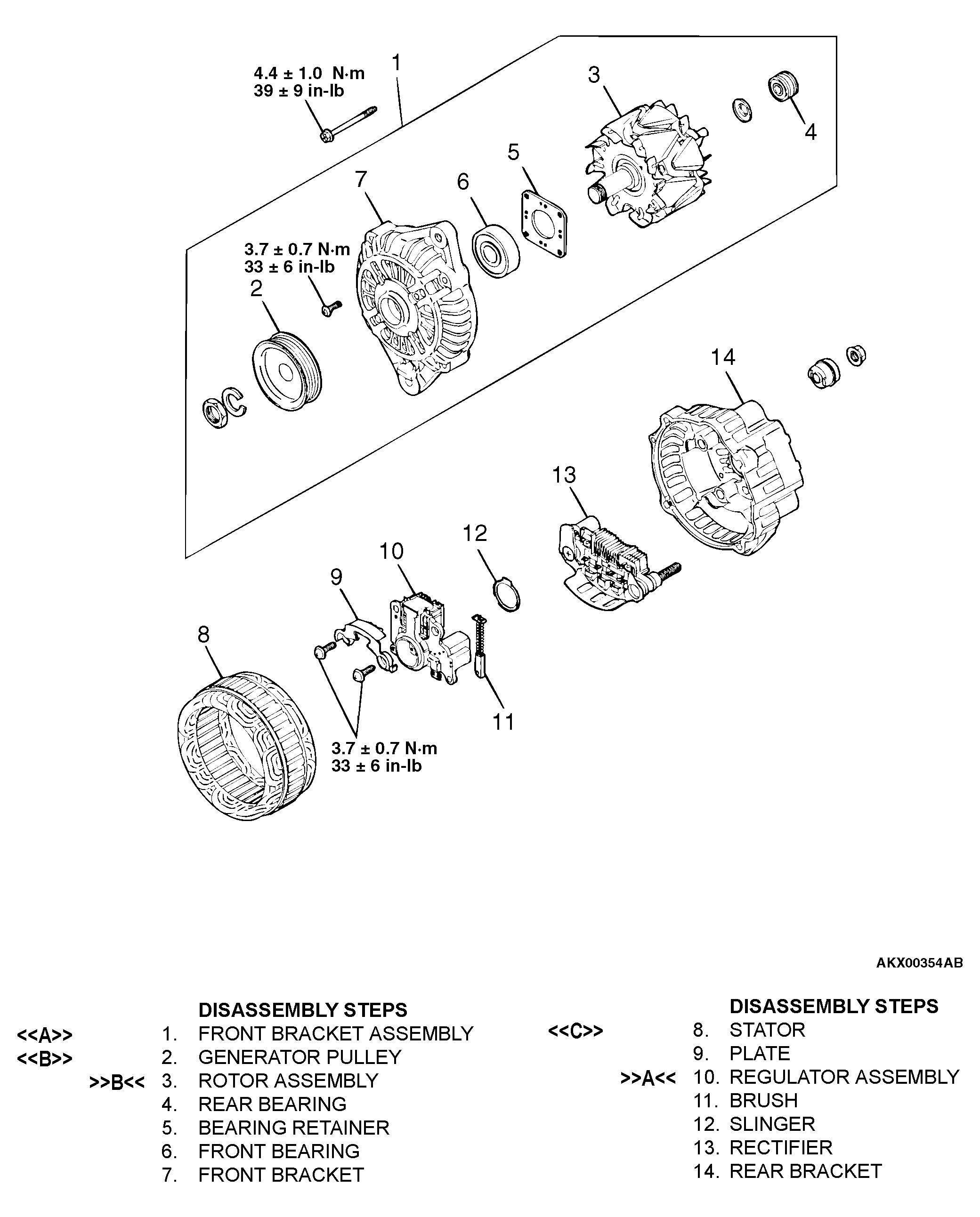

Fig 1: Exploded View Of Generator Components
G04537429Courtesy of DAIMLERCHRYSLER CORPORATION
