Power Window Relay Check

TESTER CONNECTION & SPECIFIED CONDITION

BATTERY VOLTAGE	TESTER CONNECTION	SPECIFIED CONDITION
Not applied	4 - 5	Open circuit
Connect terminal No. 1 to the positive battery terminal. Connect terminal No. 3 to the negative battery terminal.	4 - 5	Less than 2 ohms

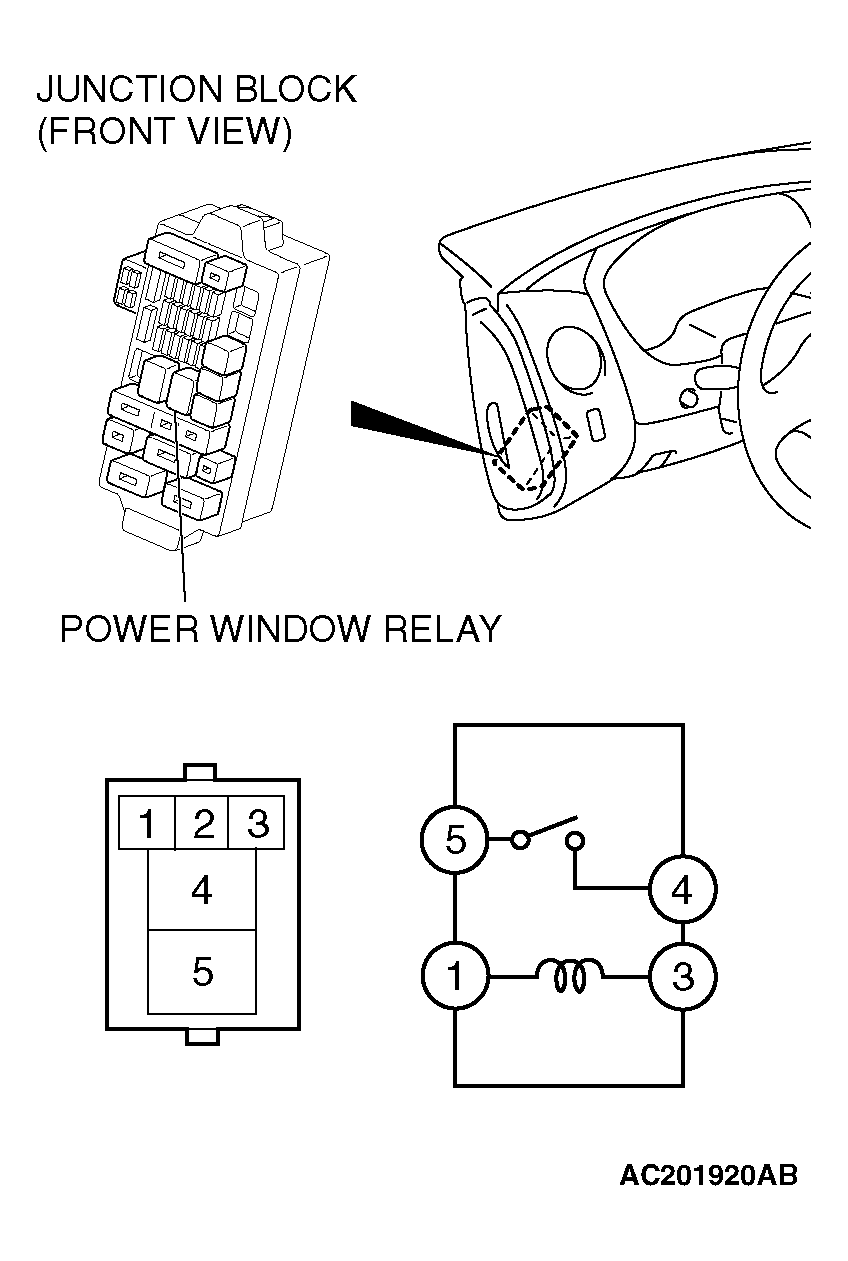

Fig 1: Checking Power Window Relay

Courtesy of DAIMLERCHRYSLER CORPORATION
