Stator Check

Check the continuity between the coil lead. If there is no continuity, replace the stator.

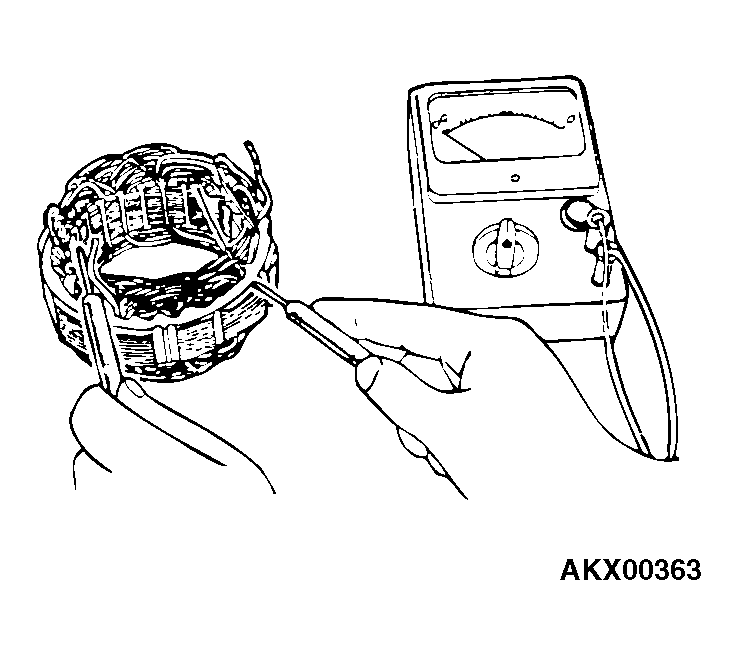

Fig 1: Checking Continuity Between Coil Lead
Courtesy of DAIMLERCHRYSLER CORPORATION
Check the continuity between the coil and the core. If there is continuity, replace the stator.

Fig 2: Checking Continuity Between Coil And Core
Courtesy of DAIMLERCHRYSLER CORPORATION
