Disassembly And Assembly

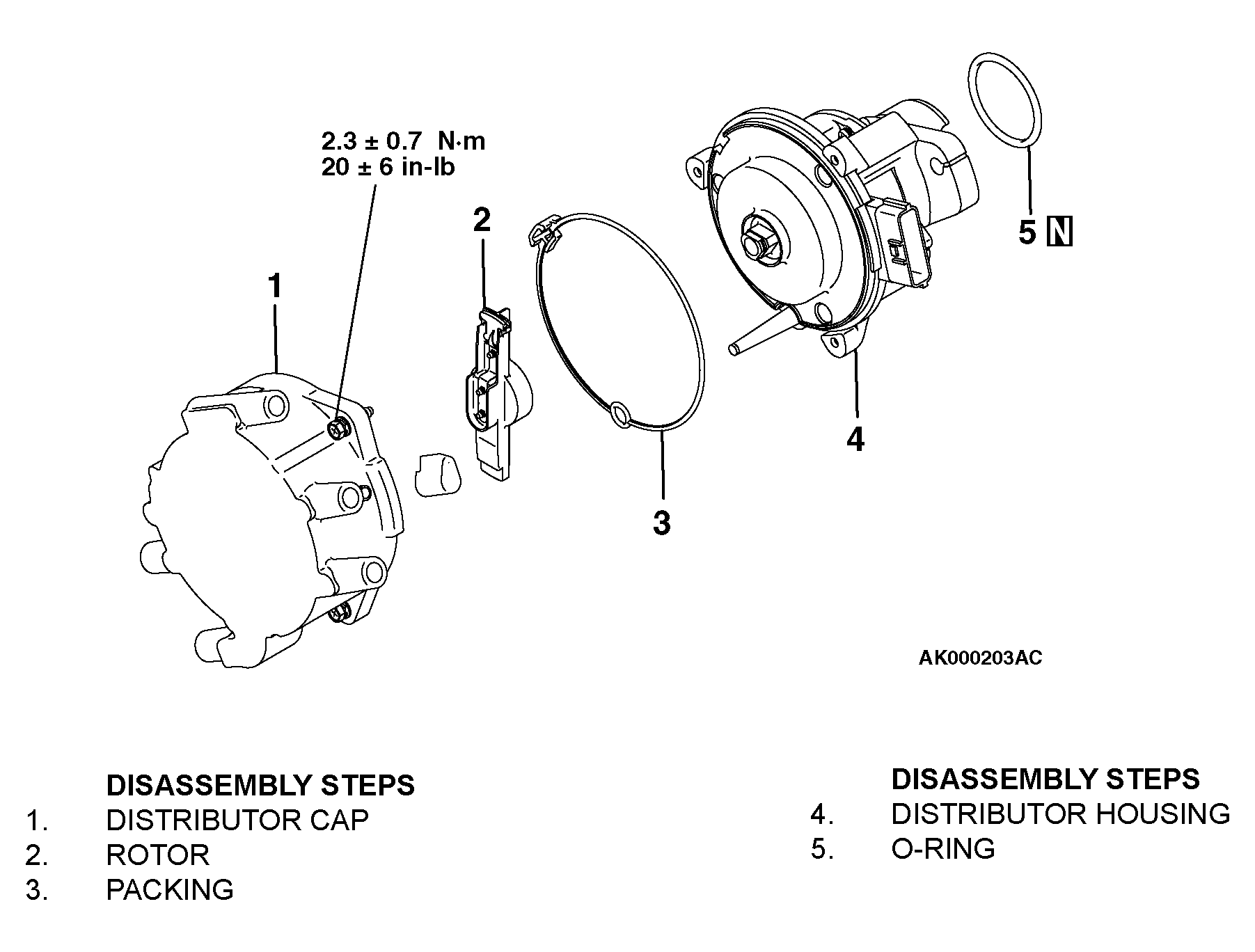

Fig 1: Exploded View Of Ignition System And Torque Specification
G04537482Courtesy of DAIMLERCHRYSLER CORPORATION
