Powertrain Diagnostic Procedures - Except Coupe
›
Connector PINOUTS
›
Powertrain Control Module C3- Black 38 Way
Powertrain Control Module C3- Black 38 Way

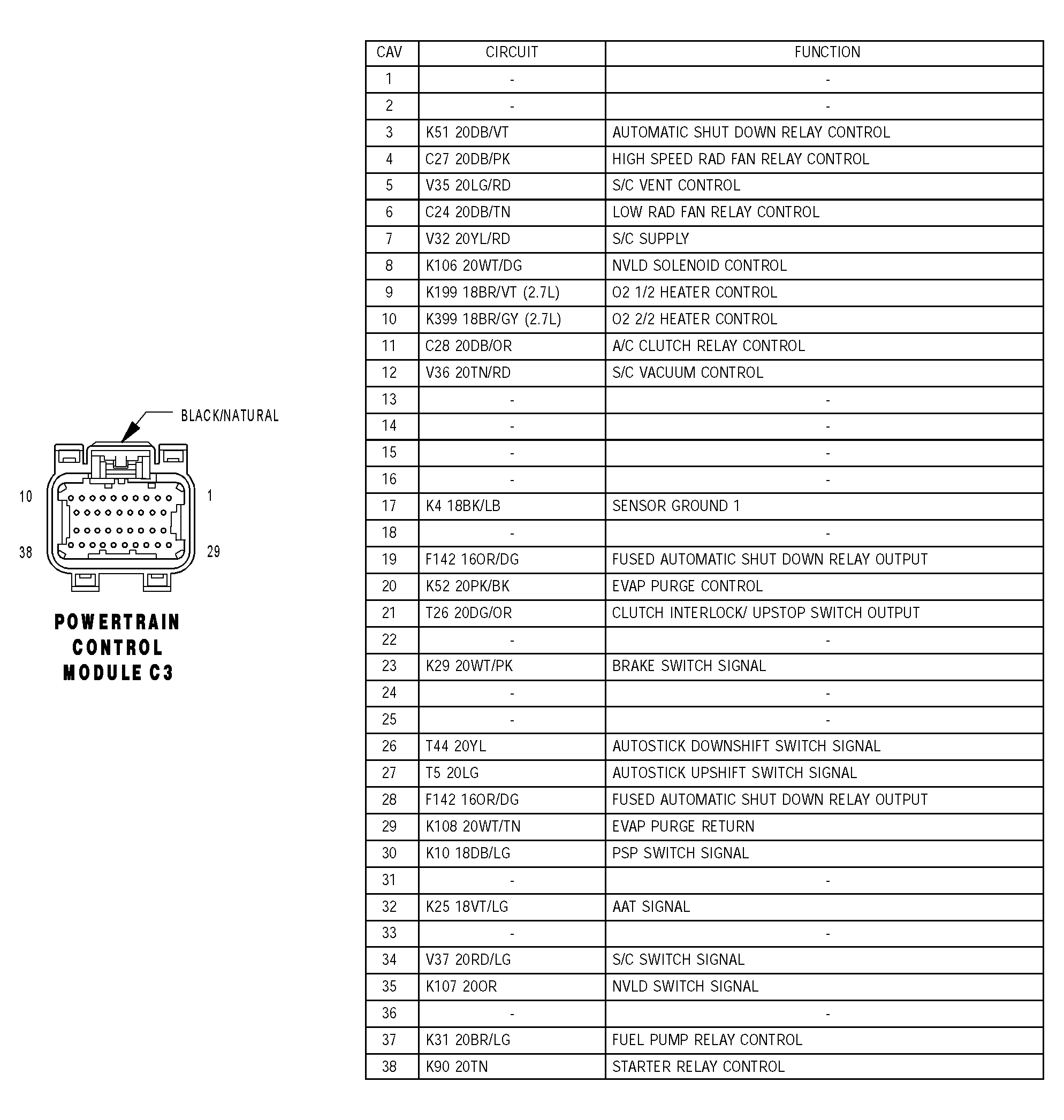

Fig 1: Powertrain Control Module C3 - Connector Pinout
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
